| 1 |

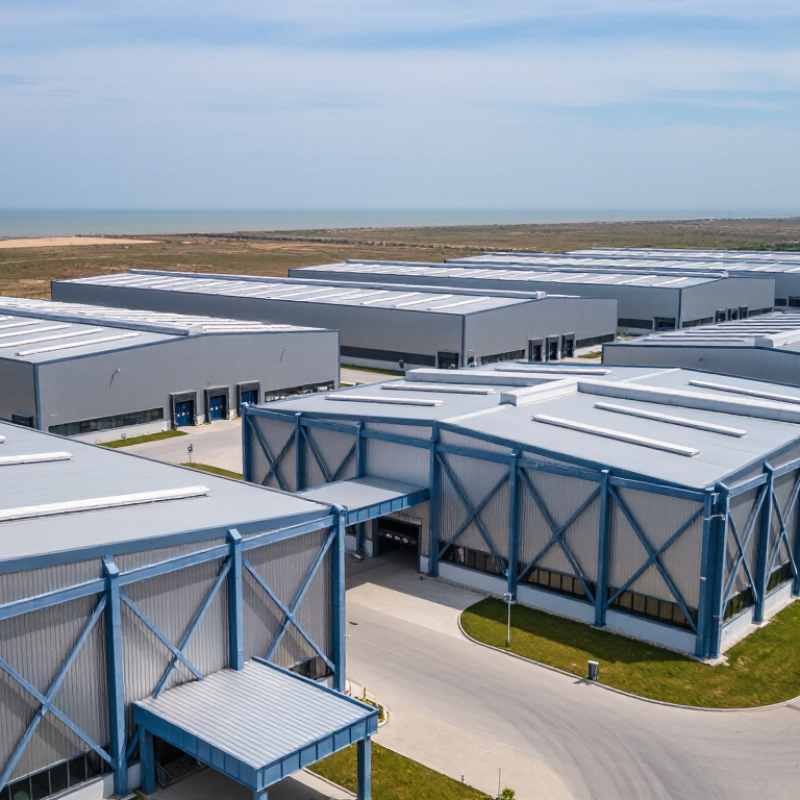

Low-rise braced steel warehouse with regular plan |
Concentrically braced frames with braced roof diaphragm |
24–36 ft |
25–35 ft |
Compact rectangular plan; low torsional irregularity |
Use balanced bracing lines in both principal directions; provide ductile brace connections and continuous load paths to foundations. |
Design roof and wall components for site-specific ultimate wind pressures, uplift, sliding, and overturning; reinforce edge and corner zones. |
AISC 360 strength and stability checks; AISC 341 applies where seismic force-resisting systems require seismic detailing under the adopted building code. |
Strong candidate for a FEMA P-695-style archetype study when the selected braced-frame system has an approved seismic response-factor basis. |
Very High |
| 2 |
Steel braced warehouse with redundant perimeter frames |
Multiple concentric braced frames distributed around the perimeter |
24–40 ft |
25–40 ft |
Symmetrical plan with short diaphragm force-transfer paths |
Redundancy reduces dependence on one frame line; check diaphragm chords, collectors, brace buckling, and anchorage. |
Multiple resistance lines improve robustness against wind-induced load redistribution and local component damage. |
Verify member slenderness, effective length, connection strength, diaphragm design, and foundation anchorage under AISC 360 load combinations. |
Suitable for nonlinear collapse assessment if the archetype reflects the actual brace configuration, detailing, mass, and load path. |
Very High |
| 3 |
Dual-system steel warehouse |
Moment frames combined with concentrically or eccentrically braced frames |
28–45 ft |
30–45 ft |
Moderate plan dimensions with evenly distributed stiffness |
Combines ductility and redundancy; control torsion and differential drift between moment and braced frames. |
Moment-frame continuity supports alternate load paths; brace lines and roof diaphragm must resist concentrated wind reactions. |
Use AISC 360 for general steel design and AISC 341 where seismic detailing is mandated; verify compatibility of both lateral systems. |
Potentially applicable, but the P-695 model must represent the complete dual-system behavior and the adopted design coefficients. |
Very High |
| 4 |
Steel moment-frame warehouse with rigid roof diaphragm |
Special or intermediate steel moment frames, as permitted by the adopted code |
20–35 ft |
25–40 ft |
Regular rectangular plan; limited re-entrant corners |
Provides ductile frame action when properly detailed; check panel zones, beam-to-column connections, drift, and P-delta effects. |
Continuous frame action can resist substantial lateral load, but cladding, roof fasteners, and column bases remain critical wind components. |
AISC 360 governs general design; AISC 341 and AISC 358 may be required for seismic systems and prequalified connection types. |
Applicable only when the moment-frame archetype and nonlinear modeling assumptions match the intended construction and detailing. |
High |
| 5 |
Steel portal-frame warehouse with independent braced bays |
Rigid portal frames supplemented by longitudinal bracing |
20–35 ft |
20–35 ft |
Long, narrow plan with regular frame spacing |
Provide dedicated transverse and longitudinal seismic resistance; avoid relying on cladding alone for diaphragm or bracing action. |
Portal knees, eaves, ridge connections, roof purlins, wall girts, and end walls require explicit uplift and suction checks. |
Check second-order effects, frame stability, member slenderness, connection rotation, and bracing continuity under AISC 360. |
May be evaluated through P-695 only when the portal system has a recognized seismic response basis and a representative archetype. |
High |
| 6 |
Multi-bay steel warehouse with moment end frames and braced interior bays |
Mixed lateral system with braced interior lines and moment-resisting end frames |
28–40 ft |
30–50 ft |
Large footprint divided into regular structural zones |
Coordinate diaphragm collectors and force transfer between interior braced bays and end frames; assess stiffness discontinuities. |
Interior braced bays reduce frame demand, while end frames and roof zones must be checked for high localized wind reactions. |
Use a consistent analytical model; verify load sharing, diaphragm flexibility, stability, and connection design under AISC 360. |
Requires careful archetype definition because mixed systems can produce behavior different from a single-system P-695 archetype. |
High |
| 7 |
Steel warehouse with concrete or composite diaphragm and steel frames |
Steel braced or moment frames with composite floor or concrete roof diaphragm |
24–40 ft |
25–45 ft |
Regular plan with short collector spans |
Rigid diaphragms can distribute seismic forces effectively, but collectors, chords, shear transfer, and connections need detailed design. |
Concrete or composite diaphragm adds mass and strength but increases seismic demand and requires secure edge, uplift, and support detailing. |
Design steel members under AISC 360; coordinate composite construction provisions, diaphragm design, anchorage, and adopted loading standard. |
Can support P-695 assessment when diaphragm stiffness, mass, nonlinearity, and frame interaction are included in the model. |
Moderate to High |
| 8 |
Tall-clear-height steel distribution warehouse |
Braced frames or moment frames designed for increased overturning and drift demand |
36–55 ft |
30–50 ft |
Keep height-to-width ratio moderate; avoid soft or weak wall lines |
Greater height increases drift, P-delta effects, overturning, and brace demand; evaluate rack interaction and nonstructural hazards. |
Large wall and roof surface areas increase wind force; design cladding attachments, doors, parapets, and roof zones for localized pressures. |
Perform stability analysis, drift control, column splice, base-plate, anchor-rod, and connection checks under AISC 360 and applicable seismic provisions. |
Suitable only if the P-695 archetype range includes the building height, period, structural system, and mass distribution. |
Moderate to High |
| 9 |
Long-span steel warehouse with interior transfer framing |
Long-span moment or truss frames with concentrated braced cores or bays |
30–50 ft |
40–80 ft |
Use expansion or separation joints to limit irregularity where appropriate |
Long spans may create flexible diaphragms and concentrated collector forces; design for diaphragm deformation and transfer-frame demands. |
Large roof spans require robust purlin, diaphragm, roof-fastener, and connection design for uplift and load reversals. |
Check member buckling, lateral-torsional buckling, transfer forces, frame stability, connection ductility, and construction-stage stability under AISC 360. |
Often outside simple P-695 archetype assumptions; project-specific nonlinear analysis may be necessary. |
Moderate |
| 10 |
Irregular steel warehouse with large openings or partial-height walls |
Localized braced or moment frames around loading courts, offices, and open bays |
24–45 ft |
25–60 ft |
Use seismic and wind separation zones where plan or height changes are substantial |
Open fronts and discontinuous walls can create torsion, soft-story behavior, weak collectors, and concentrated column-base forces. |
Large doors and open loading areas require engineered jamb, header, track, shutter, roof-edge, and wall-panel load paths. |
Model discontinuities explicitly; verify stability, diaphragm transfer, collector design, anchorage, and connection behavior under AISC 360. |
Usually requires project-specific evaluation because irregular geometry may not represent a standard FEMA P-695 archetype. |
Moderate |
