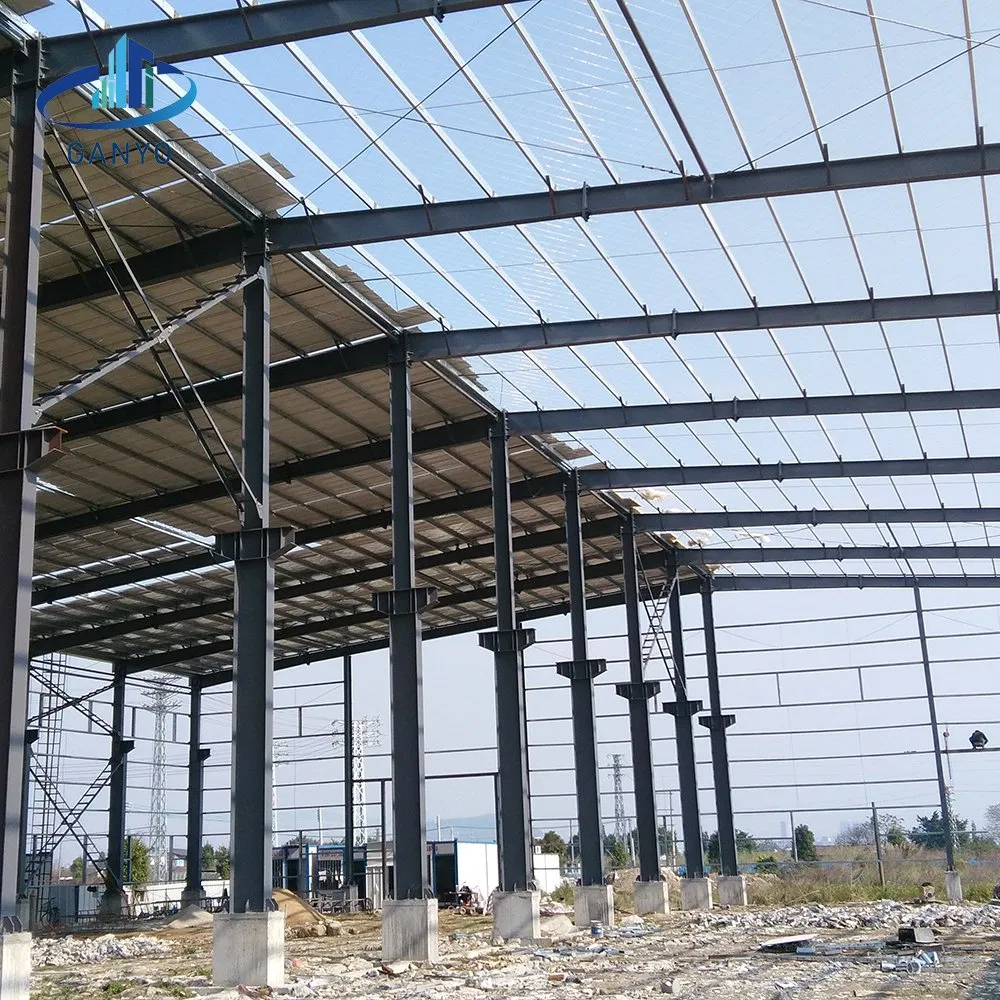

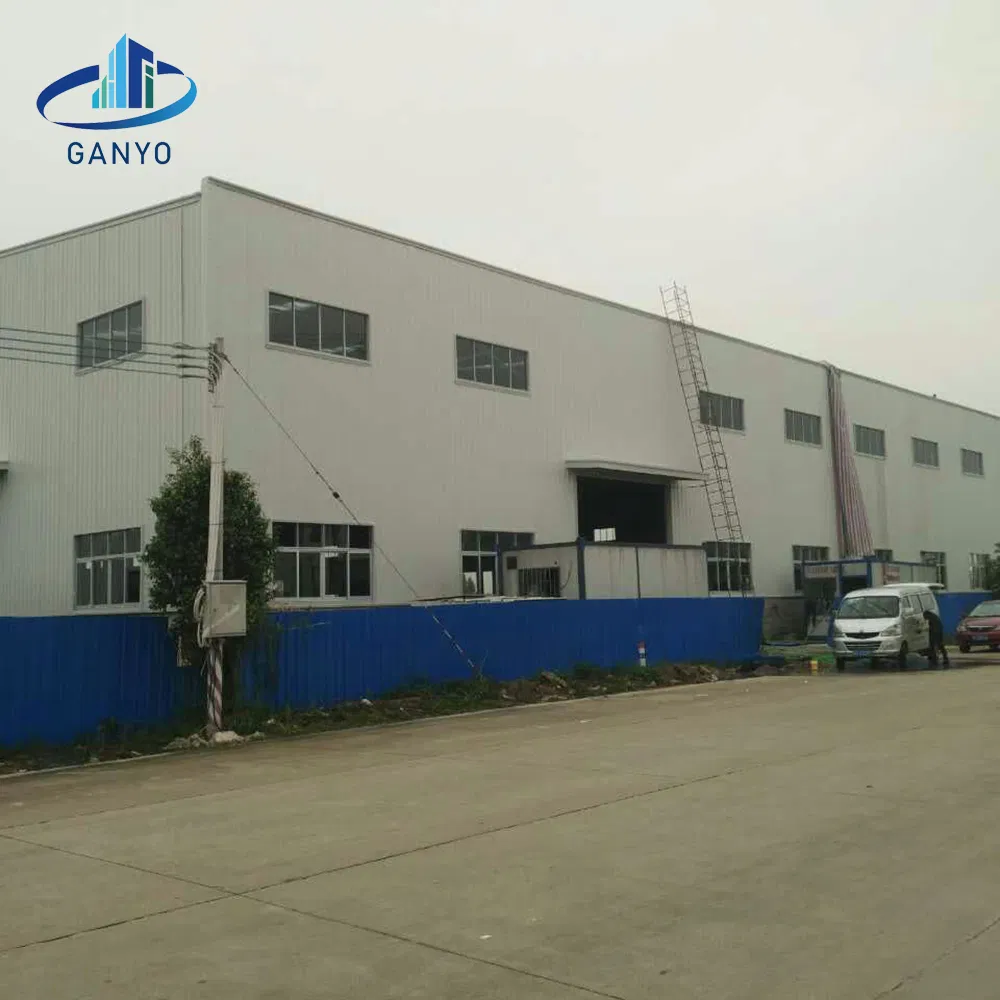

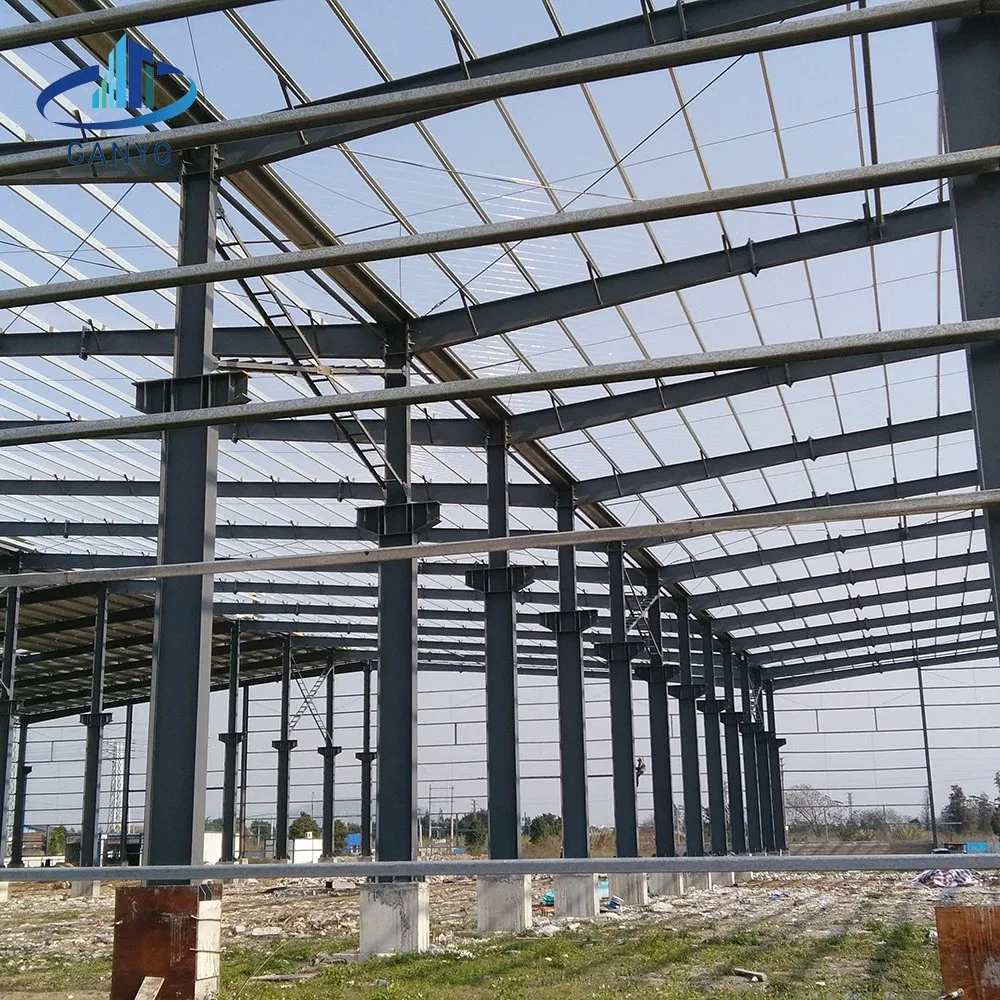

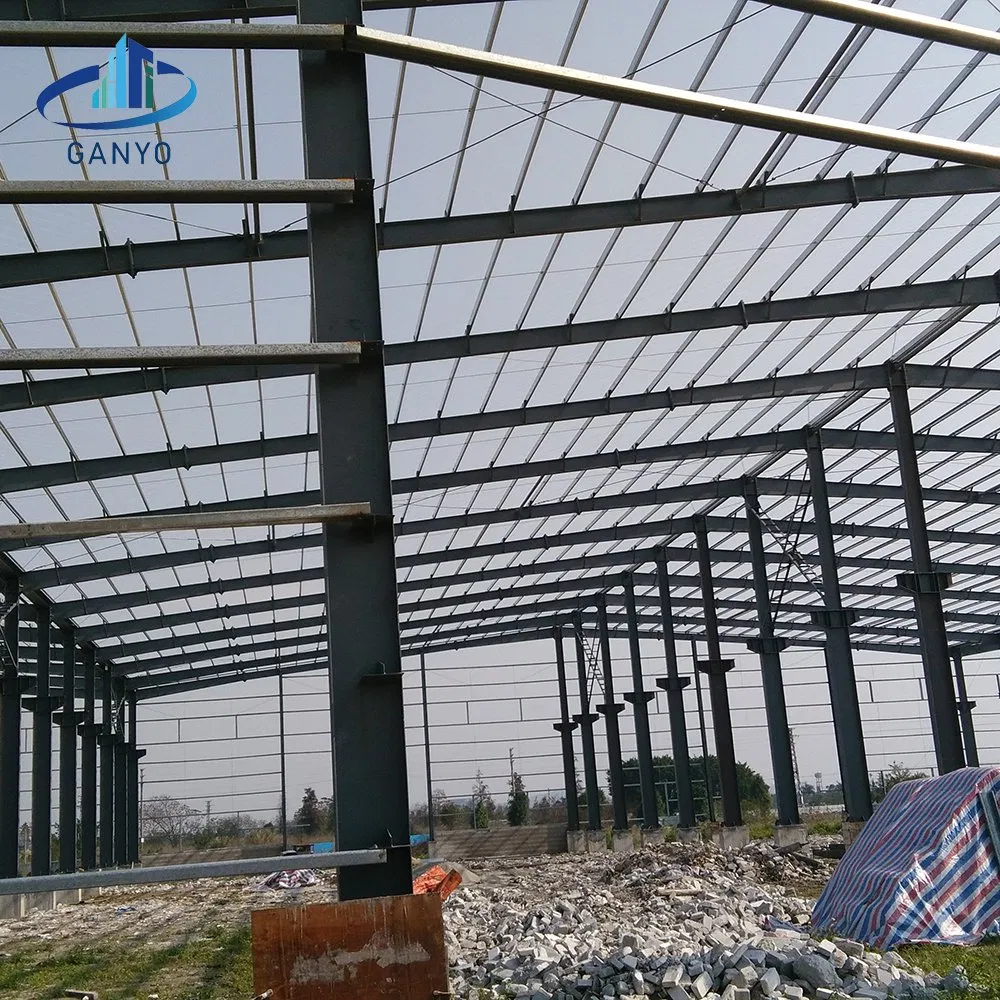

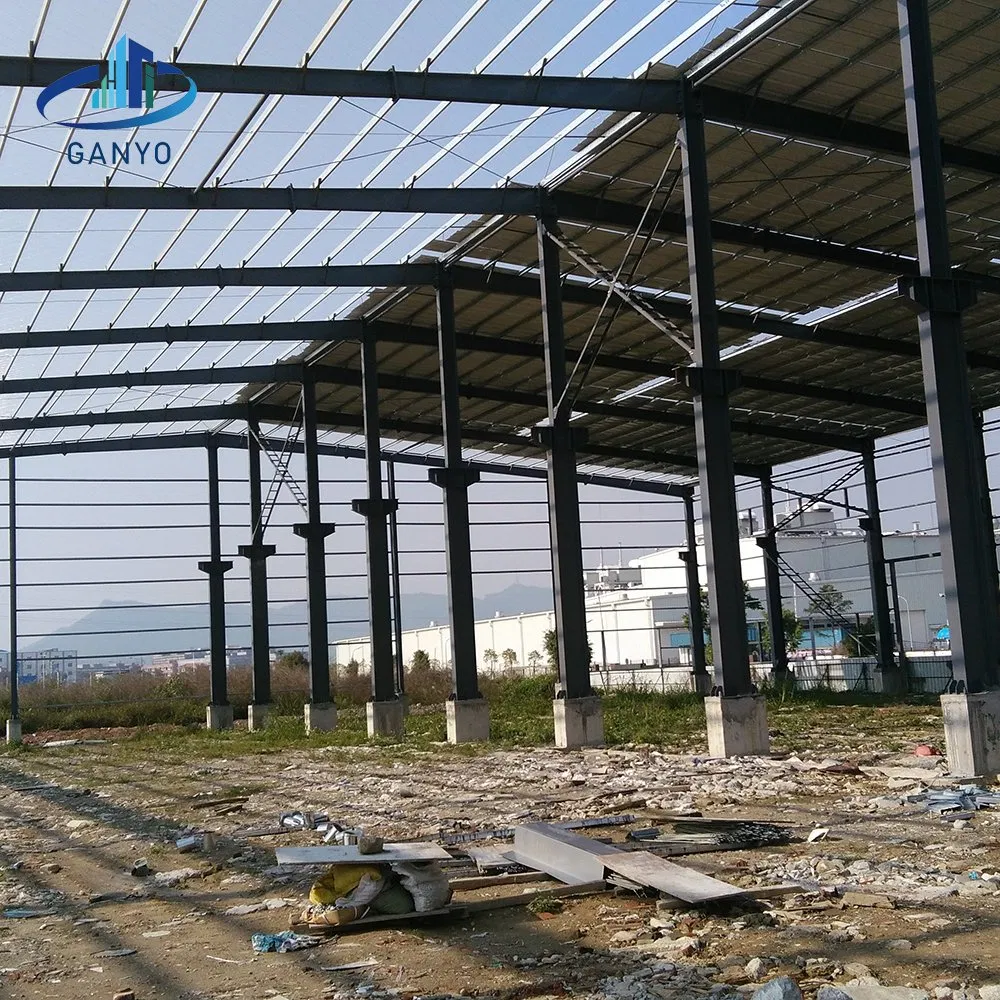

Ganyo Custom Steel Structure Fabrication Metal Steel Structure Warehouse Building

Customization:	Available
Type:	H-Section Steel
Material:	Steel Structure

Basic Specifications

Model NO.

GY-SW316

Structure Frame

Portal Frame

Software Used

Auto CAD, PKPM, Tekla

Steel Code

Q355 & Q235

Wind Loading

80km/H - 120km/H

Seismic Grade

7 Grade

Connection Method

Bolts Connection

Warranty

30-50 Years Service Life

Production Capacity

2000 Tons Per Month

Standard

ASTM

Advantages of Steel Structure Building

Flexible layout: Adaptable to various architectural needs.
High Durability: Good ductility, strong plasticity, and high seismic/wind resistance.
Efficiency: Quickly build with a long service life.
Cost-Effective: Lightweight, high quality, and low cost.
Eco-Friendly: 100% recyclable or degradable materials.

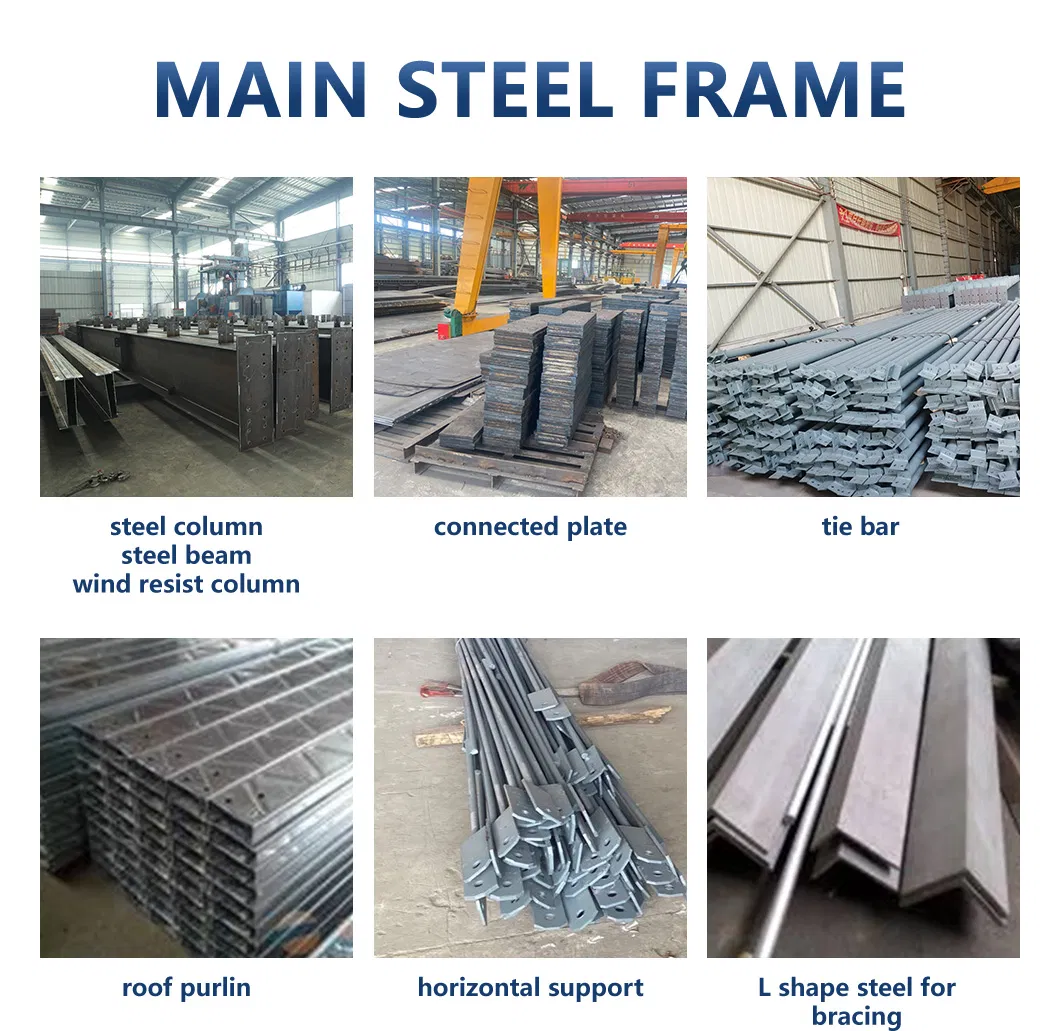

Main Structural Components

Component	Material/Size	Steel Grade
Steel Column	Hot rolled H-beam or welded H beam	Q355B
Steel Beam	Calculated by engineering team	Q355B
Tie Bar	¢89*3	Q235B
Horizontal Support	¢20 round steel	Q235B
Roof Purlin	C1605020*2.0 (Galvanized)	Q235B
Surface Treatment	Painting or Hot-dip galvanize

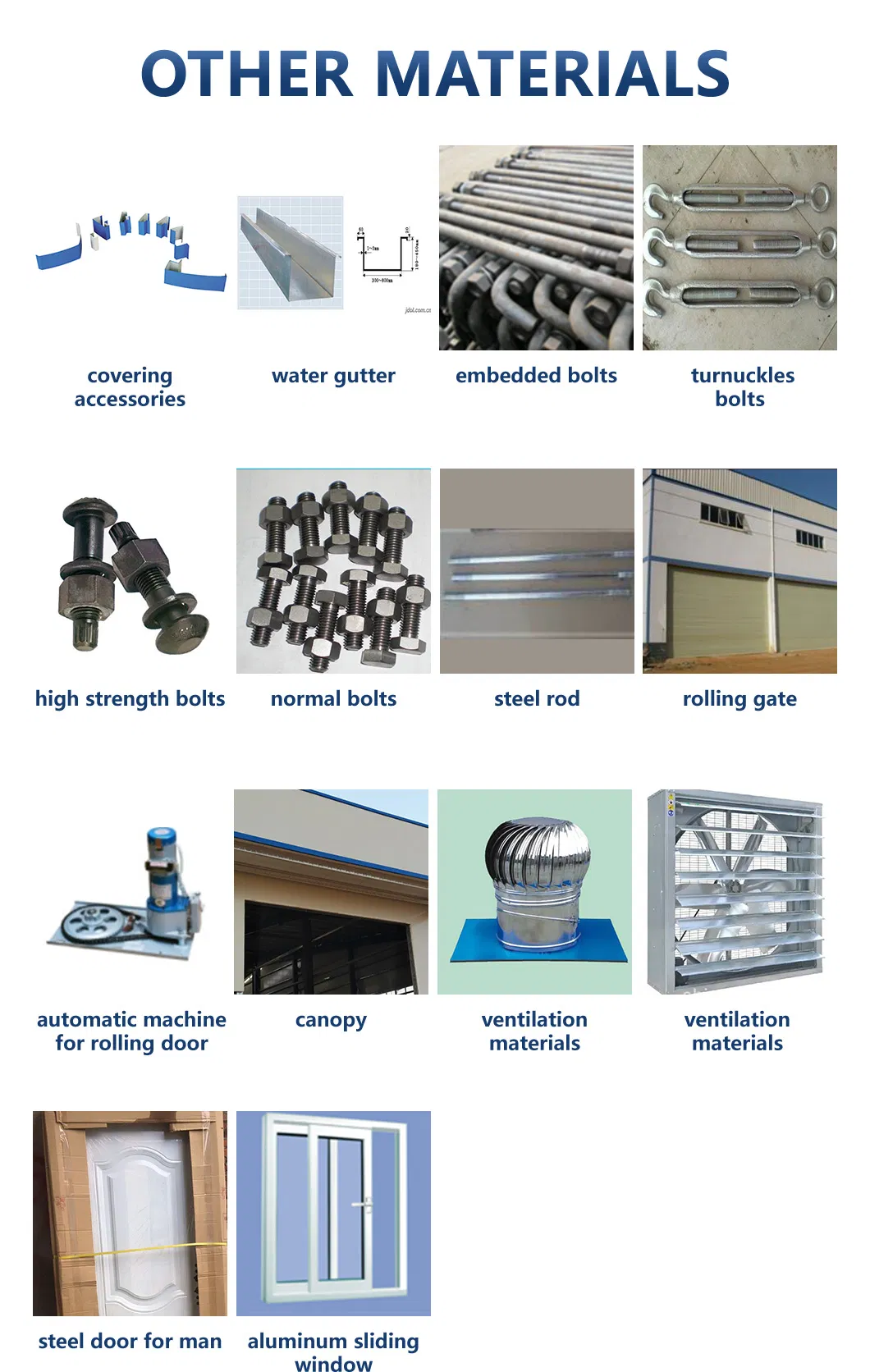

Cladding & Accessories

Type	Available Materials	Dimensions

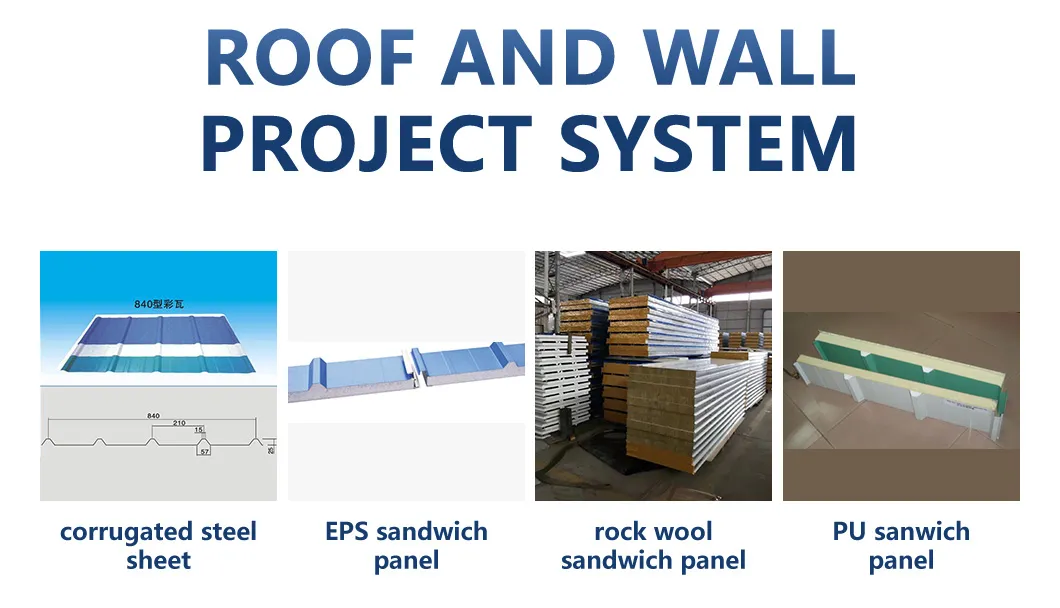

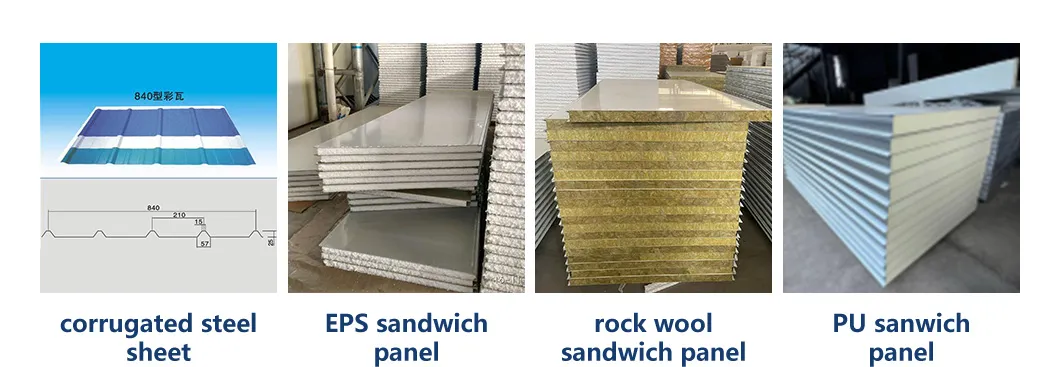

Roof Cladding	Steel sheet / EPS / Rock wool / PU	Thickness: 0.426mm - 0.476mm
Wall Cladding	Corrugated steel / Sandwich panels	Thickness: 50mm / 75mm / 100mm
Water Gutter	Stainless Steel	0.8mm thickness
Doors	Rolling gate / Steel man door	Customized sizes available
Windows	Aluminum sliding window	Customized sizes available

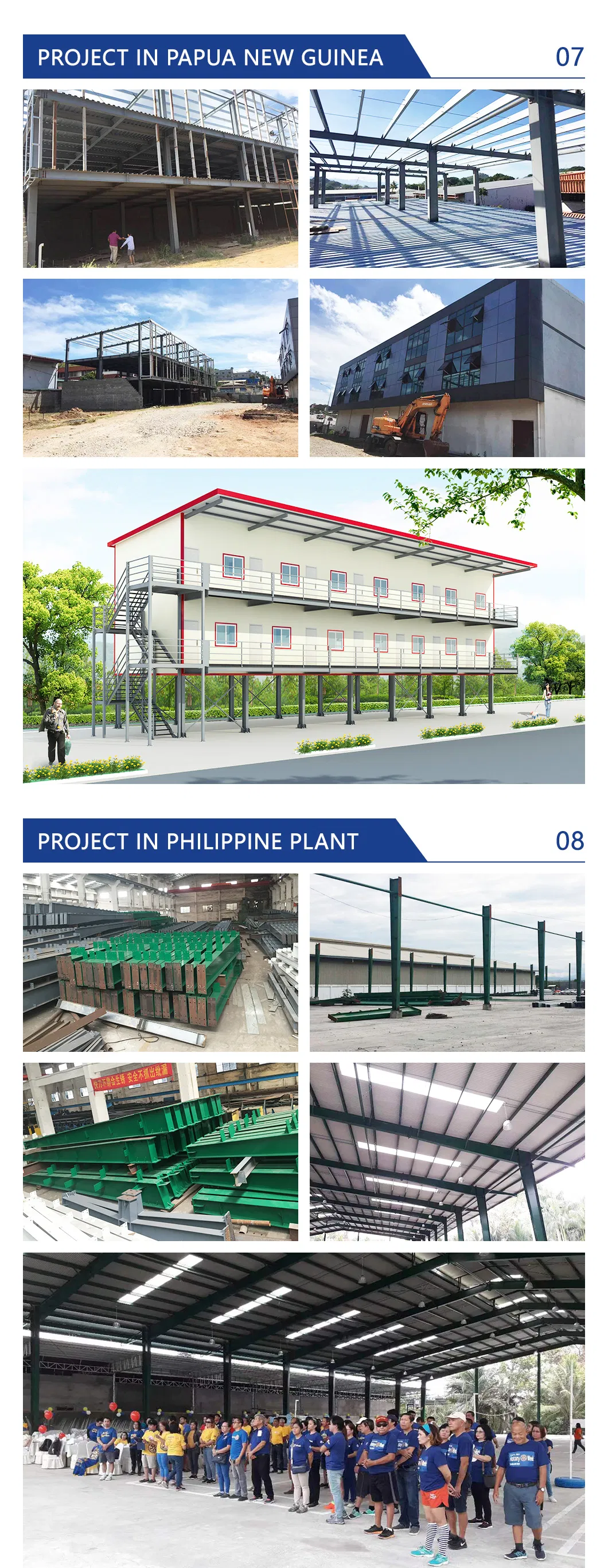

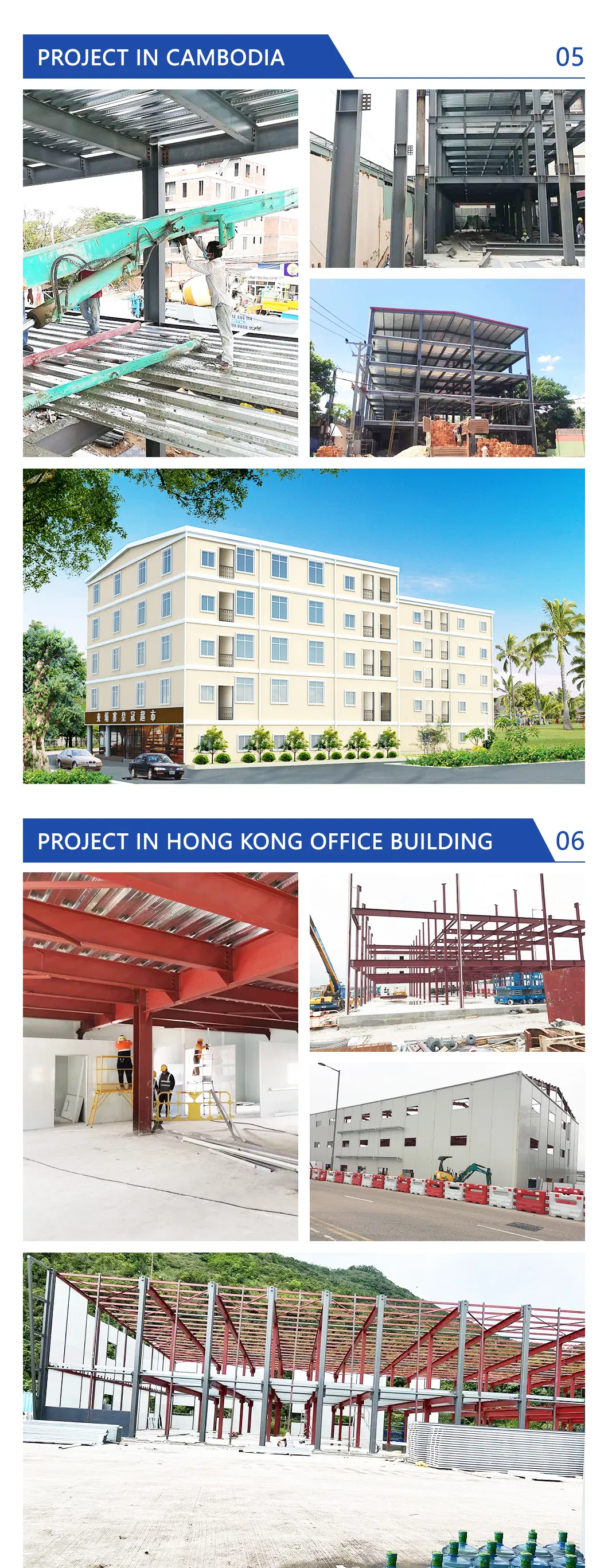

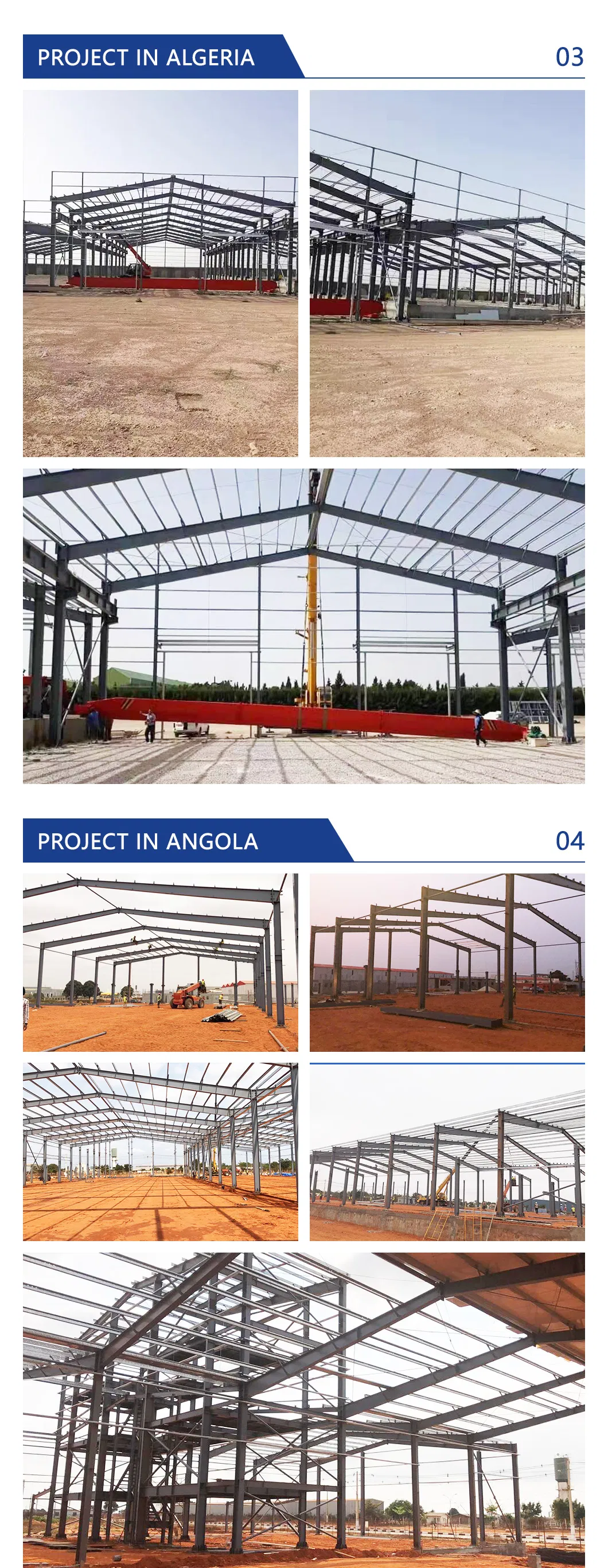

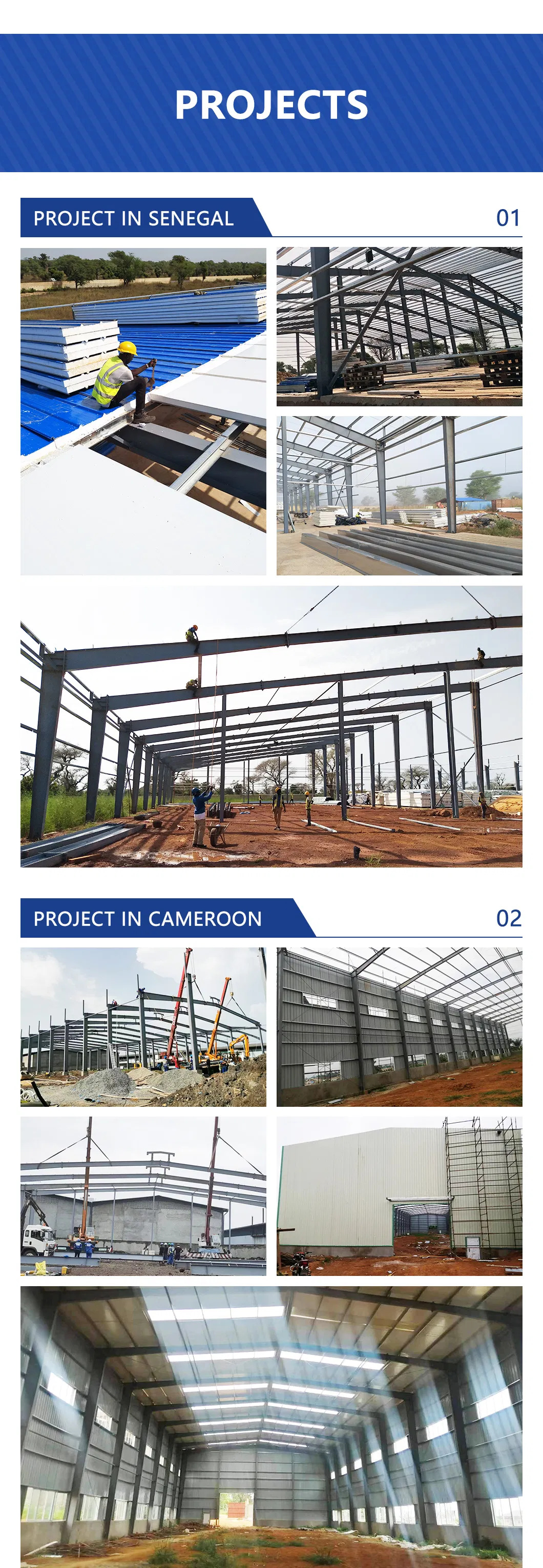

Project Implementation Showcase

Our Professional Services

Professional Design & Engineering

Full solution for house design tailored to your specific requirements.

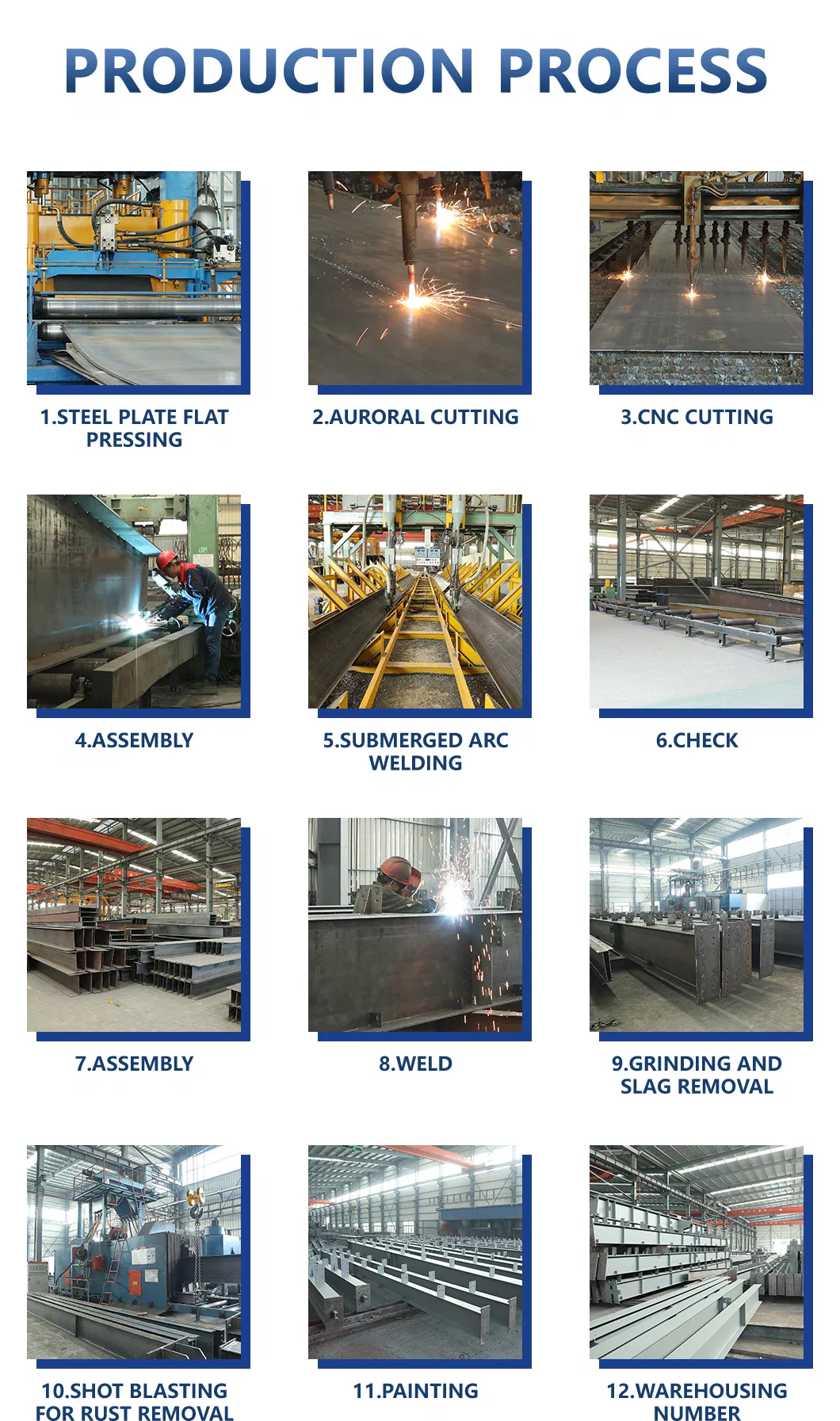

Procurement & Manufacturing

ISO-standard fabrication using high-quality materials for all prefabricated buildings.

Site Management & Supervision

Technical guidance and installation supervision provided by experienced engineers.

Customization Requirements

To provide an accurate design and quote, please provide:

Local weather data (wind speed, snow load, seismic rating).
Building dimensions (Length * Width * Height).
Purpose of the building (Warehouse, Workshop, Office, etc.).
Insulation requirements (Sandwich panels vs. single steel sheets).
Functional requirements (Crane capacity, number of doors/windows).

Frequently Asked Questions

Q1: Are you a manufacturing factory?

A: Yes, we are a manufacturing factory. We maintain strict quality control throughout the production process to ensure the best quality and competitive pricing.

Q2: How do you ensure product quality?

A: We follow standardized procedures to check products at all stages—from raw materials to finished goods. Third-party testing like SGS and BV is also available.

Q3: Can you provide customized design services?

A: Yes, our excellent design team can create full-solution drawings based on your specific requirements and site conditions.

Q4: Do you offer overseas installation support?

A: We provide detailed installation drawings and videos. If needed, we can also send engineers for on-site supervision and training.

Q5: What is the expected service life of these structures?

A: Our steel structures are designed for long-term durability, with a typical service life ranging from 30 to 50 years depending on environmental conditions.

Q6: What factors affect the cost of the building?

A: Key factors include building size, local wind/snow load requirements, the type of cladding/insulation used, and whether cranes or specialized equipment are required.
