Customized Shape Steel Structure Frame Drawing Design Large Span Warehouse

1 / 5

Customized Shape Steel Structure Frame Drawing Design Large Span Warehouse

Customization:	Available
After-sales Service:	Both Online and on-Site Technical Support and Guid
Connection Form:	Bolt Connection

Send Inquiry

Product Description

Overview
Product Description
Product Parameters
Detailed Photos
Packaging & Shipping
Company Profile
FAQ

Overview - Basic Info.

Model NO.

JHRSSC-027

Feature

Anti-Corrosion, Earthquake Resistance, Easy To Install, High Intensity, Recyclable

Install

Support Installation

Type

Light Section Steel

Certificated

ISO, Co, SGS

Structure

Steel Structure

Member

Steel Column

Keyword

Steel Structure

Roof

Sandwich Panel

Product Member

Steel Column

Installation

Installation Drawing or Guide on Site

Drawing

Design The Drawing as Your Demand

Doors

Sliding Door/Roll-up Door

Material

Q235, Q345b Steel, H-Column, C-Section Purlin

Standard

GB, ASTM, AISI

Carbon Structural Steel

Q235

Forming

Hot-Rolled Steel

Type of Steel

H-Section Steel

Transport Package

Flat Packed in Container or as Request

Specification

Customized

Origin

Shandong

HS Code

94060000

Production Capacity

10,000,000 Kg/Year

Packaging & Delivery

Package Size

200.00cm * 50.00cm * 50.00cm

Package Gross Weight

100.000kg

Product Description

Customized Shape Steel Structure Frame Drawing Design Large Span Warehouse

Steel structure building is one kind of product which can be designed as per different needs.

If you find that the following example pictures are different from what you want, please do not worry.

No matter which kind of building you need—prefabricated houses, warehouses, bigger, smaller, or multi-storey—just provide the specifications or drawings of the building you need.

We will provide the exact design, quotation, and rendering for you as soon as possible.

Product Parameters

Item Name	Steel structure warehouse
Material	Q235, Q345b Steel, H-Column, C-Section Purlin
Surface	Painted or Hot Dip Galvanized

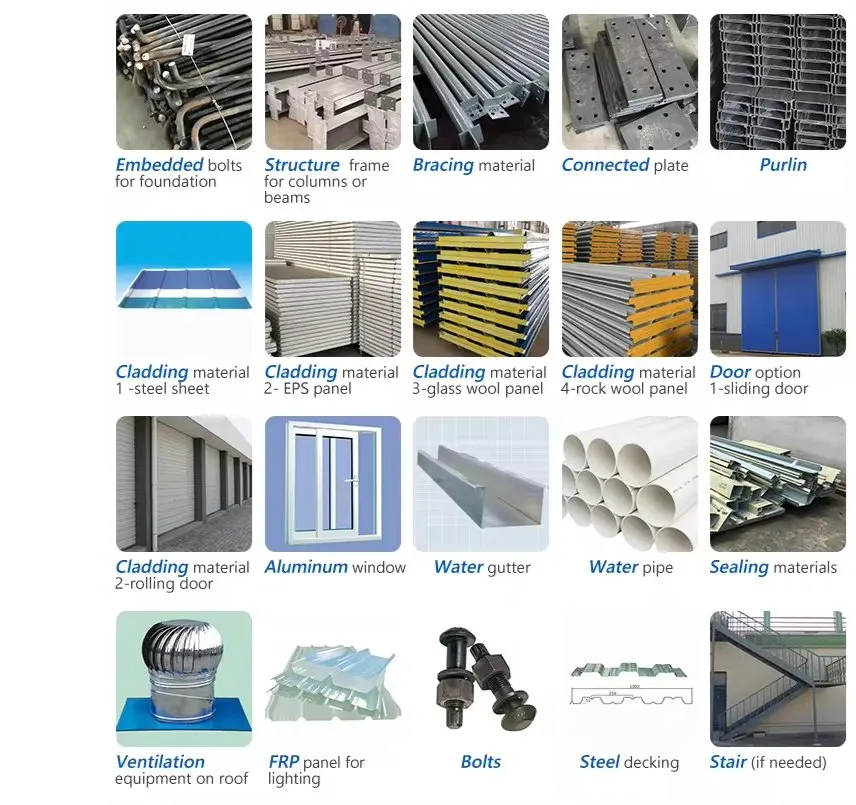

Structure Part	Steel Beam/Steel Column/Purlin/Roof tube brace/Roof horizontal braces/Angle brace/Purlin/Bolt/Roof/Wall/Gutter

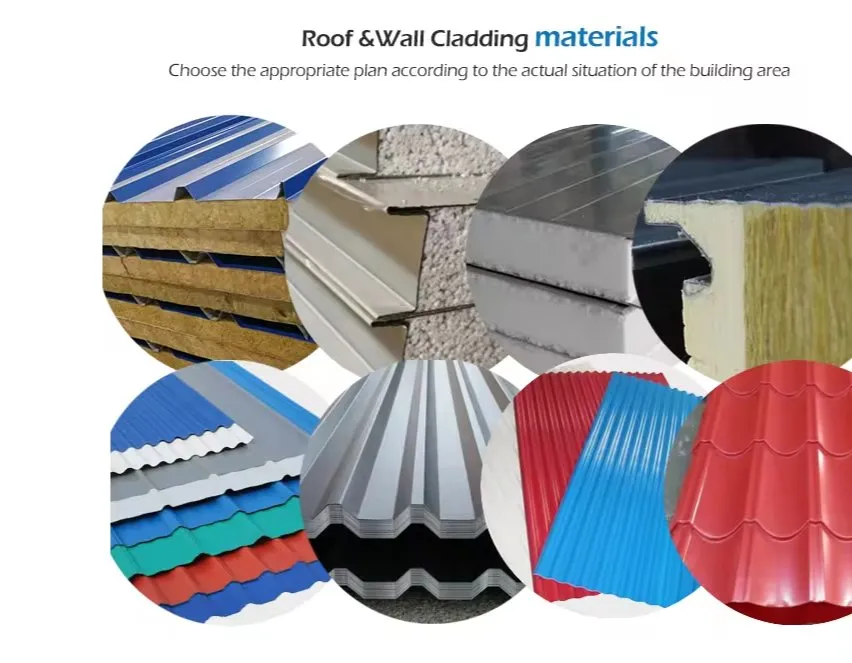

Roof & Wall Panel	Sandwich panel(PU/EPS/fiberglass/rock wool) or Colorful steel Panel
Window	PVC Steel or Aluminum Alloy
Door	Sliding Door or Rolling Up Door

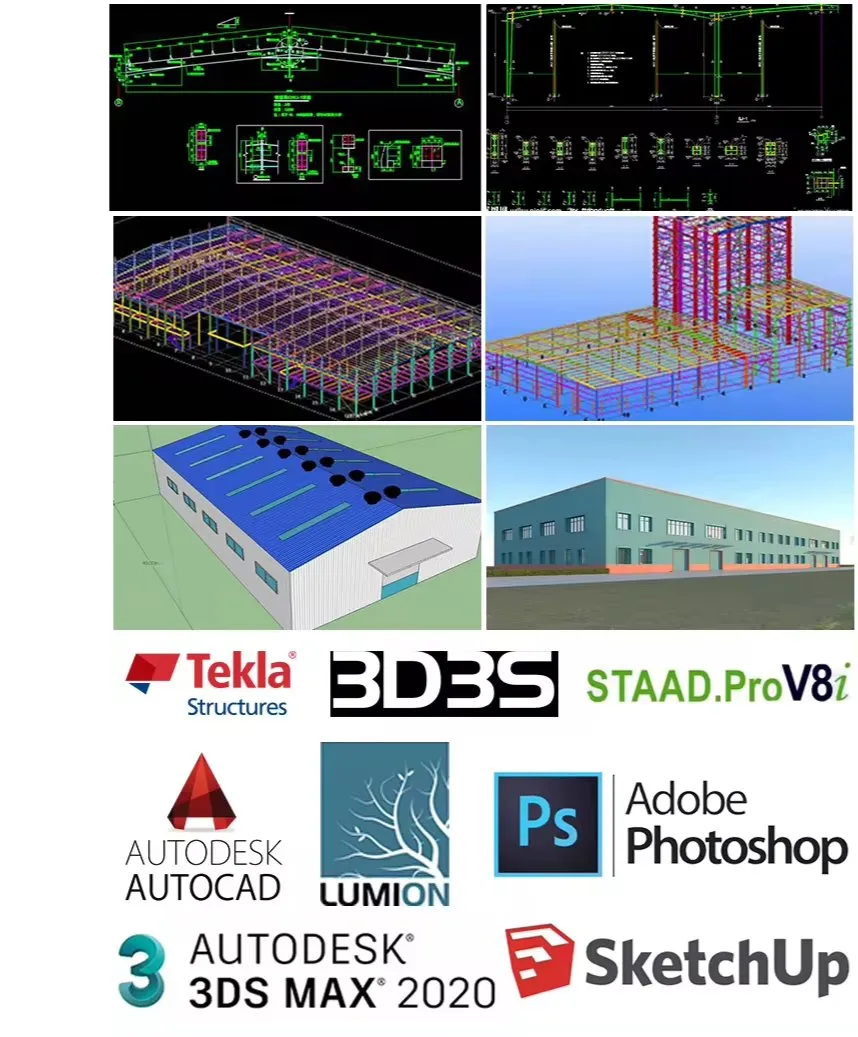

Service	We can make quotations according to the customer's drawing or requirements (size by length/width/height and wind speed), offering a free design drawing and all detailed drawings for installation. Design software: Auto CAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) V12.0, etc. Design, Fabrication and Installation
Packing	According to customer's requirements Load into 40/20GP, 40HQ or 40OT

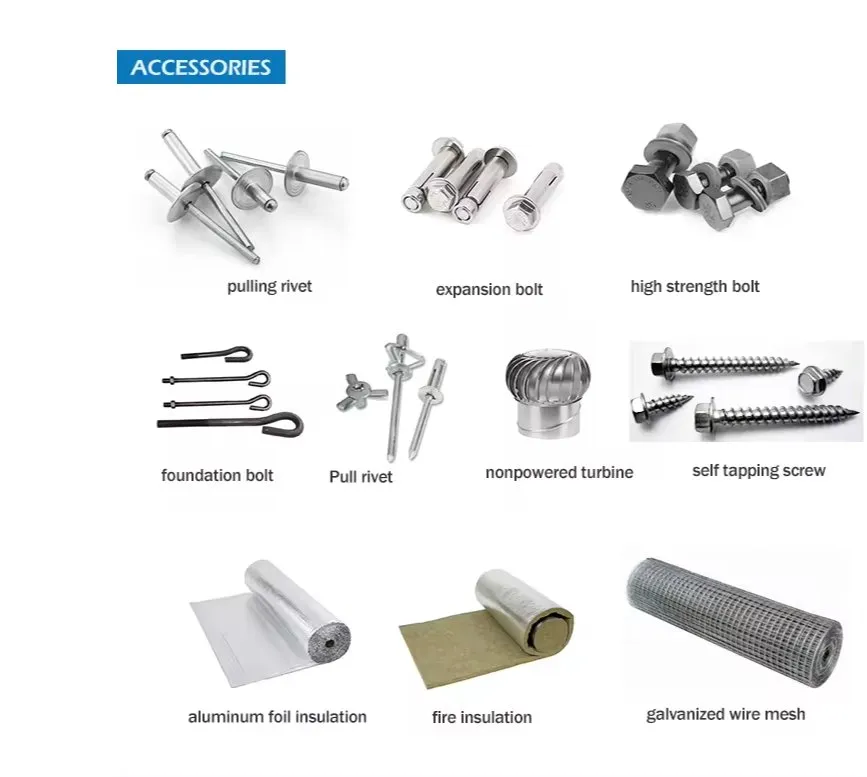

Others options	Skylight panel, Roof ventilator, Down pipe, Galvanized, Crane, sanitary Products

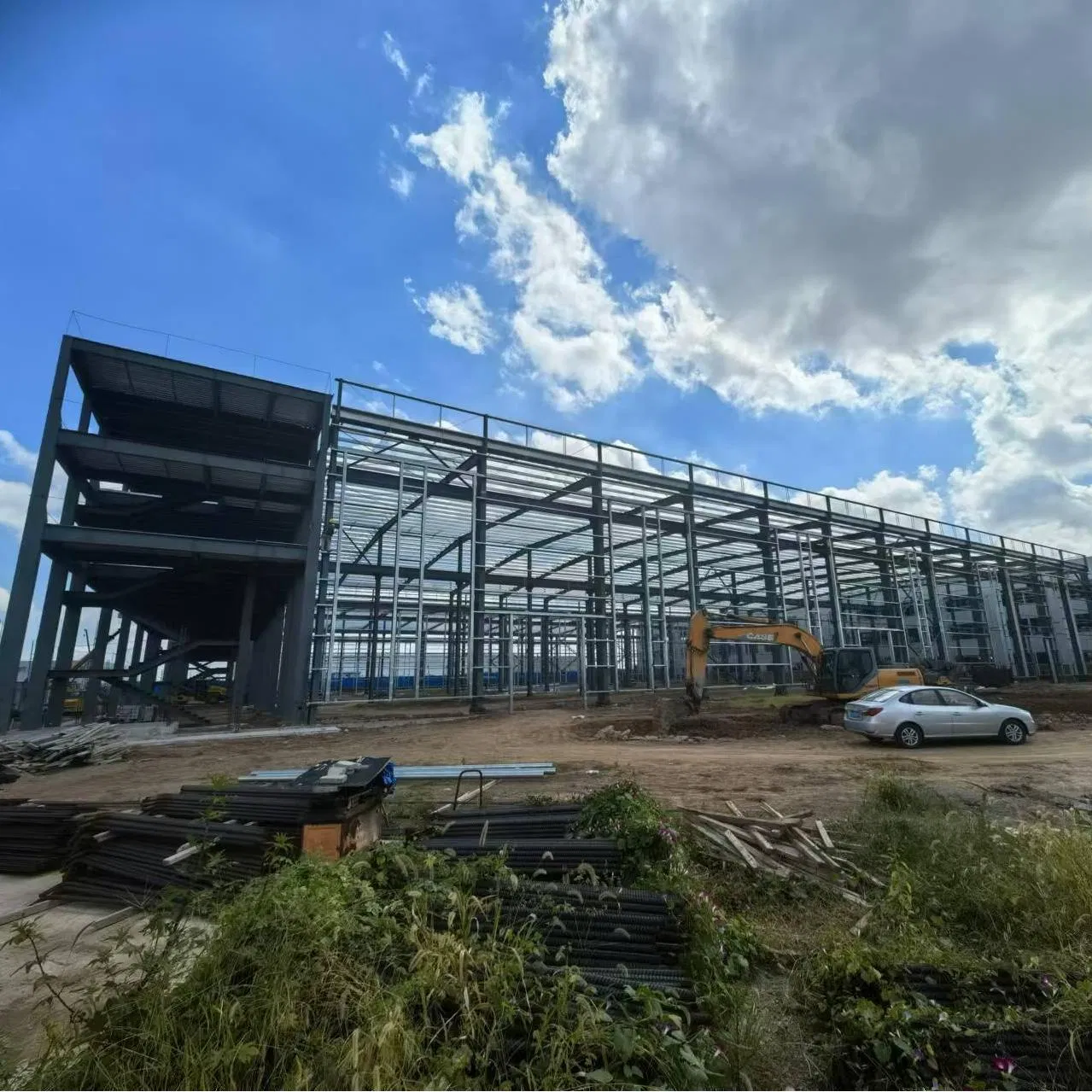

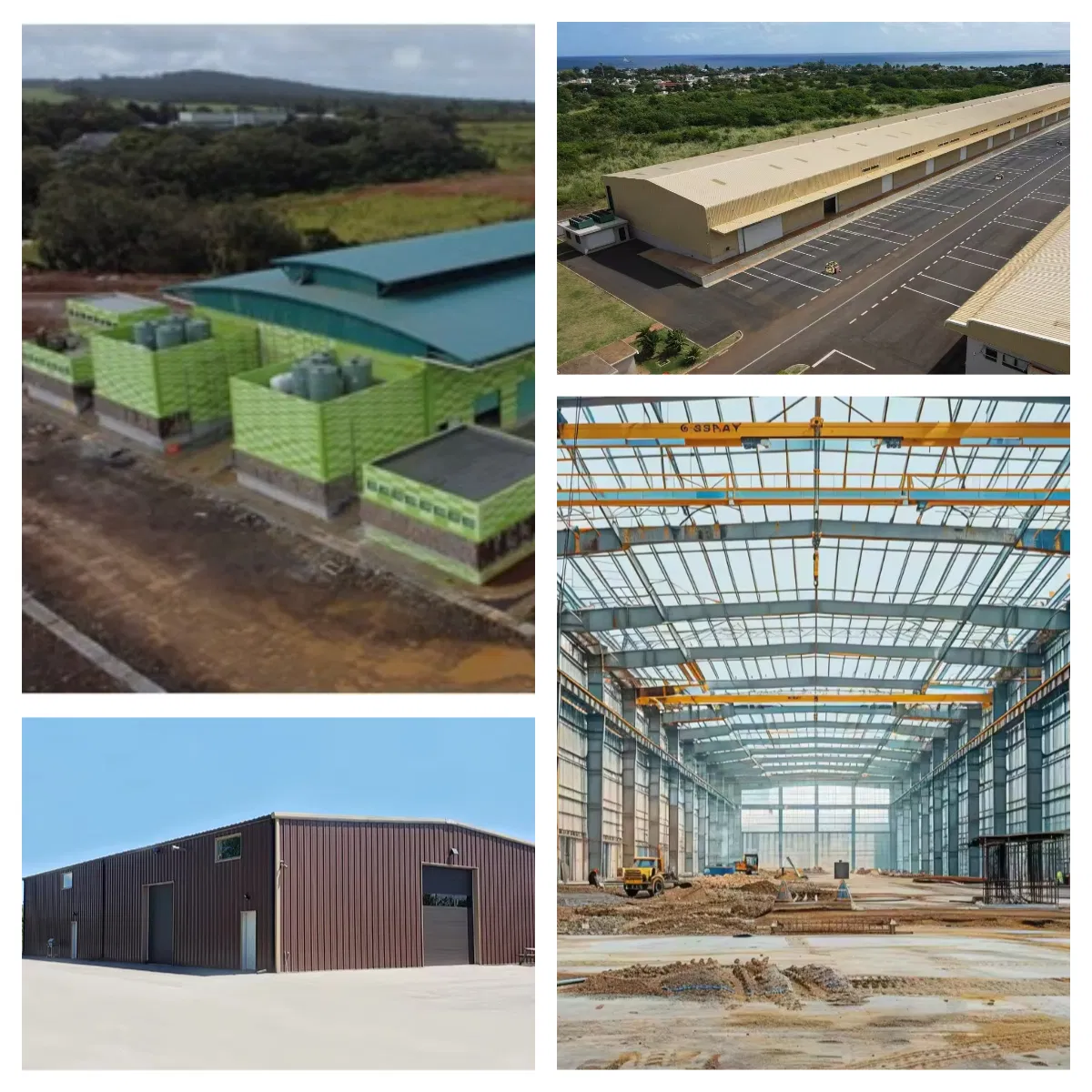

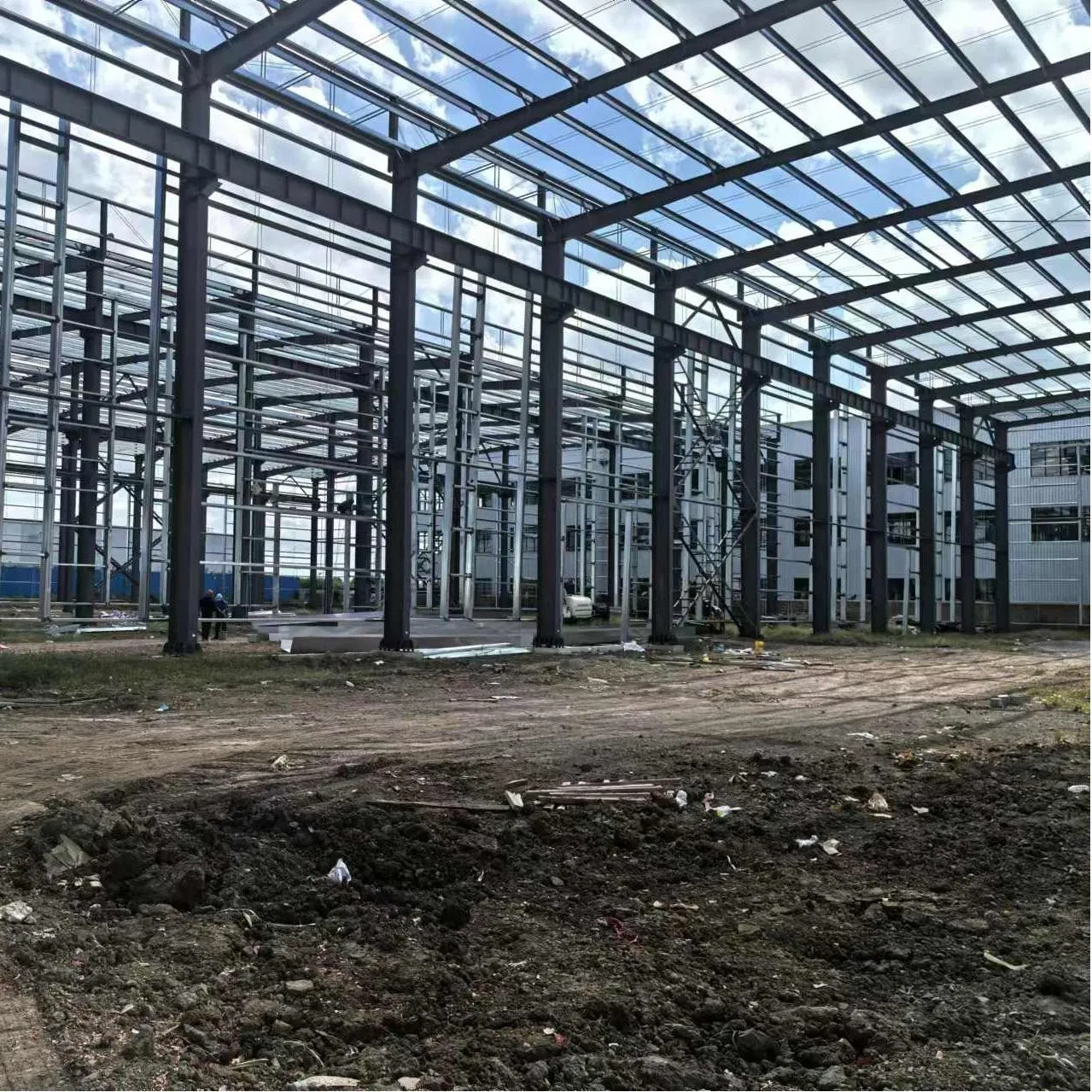

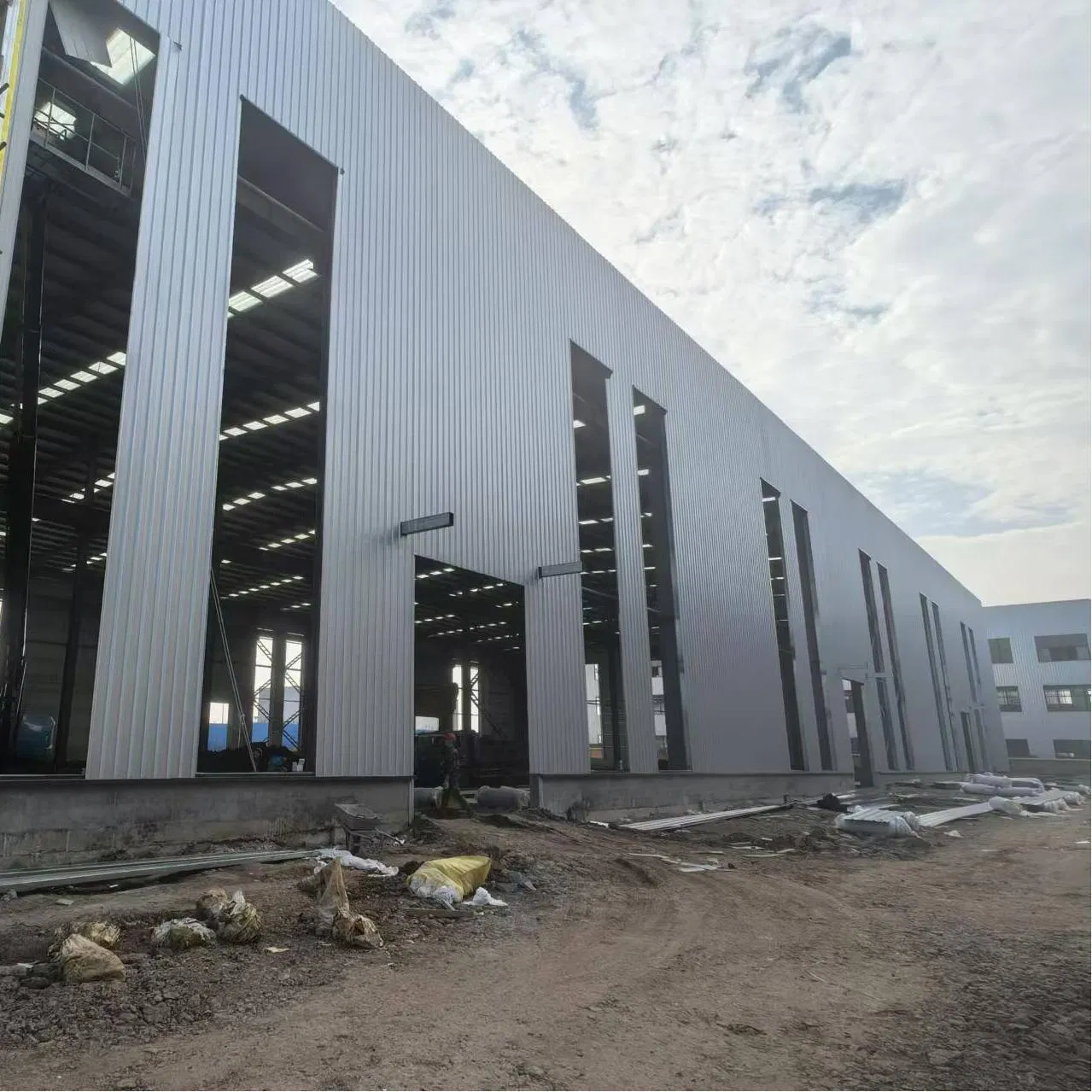

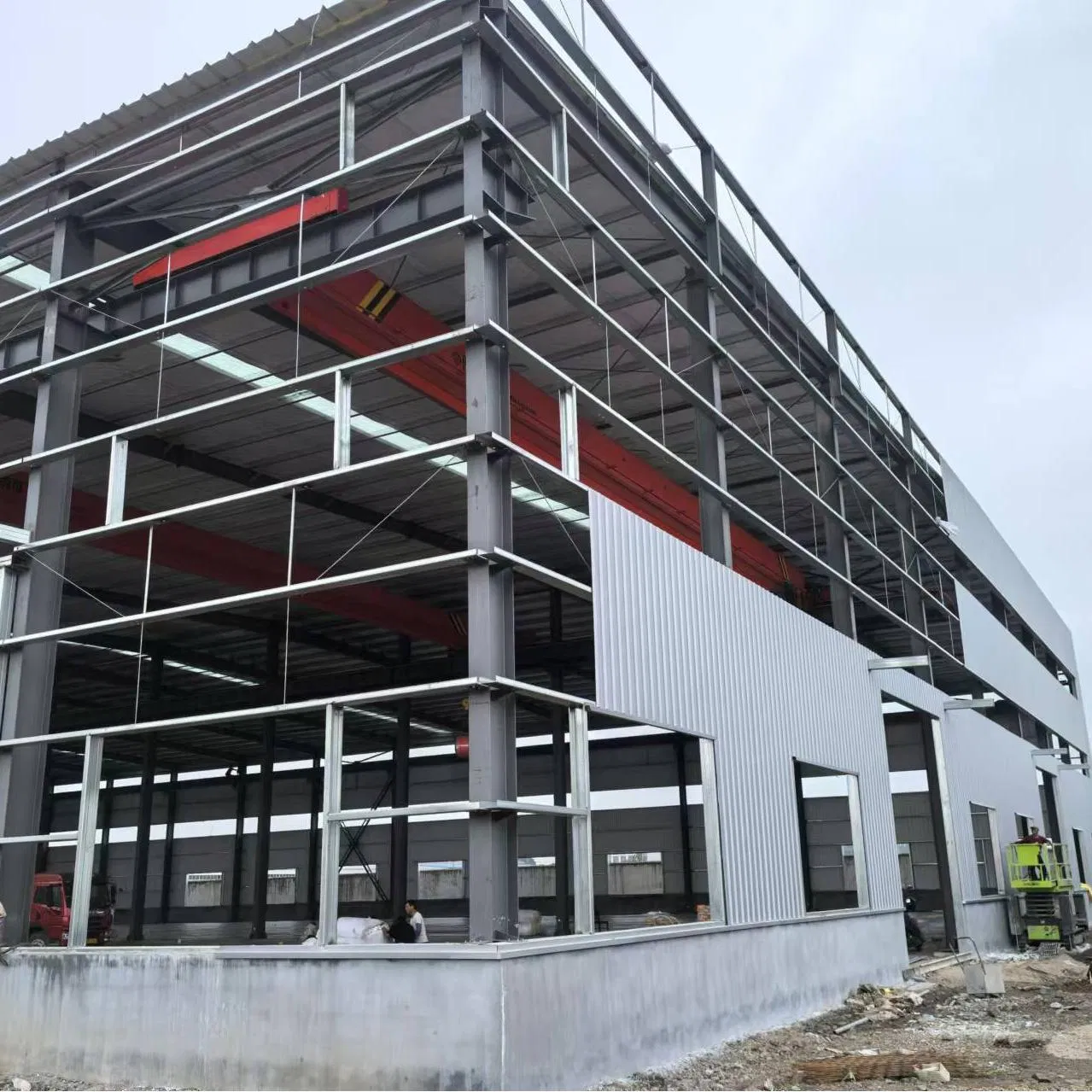

Detailed Photos - Project Examples

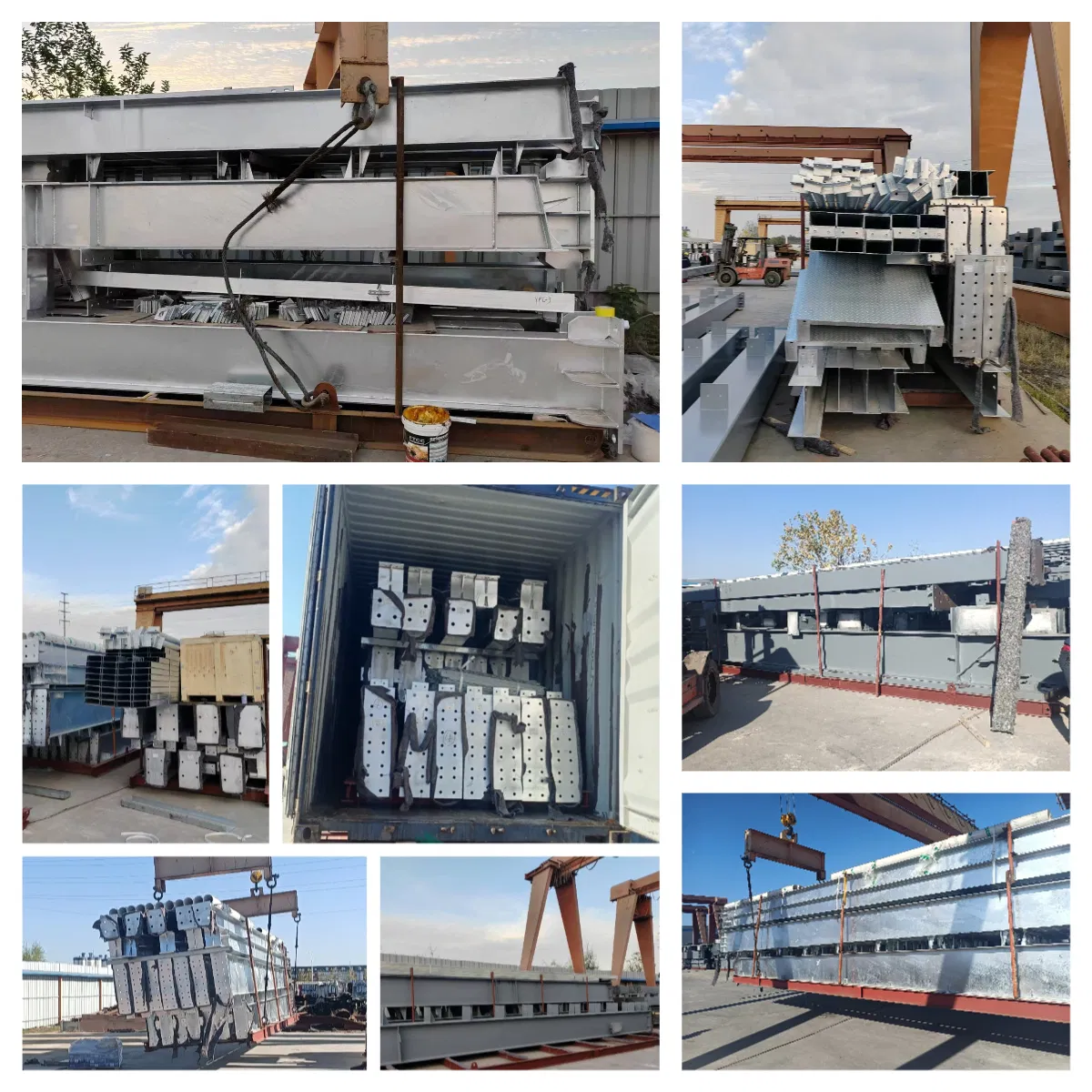

Packaging & Shipping

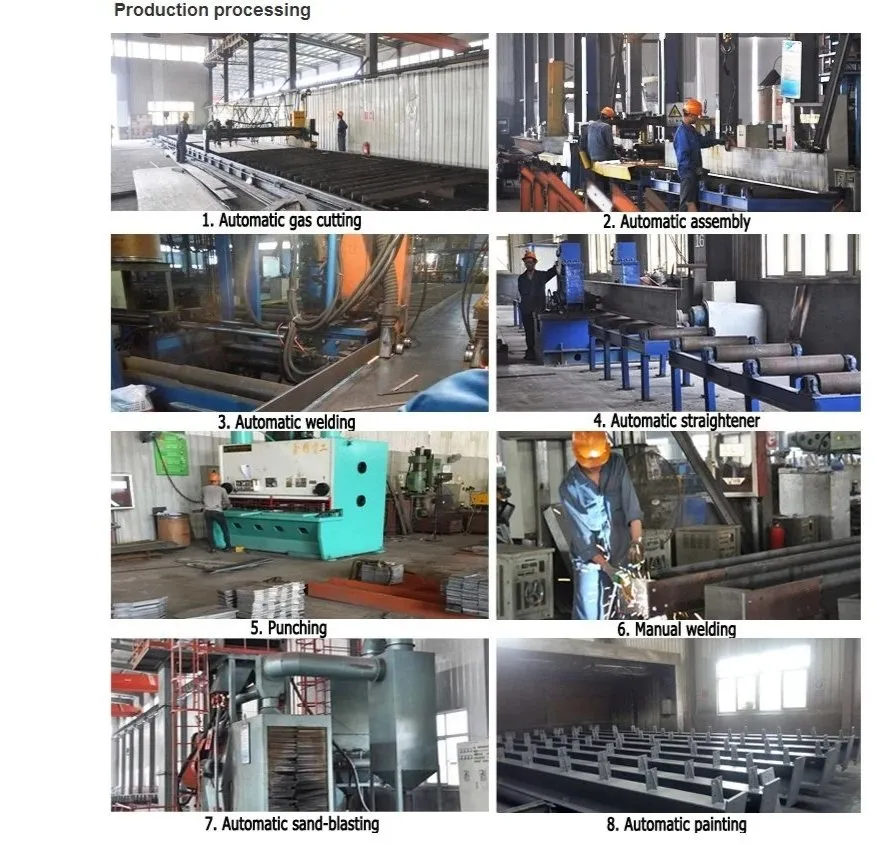

Company Profile

Covering an area of 45,000 square meters, our facility has convenient transportation access. Founded in 2000 with more than 200 employees, we are a large comprehensive company integrating material trade management, steel structure building materials production and processing, and steel structure installation.

We attach great importance to improving the management level of modern enterprises and establishing a scientific quality management system. We also place great importance on the cultivation and use of talents. Relying on excellent management personnel, scientific and advanced technology, and strong management advantages of raw materials like color-coated steel plates, we effectively promote the continuous expansion of the market.

Our production has passed ISO and CE testing, and our goods can meet ASTM, JIS, DIN, British, and Australian Standards as we have exported our products worldwide.

We will provide our customers with high-quality products and service.

FAQ

1. Are you a manufacturing factory or a trading company?

We are a manufacturing factory. You are welcome to visit us at any time. Our quality control flow and sales team will demonstrate our professionalism. You will also get the best and most competitive prices.

2. Is your price competitive compared with other companies?

Our business objectives are to offer the best price with the same quality, and the best quality with the same price. We will do everything we can to reduce your costs and guarantee you get the best product you paid for.

3. Can you send engineers or a whole team to install my project?

We will provide detailed installation drawings and video instructions for free. We can also send engineers as installation directors or an entire team upon request.

4. Do you accept container loading inspection?

You are welcome to send an inspector, not only for container loading but at any point during production.

5. Do you offer design services for us?

Yes, we can design full solution drawings based on your requirements. Utilizing AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel), etc., we can design complex industrial buildings such as office mansions, supermarkets, auto dealers, shopping malls, and hotels.

6. What is the delivery time?

Delivery time depends on order quantities. In general, the delivery time to the nearest seaport in China will be 30 days after receiving the deposit.
