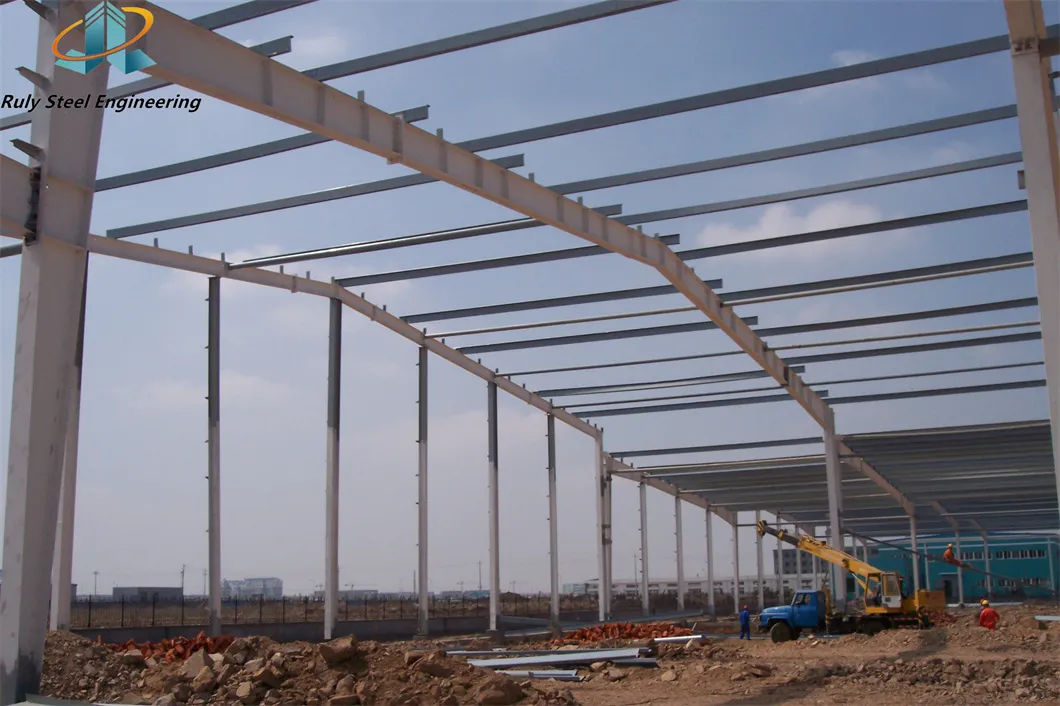

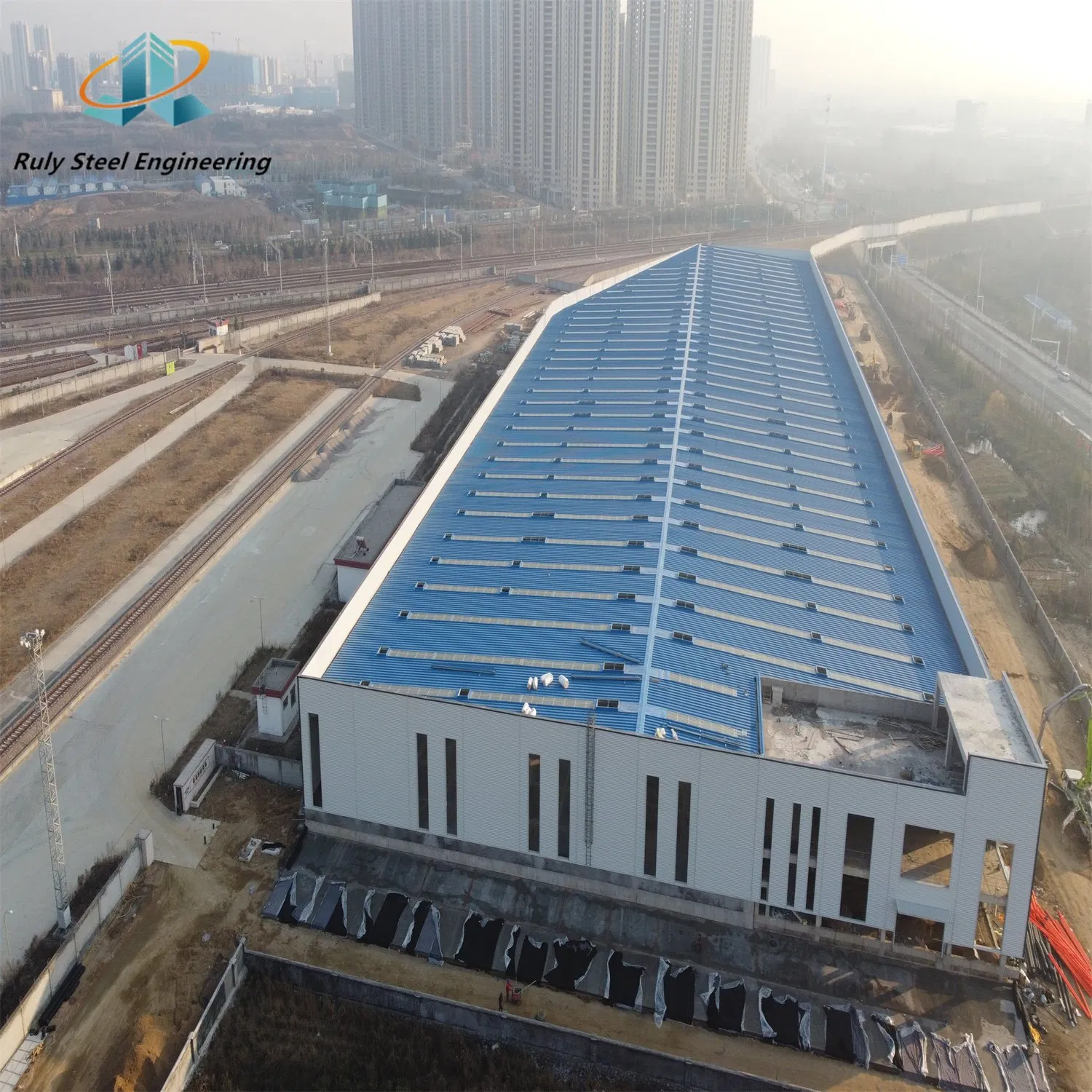

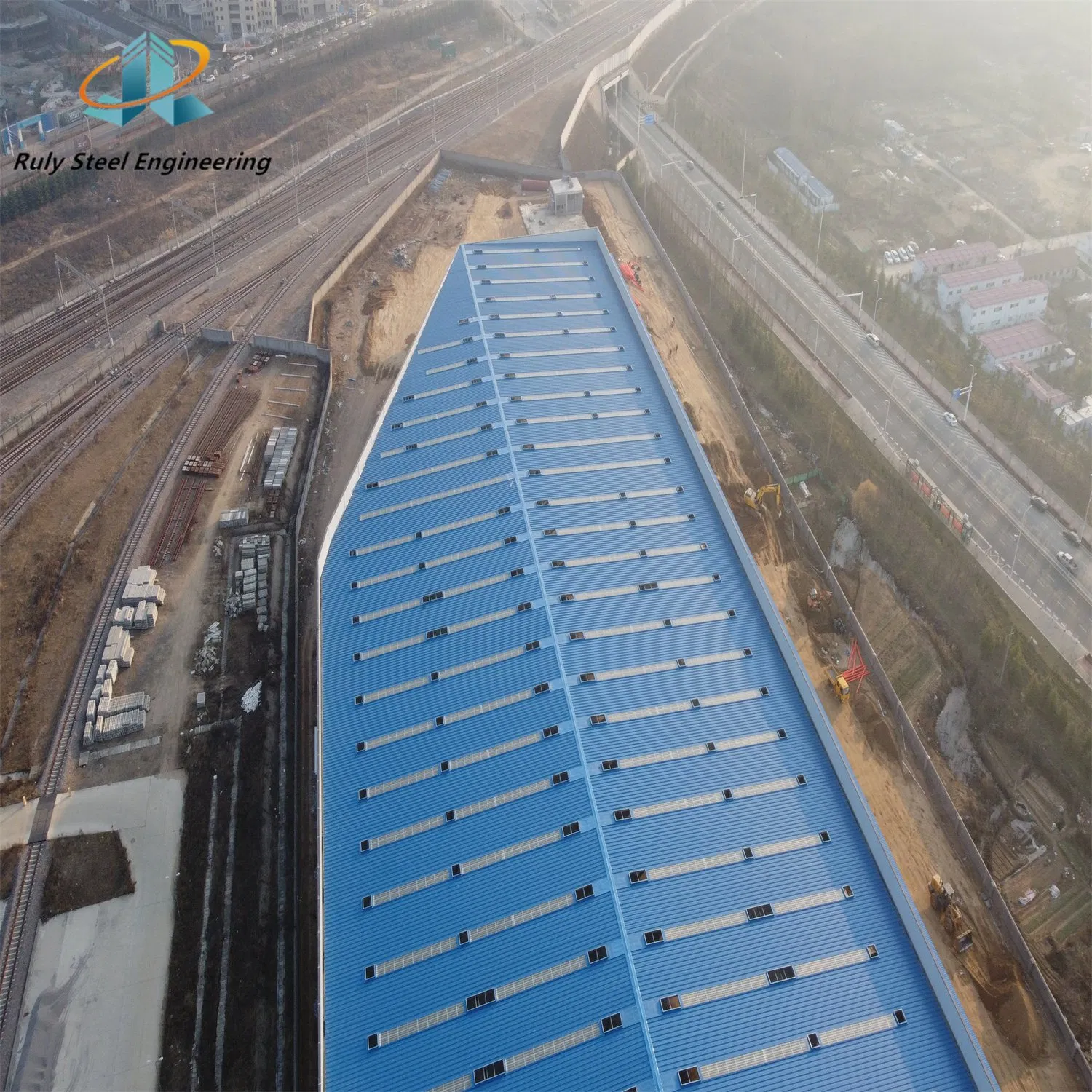

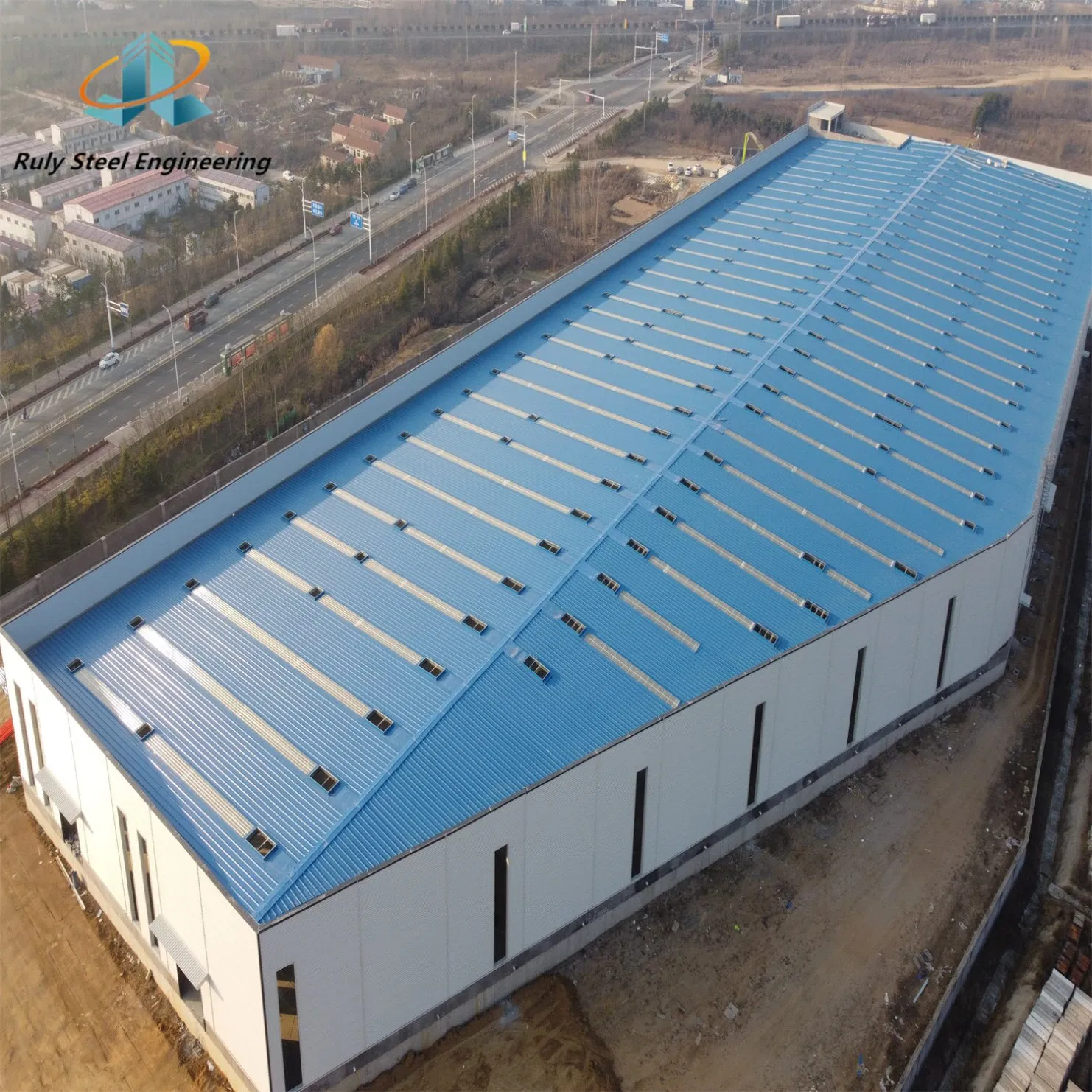

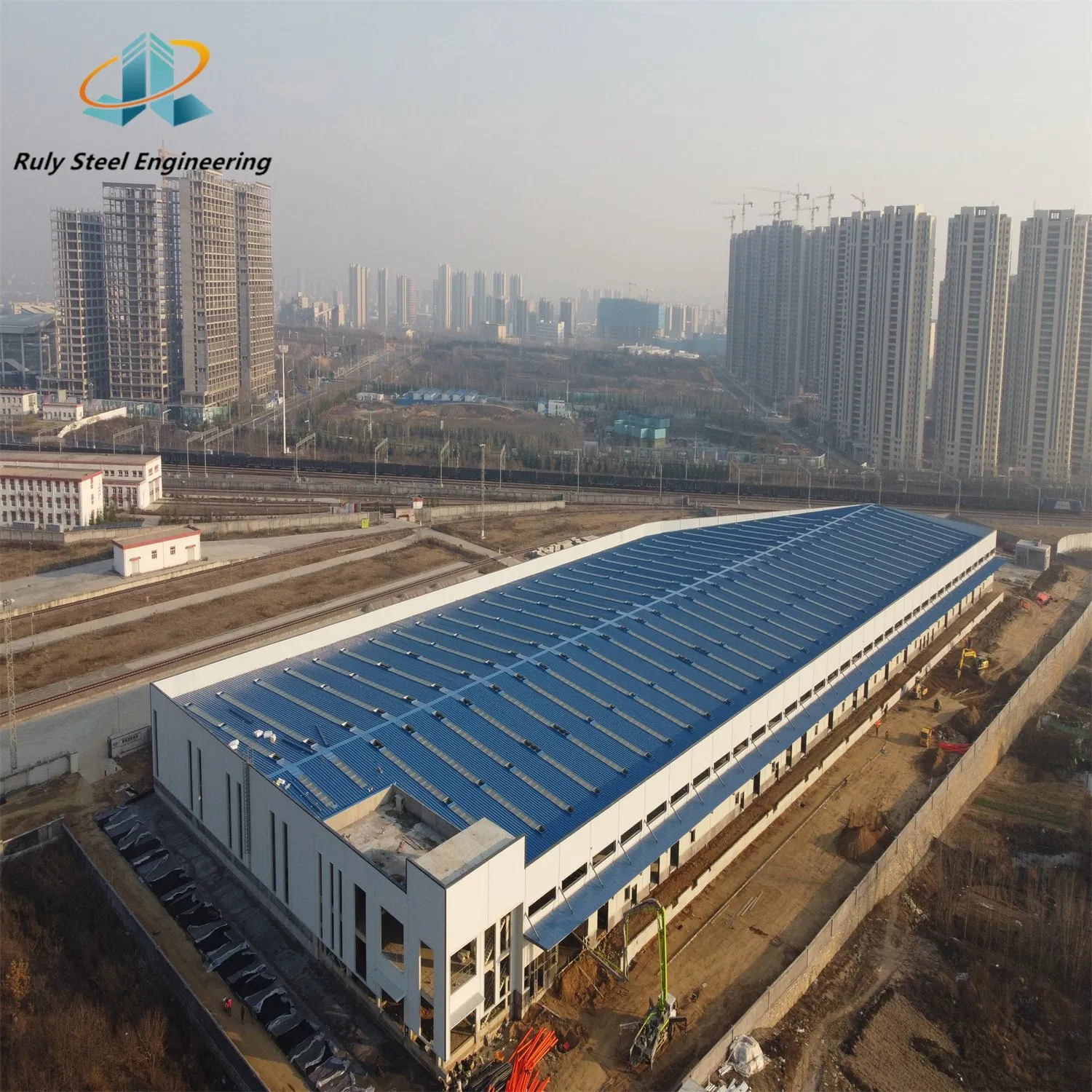

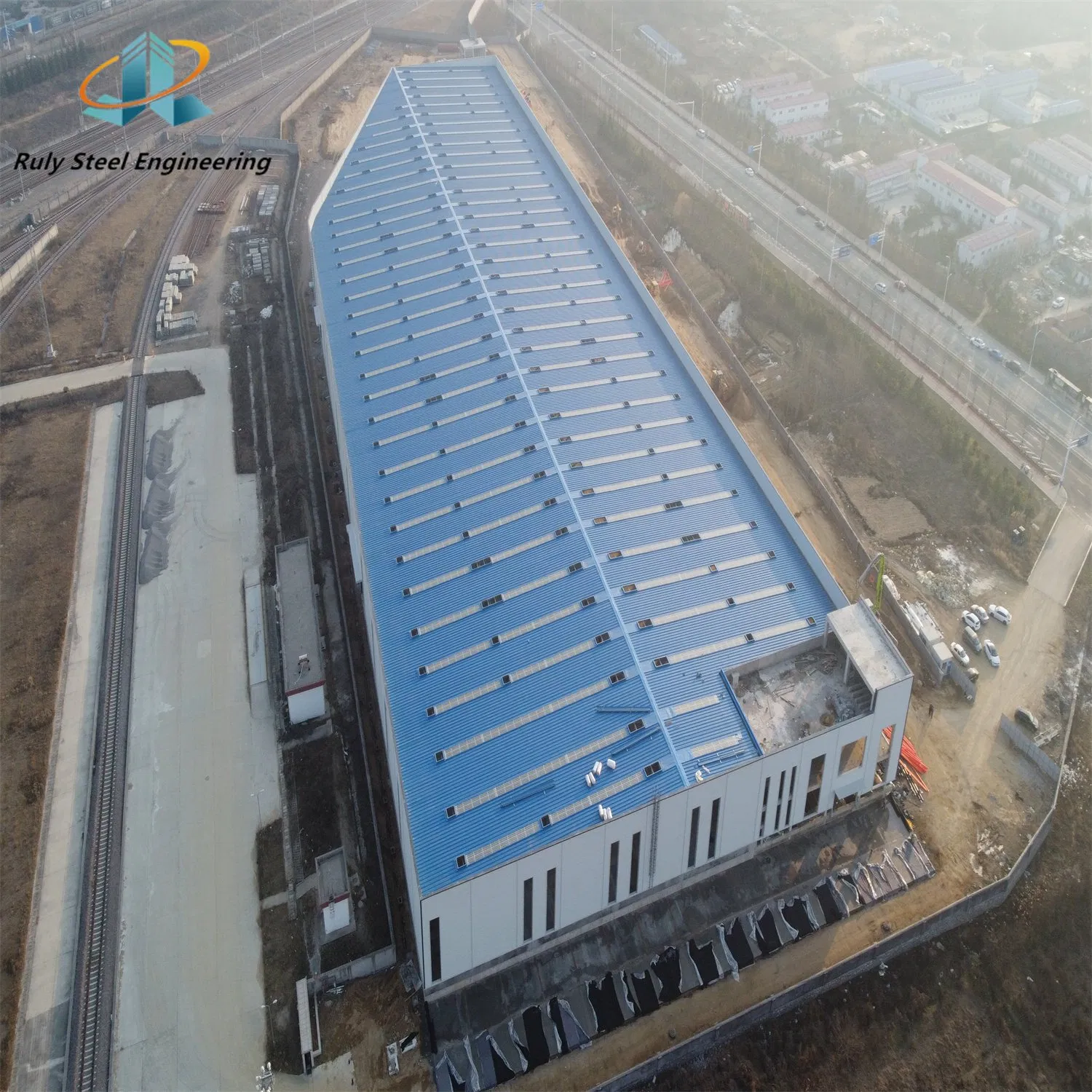

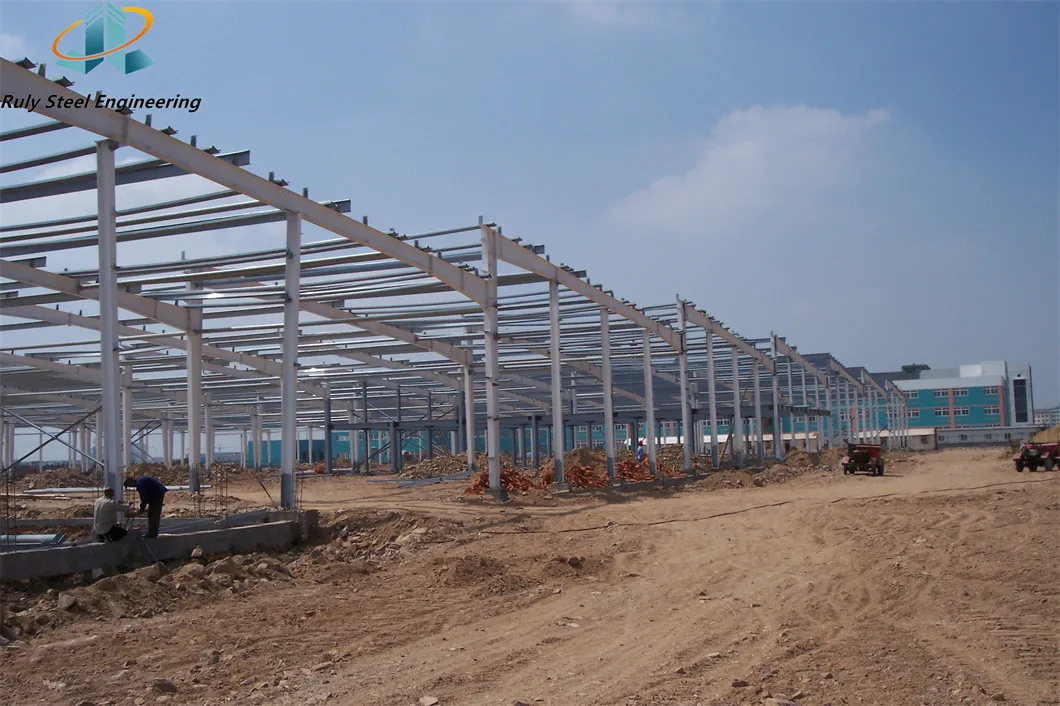

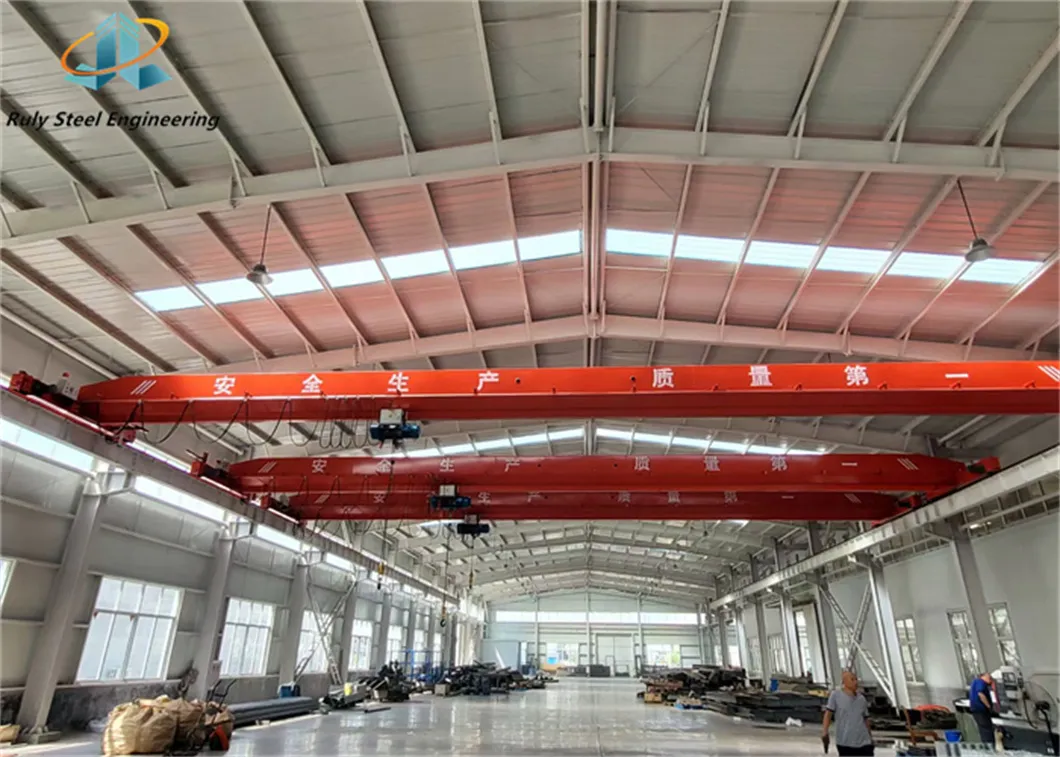

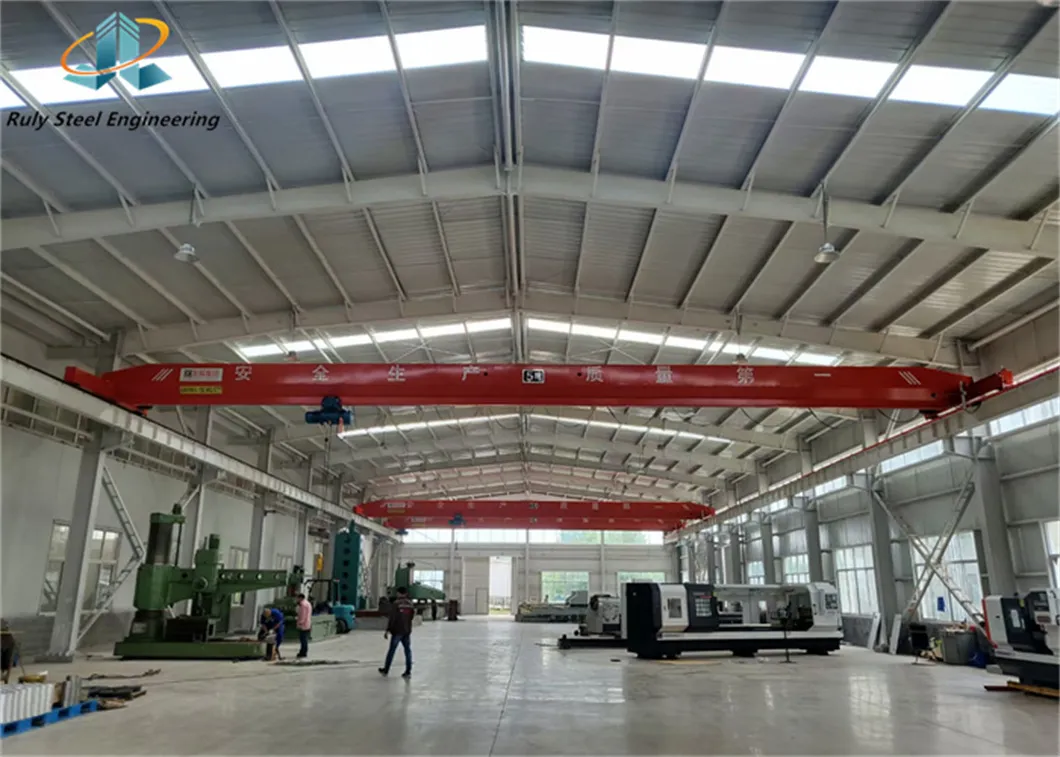

This refers to a Large span steel structure building / galvanized steel structure / prefabricated metal steel structure / Q355B customer customization / steel structure warehouse. Welded H-section steel beams and columns are connected by high strength bolts to form the main frame structure. New-type metal composite panel is utilized as wall and roof insulation panel. Parapet wall is set up at the end wall.

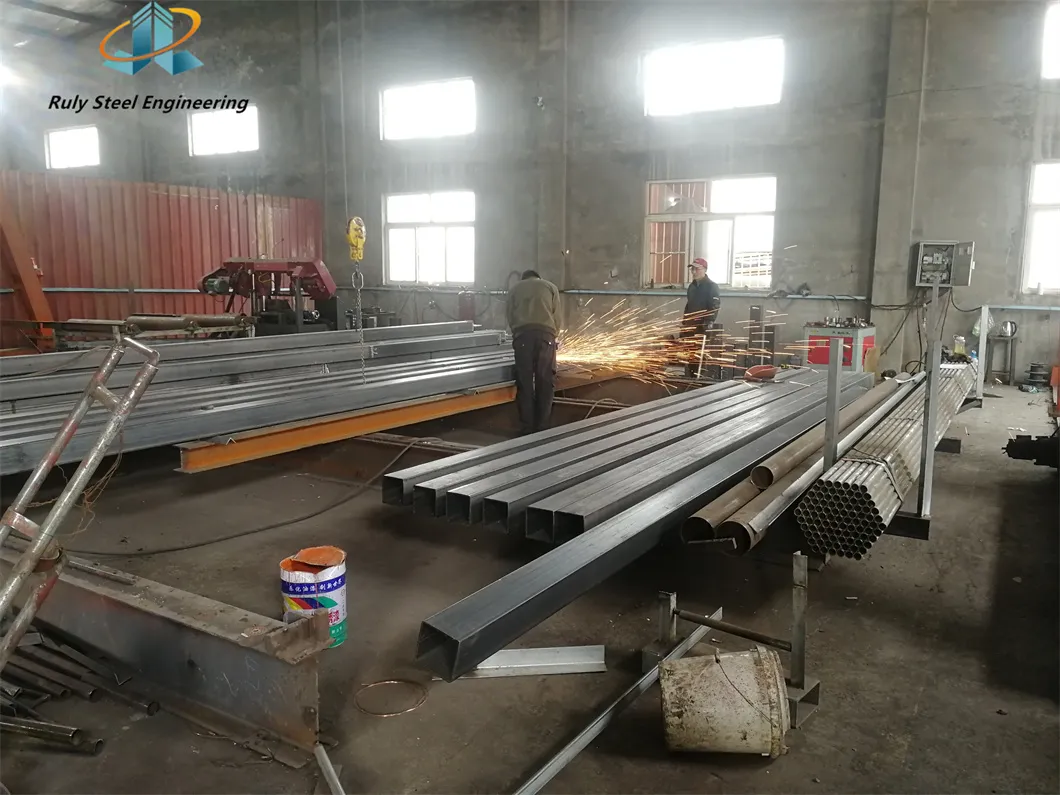

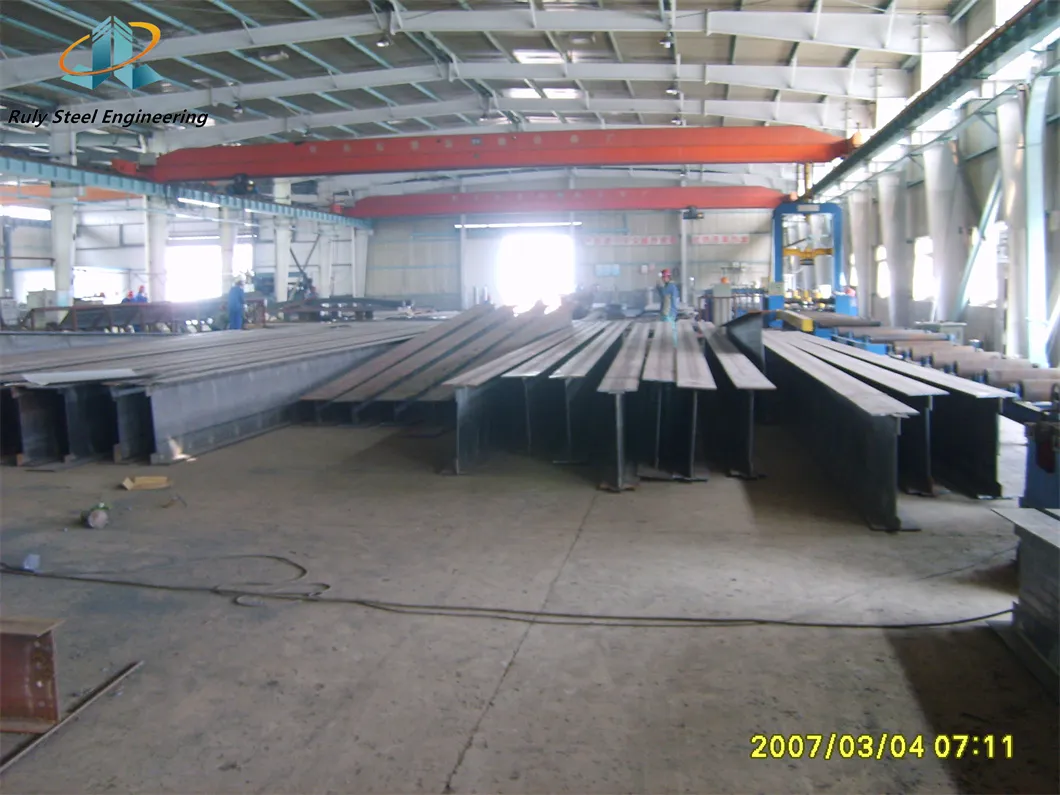

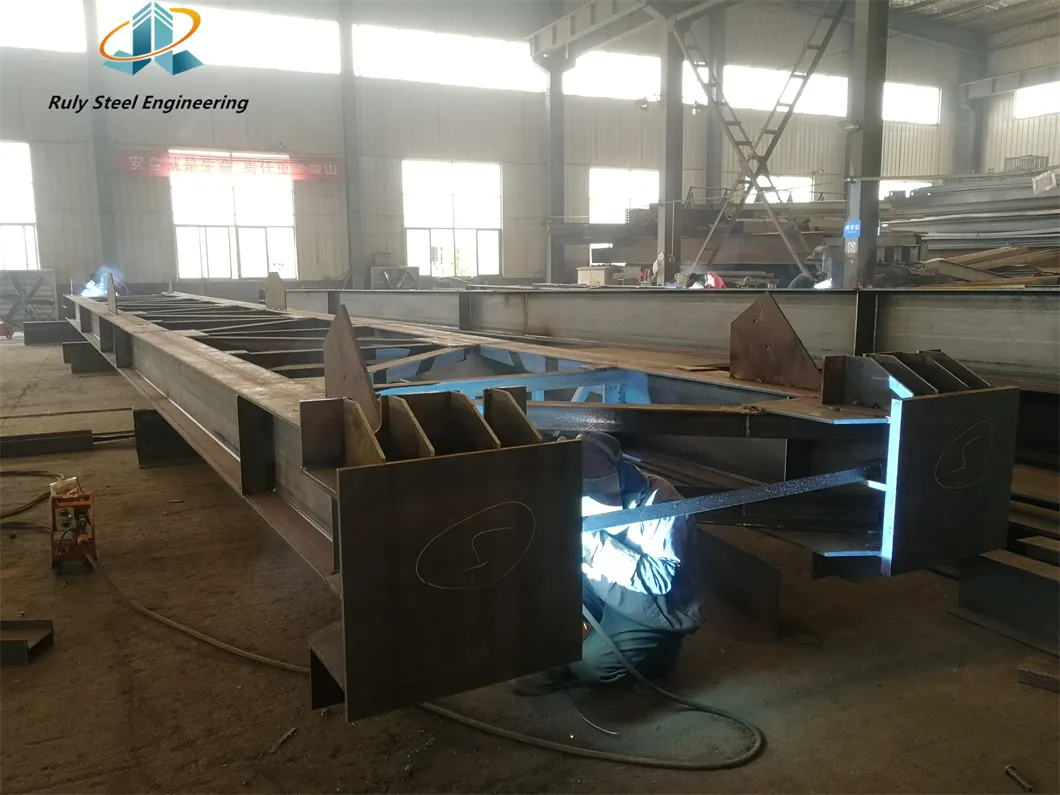

Steel structural members are manufactured in professional processing plants with high precision and reliable quality. The steel structure workshop is energy-saving and environmentally friendly. Compared with traditional masonry structures and concrete structures, the steel structure represents a green building structure system. The walls adopt new lightweight composite wall panels or lightweight blocks, such as high-performance NALC boards, and the floors use composite slabs to meet the requirements of building energy conservation and environmental protection, enabling a high degree of energy efficiency.
| Item Name | Specification | Material Parameter | Technical Treatment |
|---|---|---|---|
| Column | H shape steel | Q235B, Q355B | Paint or Hot dip galvanized |
| Beam | H shape, steel Truss | Q235B, Q355B | Paint or Hot dip galvanized |
| Bracing | Steel rod, Steel pipe, Angle steel | Q235B, Q355B | - |
| Purlin | C or Z shape, thickness: 1.8mm~3.0mm | Q235B, Q355B | Hot dip galvanized |
| Wall & roof panel | EPS, Rock wool, Pu, Glass wool Sandwich panel or Single sheet | Steel T=0.426~0.8mm, insulation T=50~150mm | Alu-zinc 150g, Fluorocarbon paint |
| Door | Sliding or rolling door | Steel or Aluminum sheet, T=1.0~1.5mm | Paint or Hot dip galvanized |
| Window | Alloy-Glass, Aluminium alloy-shutter | T=1.0~2.0mm | Alloy |
| Lighting panel | FRP, T=1.5mm or T=1.8mm | Thermal expansion: 2.2x10-5/cm/cm/ºC | Light transmittance 85% |
| Ventilator | Turbine ventilator, and electric type | Steel, stainless steel, PC | Paint or Hot dip galvanized, 304 |
| Gutter | Galvanized or stainless steel plate | T=2.0mm | Hot dip galvanized, 304 |
| Downpipe | PVC pipe, Color steel pipe T=0.5mm | Φ110, 160, 200 | Paint |
| Bolt | Ordinary, high strength | 10.9S, 4.8s | Hot dip galvanized |
| Anchor bolt | Steel rod M24, M27, M30 | Q235B | - |

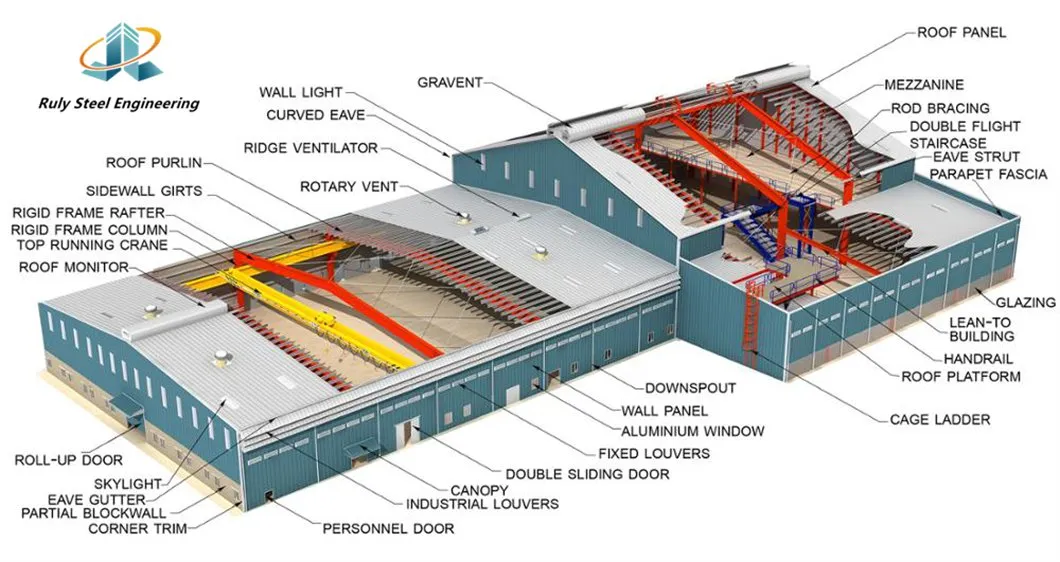

Detailed preliminary layout drawings, 3D Tekla models, and installation drawings are developed to support smooth implementation of each project.

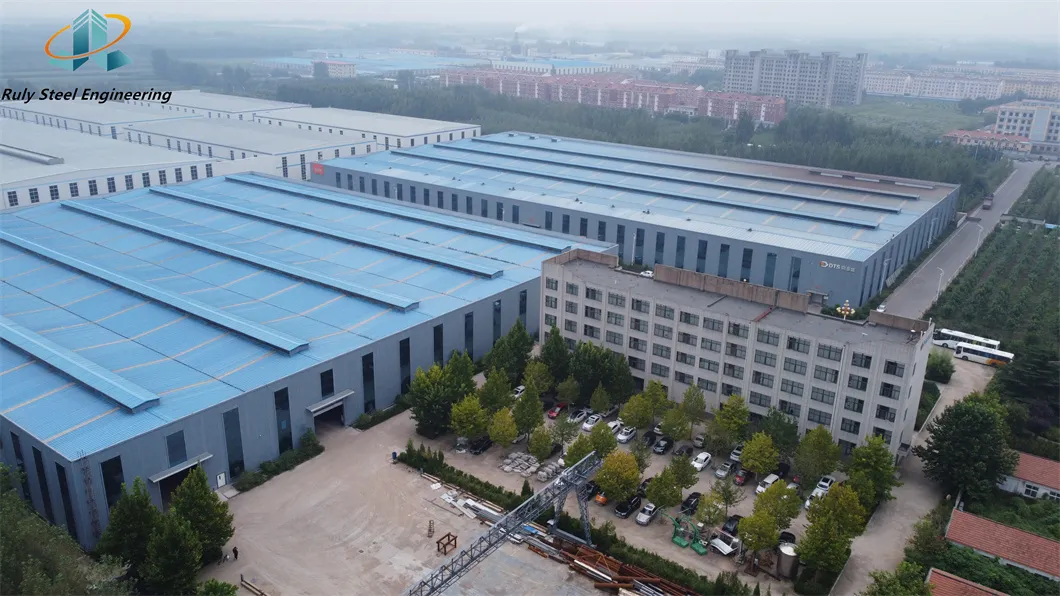

We are a manufacturing factory. You are welcome to visit our production facility at any time to inspect our quality control workflow and see our professional operations firsthand.
Our objective is to deliver the best value by offering the highest quality for the same price, and the most competitive pricing for the matching level of quality. We continuously optimize our fabrication process to help reduce your overall project costs.
Yes. We provide detailed installation and structural drawings for free. Upon request, we can also dispatch our engineers as on-site installation directors or provide a skilled team to guide the process.

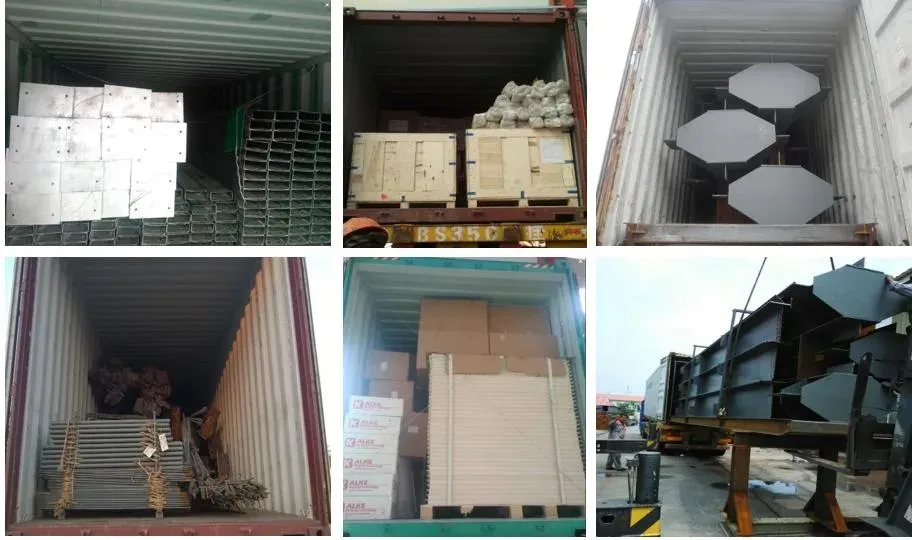

Absolutely. You are welcome to send an inspector not only for the container loading phase, but at any stage during the active production period.

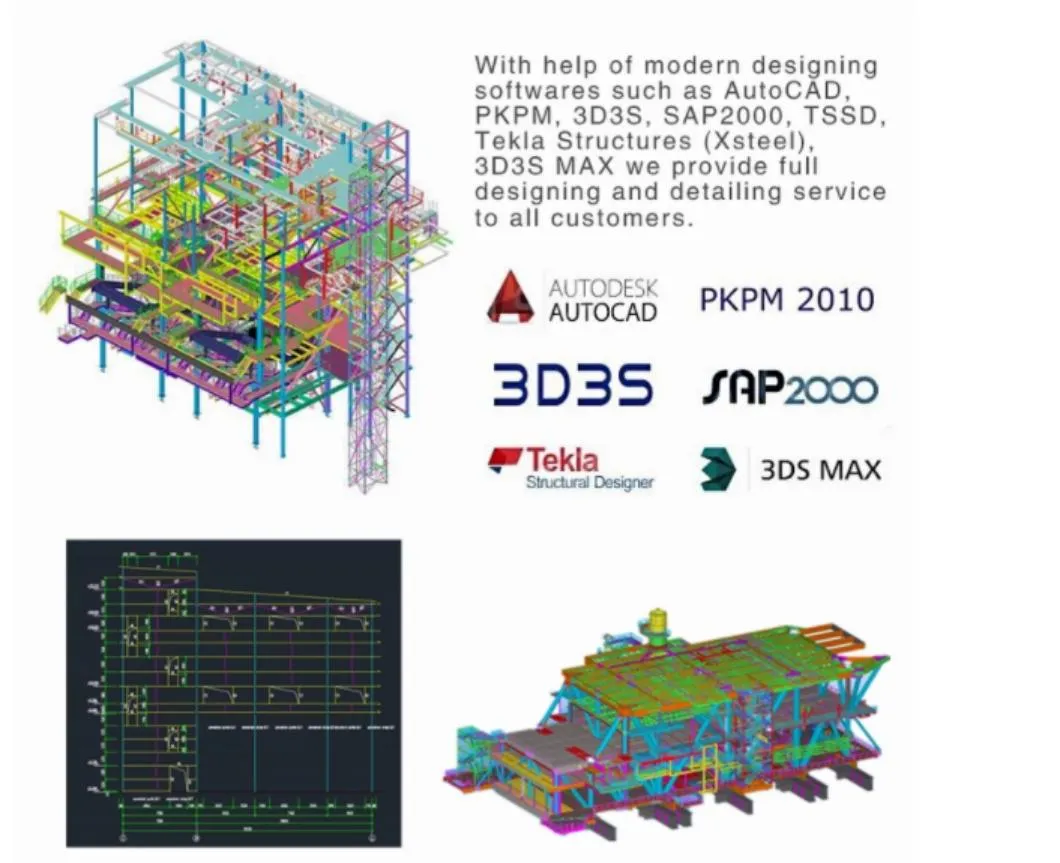

Yes, we design comprehensive solutions based on your requirements. Utilizing tools like AutoCAD, PKPM, MTS, 3D3S, and Tekla Structures, we can engineer complex structural plans for warehouses, office buildings, showrooms, and industrial plants.
Delivery times depend primarily on order quantities. Generally, the delivery time to the main export seaports in China is around 40 days after receiving the initial deposit.
