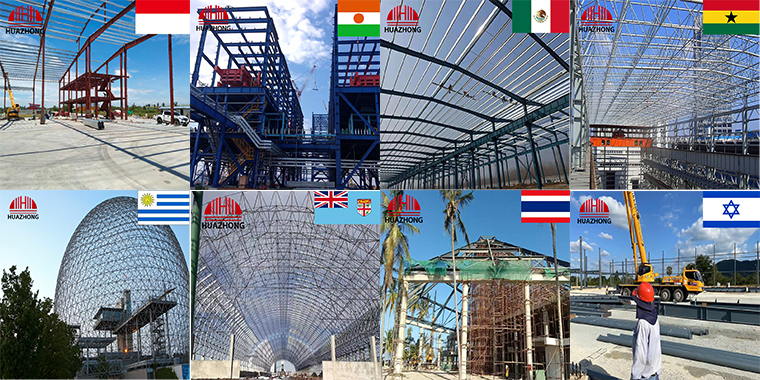

With over 13 years of establishment, our factory has successfully completed numerous large-scale projects spanning commercial, industrial, and residential sectors.
Boasting state-of-the-art production equipment and a highly skilled team of engineers and technicians, we are well-equipped to tackle a wide range of complex projects.
In addition to our core services, we offer comprehensive installation guidance and ongoing maintenance support to ensure long-term performance and satisfaction.
| 1) Size | MOQ is 100 sqm, width x length x eave height, roof slope |
| 2) Span | 9-180m, type: single slope, double slope, multi slope; single span, double span, multi span; single floor, double floor, multi floors |
| 3) Height | 3-10m |
| 4) Slope | 1/20, 1/10, 1/5, 1/3 |
| 5) Column distance | 6-9m |
| 6) Base | Cement and steel foundation bolts |
| 7) Column and beam | Material Q345(S355JR) or Q235(S235JR) steel, all bolts connection. Straight cross-section or Variable |
| 8) Bracing | X or V or other type bracing made from angle, round pipe, etc |
| 9) C or Z purlin | Size from C120~C320, Z100~Z200 |
| 10) Roof and wall panel | Single colorful corrugated steel sheet 0.2~1.2mm thick, such as YX25-207-828 or sandwich panel: sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, YX40-320-960 |
| 11) Accessories | Semi-transparent skylight belts, Ventilators, down pipe, outer gutter, etc |
