Product Description

Industrial Large PVC Tent Commercial Prefabricated Storage Building Warehouse Shelter

Model No.: CT-D5010023
  • Dimensions: W15.25m x L30.5m x H7m
  • Entry/Exit: Both ends configured with one winch door (Size: W5m x H5m)
  • Customizability: The length of the building is not limited
  • Ventilation & Access: Each end equipped with one vent and one man door
Industrial Large PVC Tent Commercial PVC Tent Storage Building
Industrial Large PVC Tent Commercial PVC Tent Storage Building

Product Application

Industrial Large PVC Tent Commercial PVC Tent Storage Building
  • 📌 1. Cover Options: High quality PVC / PE fabric cover, water proof, fire against and UV-resistant.

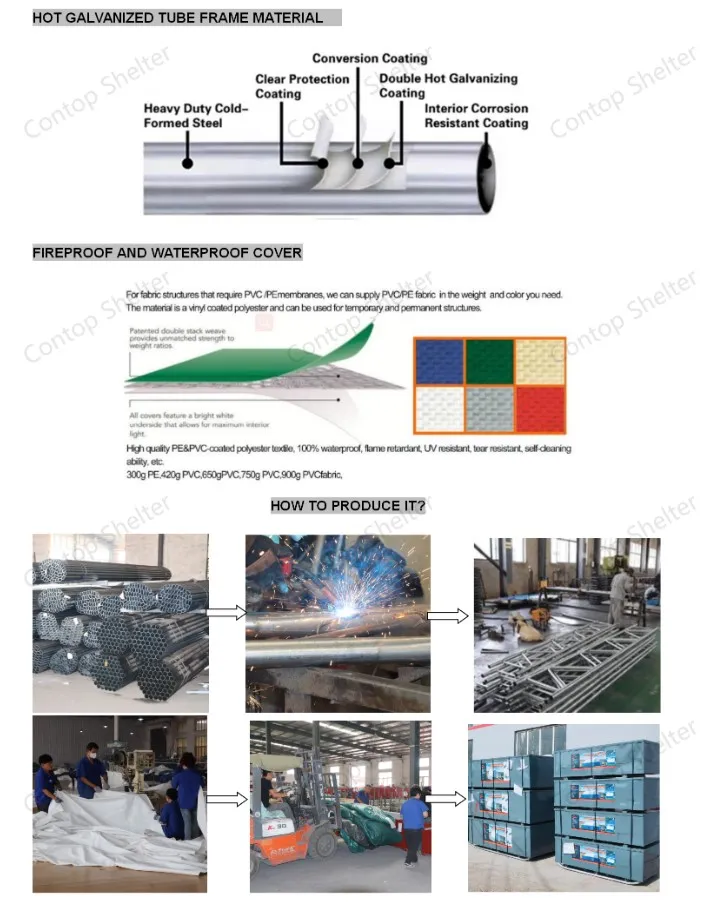

  • 📌 2. Frame Options: Single or double truss. Steel frame: Hot dip galvanized steel.
  • 📌 3. Allowed Temperature Conditions: -30ºC ~ +70ºC (-22ºF~+158ºF)
  • 📌 4. Environmental Loads: Max Wind Load: 24m/s | Max Snow Load: 126kg/m²

Function: Industrial, agriculture, construction warehouse, vehicle storage, aircraft hangar, livestock raising.

Feature: High strength, easy assemble and dismounting, large capacity, excellent stability.

Advantages:

  • Low Cost compared with steel structure warehouse and prefabricated house.
  • All weather suitable, year round applicable. 100% waterproof, fire resistance, flame retardant and UV inhibitor.
  • This product can be easily installed and removed and can be used anywhere, anytime.
  • Life Span: more than 5 years.

Products Details

Technical Specifications
Usage Warehouse, Carports, Temporary office, Farm or industrial equipment (such as Livestock house), Workshop, Parties, Big event...

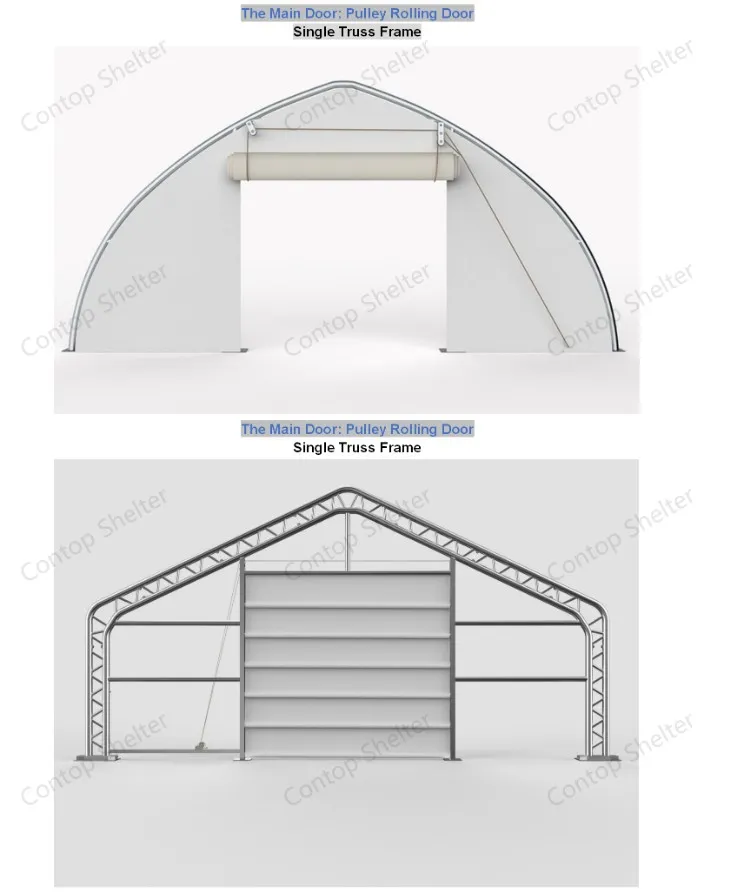

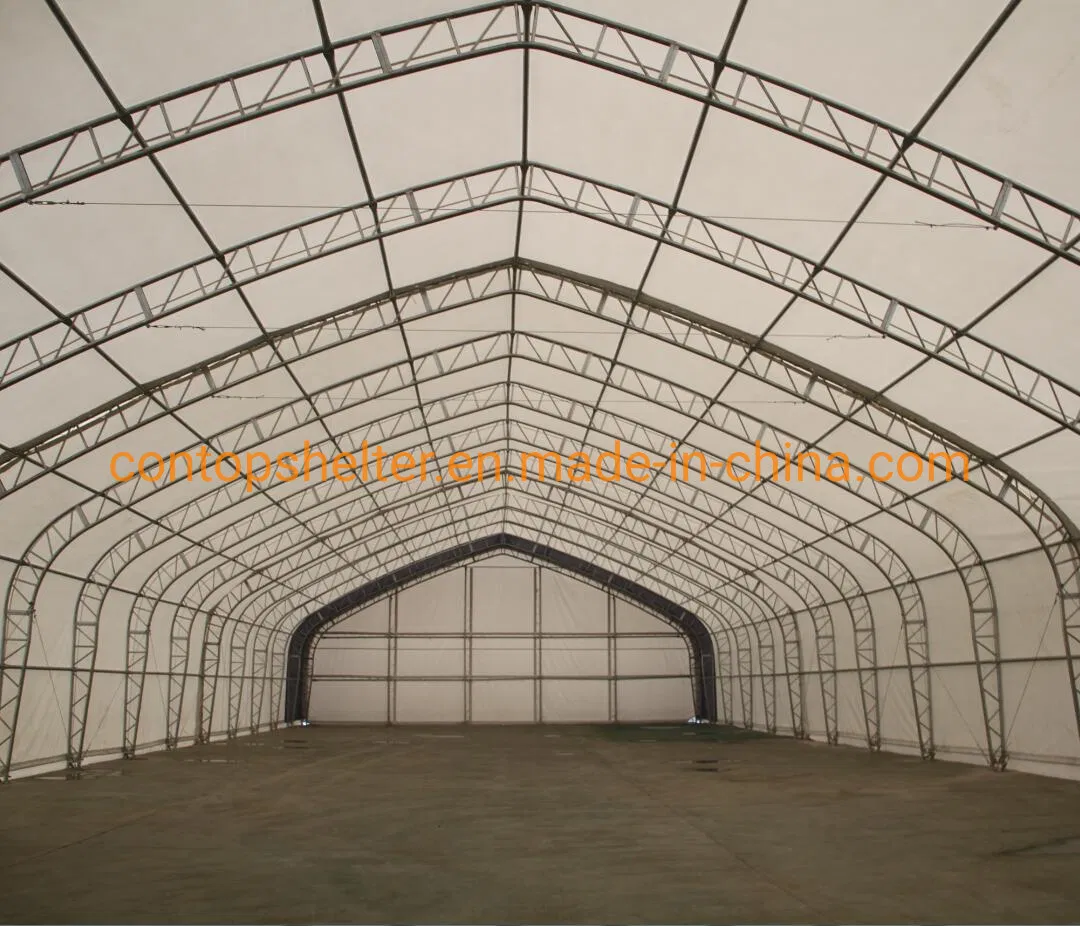

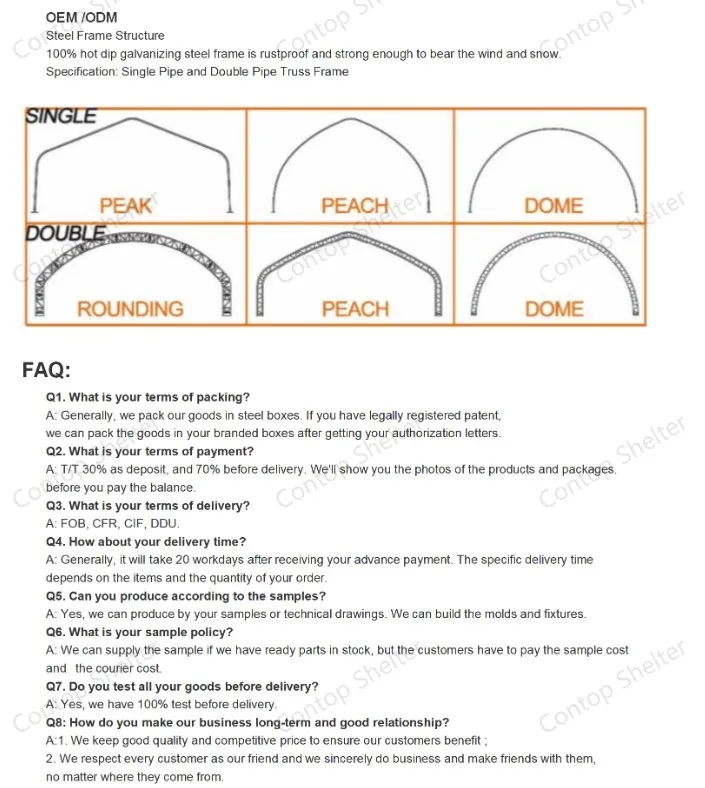

Description Series No.: Peak Roof / Round Style Double Truss Frame
Size 50x100x23ft (15.25 x 30.5 x 7) m
Sidewall Height: 3m

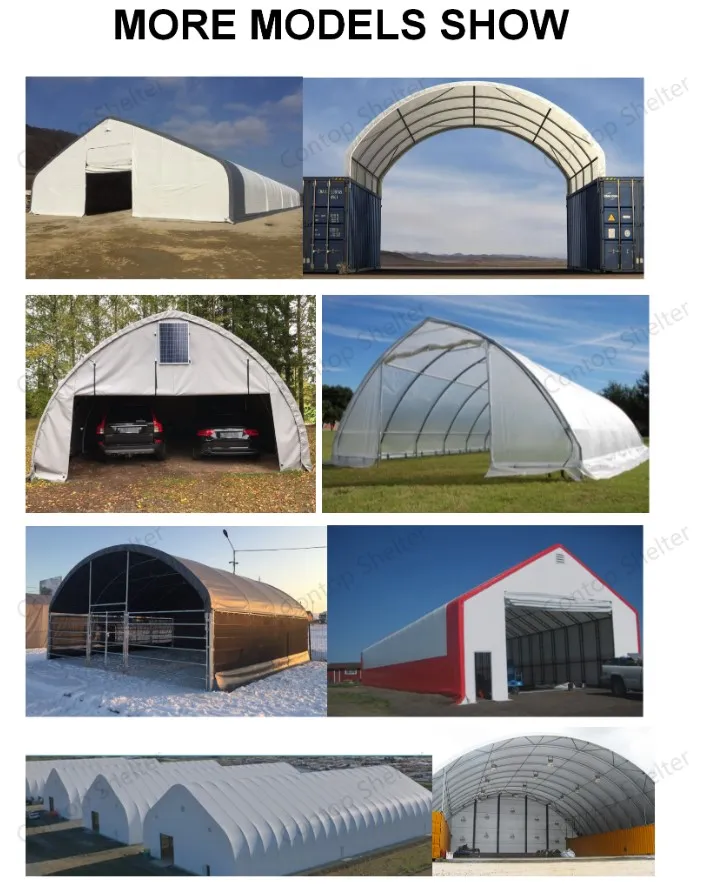

Other Models 508023 / 5010023 / 5012023 / 5015023 / 5020023
Door Winch Doors Size: 5x5m
Fabric Cover Material: 300gsm PE / 450gsm & 650gsm & 750gsm & 900gsm PVC
Color: White / Blue / Forest Green / Army Green / Grey / Red / Orange
Main Structure Material Arch Frame Space: 3.05m
Arch Tube: Double Truss Frame, 60*1.8mm
Purlin Tube: 60*1.5mm

Installation Notes

  • Keep work area clean. Cluttered areas invite injuries.
  • Keep children away. Be aware of personal safety.
  • It is easy assembling if according to our assembly manual. Improper assembly may cause unnecessary mistakes.
  • Be aware of possible windy conditions; fasten the base in concrete if this situation may occur. Remove the cover during hurricane.
  • Clean off snow in time and do not allow snow to sit for extended periods of time.
  • Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not expose to open flame.
Industrial Large PVC Tent Commercial PVC Tent Storage Building
Industrial Large PVC Tent Commercial PVC Tent Storage Building
Industrial Large PVC Tent Commercial PVC Tent Storage Building
Industrial Large PVC Tent Commercial PVC Tent Storage Building
Industrial Large PVC Tent Commercial PVC Tent Storage Building

Frequently Asked Questions (FAQ)

What fabric cover options are available for this storage shelter?
The cover is made of high-quality PE (300gsm) or PVC fabric (available in 450gsm, 650gsm, 750gsm, and 900gsm). It features waterproofing, flame retardancy, and UV resistance.
What are the wind and snow load capacities of the structural frame?
The double truss frame structure is engineered to withstand a maximum wind speed of 24m/s and a maximum snow load of 126kg/m².
Can the length of the warehouse shelter be extended?
Yes, while the standard width is 15.25m (50ft) and height is 7m (23ft), the length of this model can be extended without limits to fit your specific storage requirements.
Is this storage tent suitable for year-round outdoor use?
Absolutely. The hot-dip galvanized steel frame and temperature-resistant cover make it suitable for operation in conditions ranging from -30ºC to +70ºC (-22ºF to +158ºF).
How does this prefabricated shelter compare to a traditional steel building?
It is highly cost-effective, offers quick assembly/disassembly, can be easily relocated, and requires no permanent concrete foundation work unless high wind anchoring is needed.
What maintenance is required for safety during extreme weather?
Accumulated snow must be cleared off the roof regularly. In predicted hurricane or extreme wind conditions, it is advised to remove the fabric cover and ensure the steel base is anchored firmly into concrete.
