| Model NO. | RG415 |
| Type | Multi-Storey Warehouse |
| Certificate | ISO, CE |
| Product Name | China Supplier Custom Made Prefab Steel Industrial |
| Material | Light Steel Frame |
| Column and Beam | Hot Rolled or Welded H Section, I Section |
| Surface Processing | Painted or Galvanized |
| Steel Grade | Q235B, Q345b |
| Roof & Wall Panel | PU, EPS, Rock Wool/Fiber Glass Sandwich Panel |
| Window and Door | PVC or Aluminum Alloy; Sliding Door or Roll up Door |
| Service Life | More Than 50 Years |
| Drawing Design | Design The Drawing as Your Demand |
| Installation Guidance | Engineer Helps to Instruct Installation |
| Additional Fittings | Overhead Crane, Mezzanine Floor, Ventilation |
| Purlin Options | C or Z Type Section |
| Skylight Design | Transparent Sheet |
| Foundation Type | Cement Foundation |
| Transport Package | Bulk Cargo |
| Production Capacity | 5000 Ton Per Month |
| Package Size | 100.00cm * 100.00cm * 100.00cm |
| Package Gross Weight | 100.000kg |

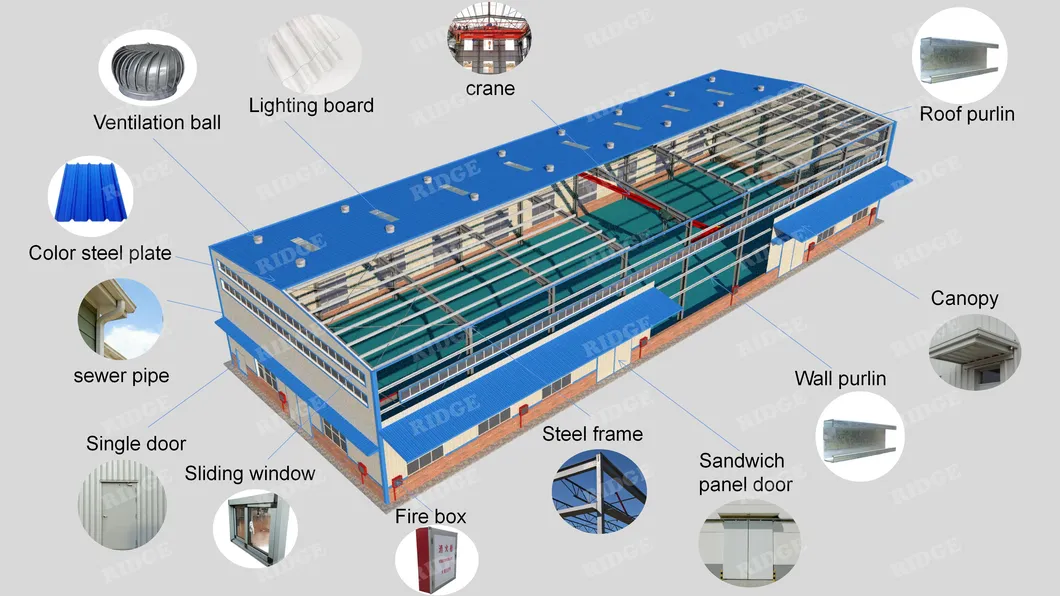

| System Component Specifications | |
|---|---|
| 1) Dimensions (m) | Width * Length * Height (customizable depending on demands) |

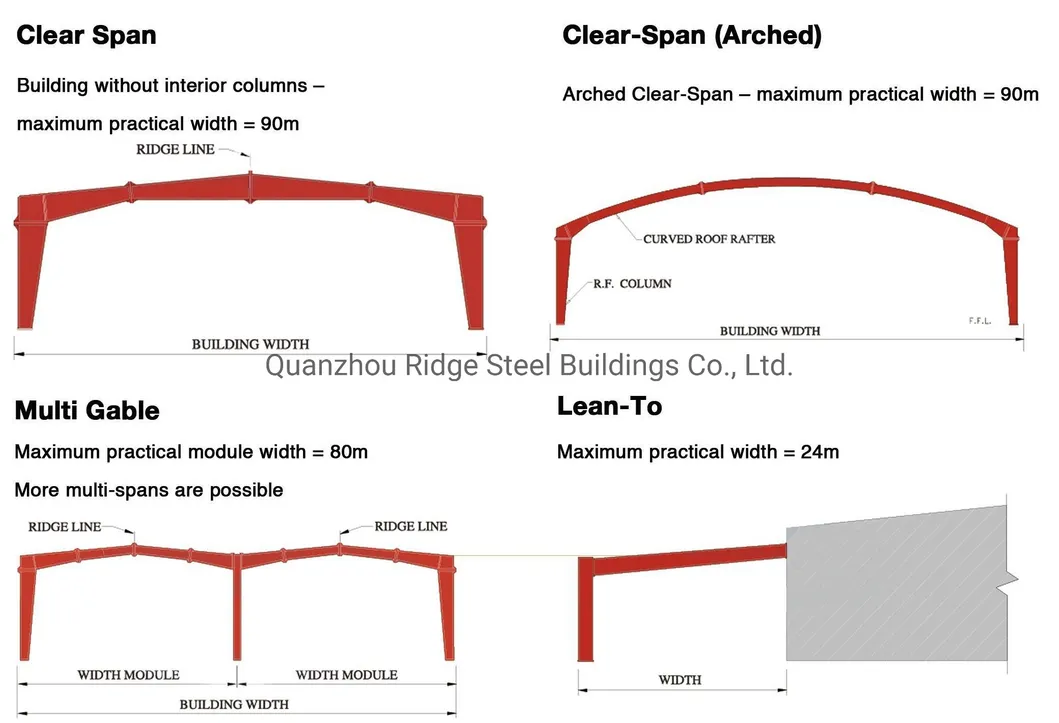

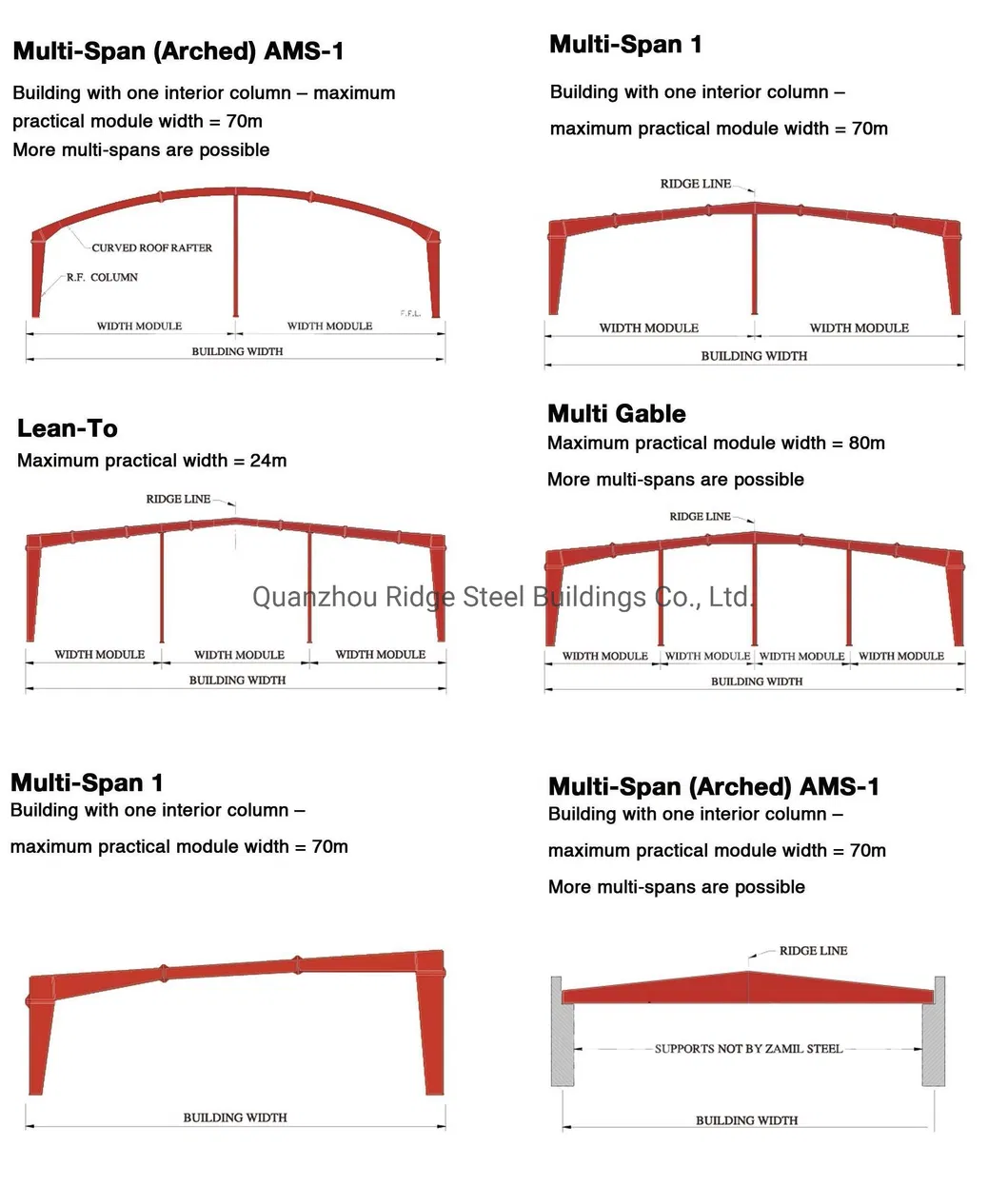

| 2) Structural Layout | Single slope, double slope, Multi-slope; Single span, double-span, Multi-span; Single floor, double-floor, Multi-floor |
| 3) Base Anchor | High-strength steel foundation bolts |
| 4) Steel Frame Work | High-grade material Q345 (S355JR / Gr50) or Q235 (S235JR) steel; Straight cross-section or Variable cross-section; Welded H section painted or galvanized |
| 5) Bracing Components | X-type, V-type, or custom-pattern structural bracing built from high-strength angle or round steel bars |
| 6) Wall & Roof Purlins | C section channel or Z section channel, standard sizes ranging from C80 to C300, and Z100 to Z300 |
| 7) Roof & Wall Cladding | Single color corrugated steel sheet (0.326~0.7mm thick); Sandwich panels (EPS, Rock Wool, Glass Wool, PU insulation) in 50mm, 75mm, 100mm, 120mm, 150mm, 200mm thicknesses; PVDF, SMP, HDP, PE coating options available |
| 8) Window Systems | UPVC/PVC or Aluminum Alloy framing configurations fitted with heavy-duty structural glass |
| 9) Entry Doors | Exterior Options: Rolling shutter doors or sliding setups. Interior Options: 50mm thickness EPS sandwich panels utilizing aluminum alloy frames |
| 10) Gutters | Color steel sheet, galvanized steel, or stainless steel options |
| 11) Rainspout Pipes | Industrial-grade PVC pipe network |
| 12) Connections | High-strength anchor bolts, intensive structural bolts, and self-drilling fastener screws |
| 13) Added Accessories | Skylight panels, mechanical ventilation louvers, and customized fast-assembly hardware |
| 14) Surface Processing | Blast-cleaning Sa2.5 rating; Two layers of anti-rust paint primer or structural hot-dip galvanization |

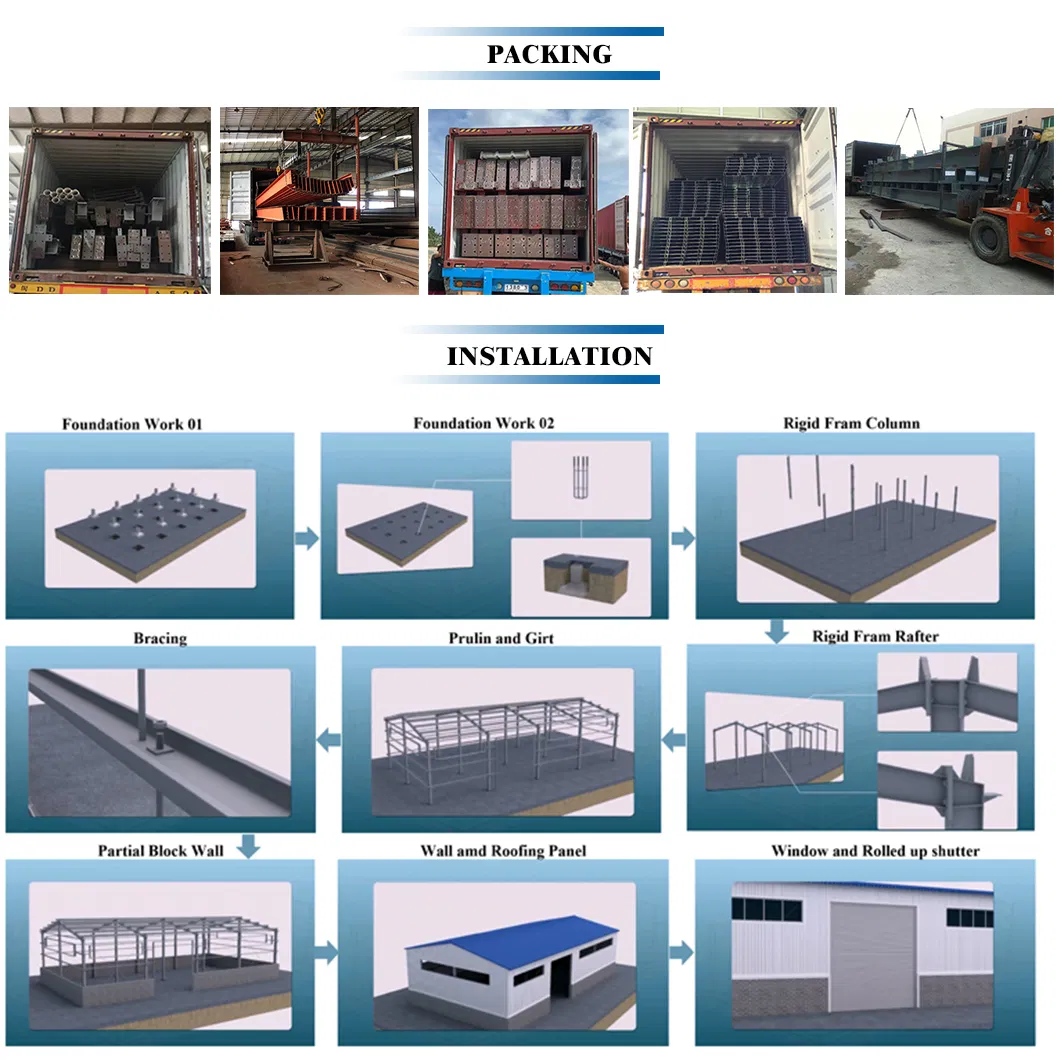

| 15) Export Packing | Main heavy steel frames loaded loose/bulk in 40' GP; Roof, wall panels, and components loaded securely in 40' HQ containers |

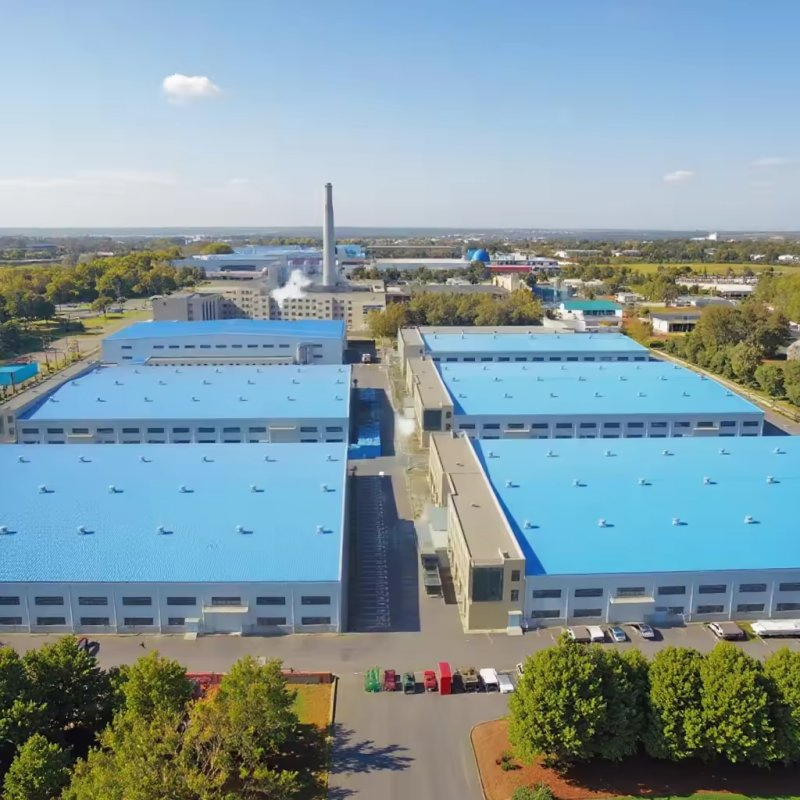

Founded in 1998, our enterprise specializes in the professional design, custom fabrication, and systematic erection of high-durability steel buildings. Equipped with a highly-efficient workshop, an experienced architectural engineering design unit, and seasoned erection technicians, we offer customers superior quality structural steel configurations at competitive rates.
Please prepare the following parameters to calculate your steel structure pricing:
| Standard Application Structure | Popular Configuration Profile | Standard Building Height |
|---|---|---|
| Steel Warehouse Unit | 30 x 50 m | 5 m |
| Steel Workshop Unit | 40 x 60 m | 7 m |
| Storage Shed Unit | 16 x 36 m | 4 m |
