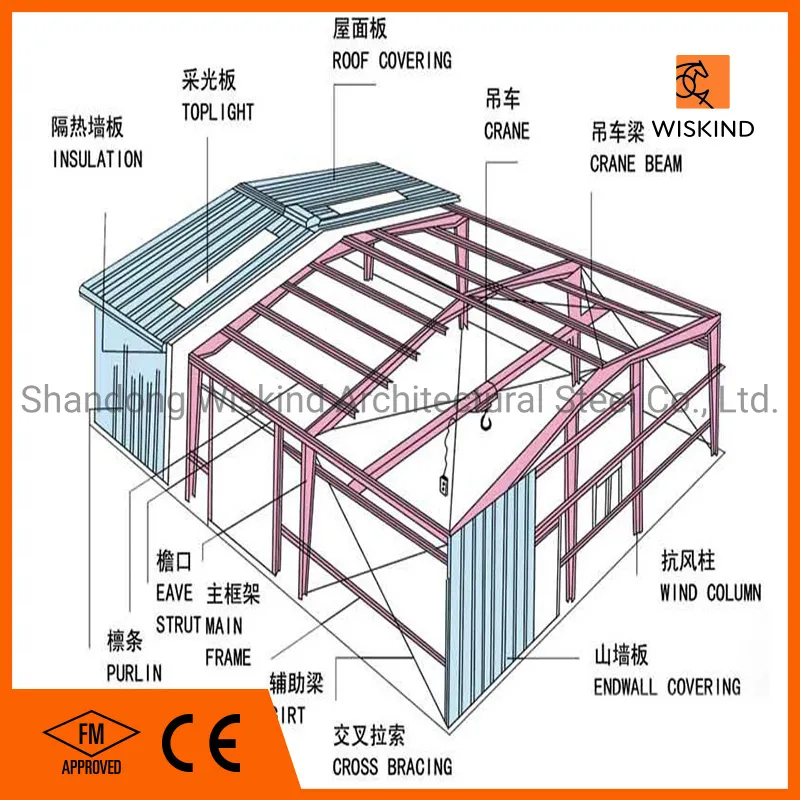

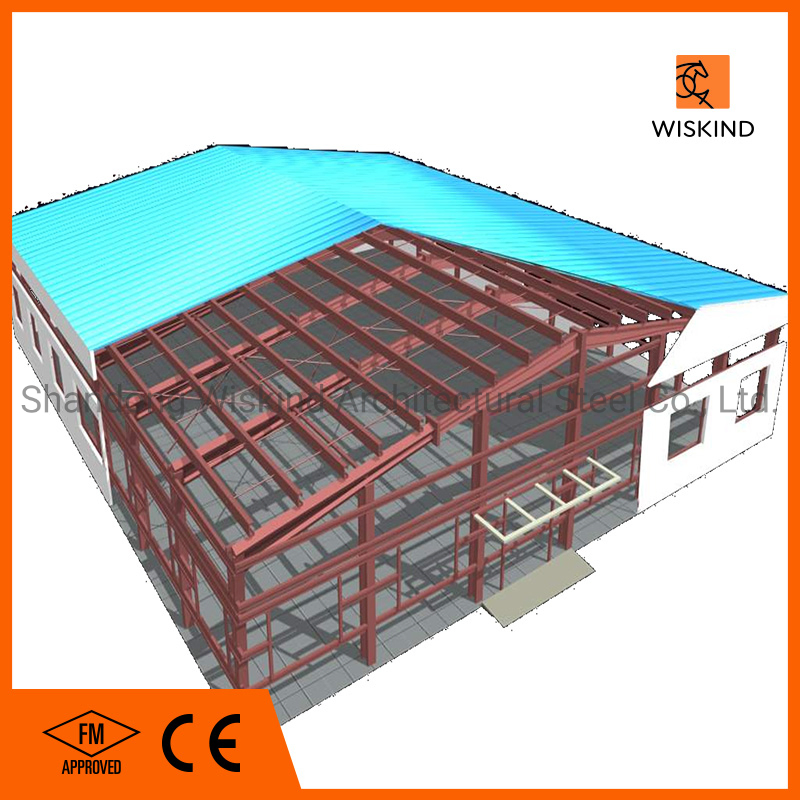

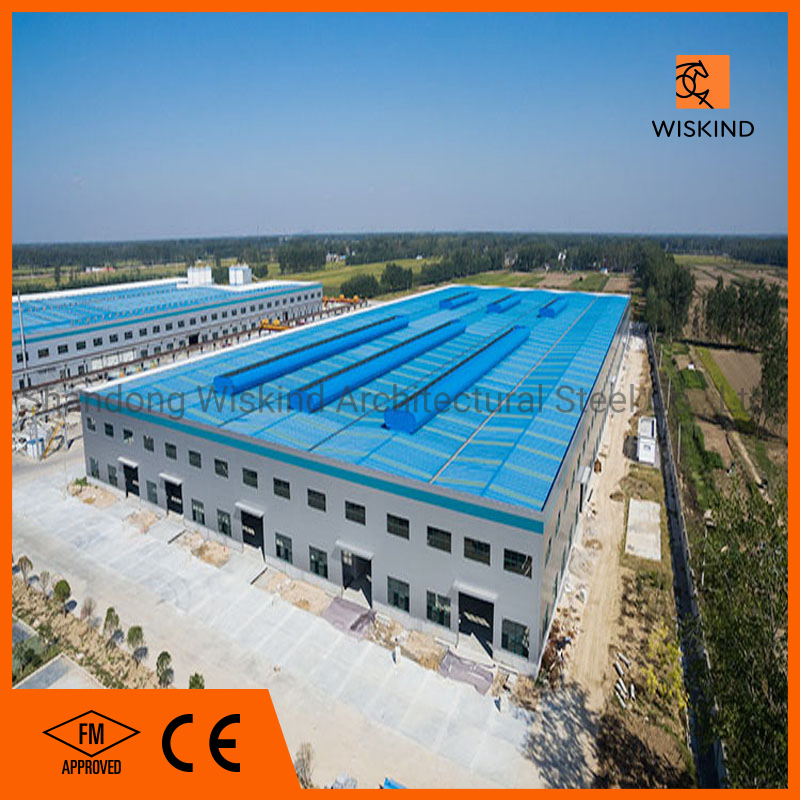

Steel structure workshop included the main structure (steel beam/girder, steel column/pillar), the secondary structure (roof and wall purlin, steel bracing, tie-bar etc), door and windows, and other accessories.
| Parameter | Details |
|---|---|
| Main steel yield point | 235MPa/355MPa |

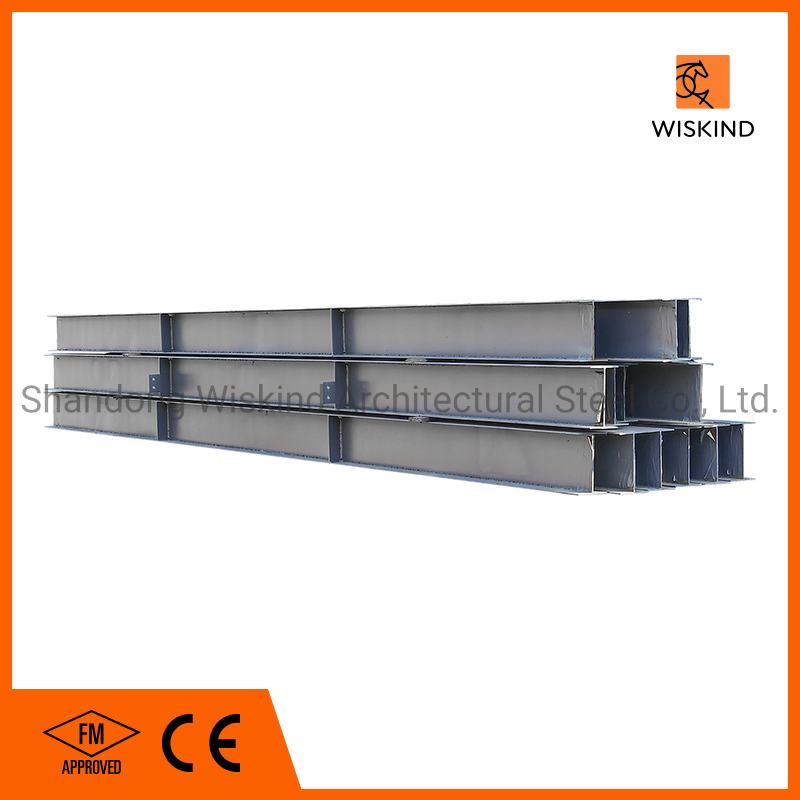

| Column & Rafter | Welded H-shaped Section steel, Pre-painted. |

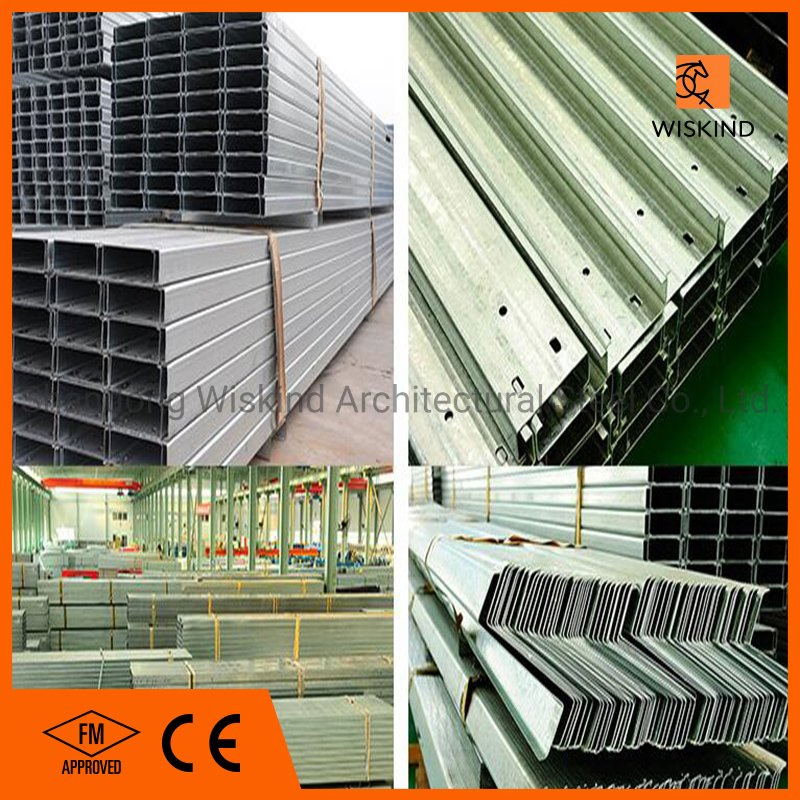

| Galvanized steel purlin | C-shaped / Z-shaped |

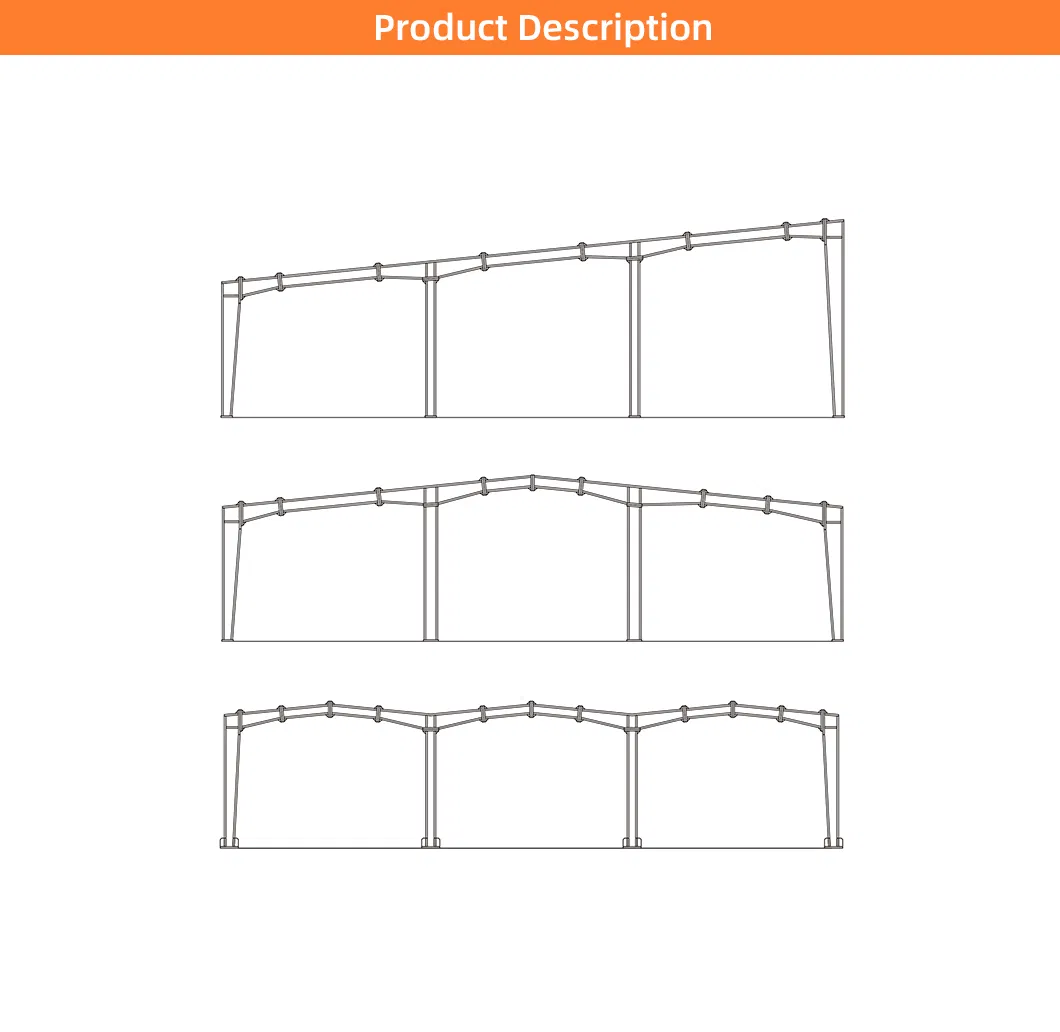

| Span | Single or multiple. The max distance is 36 meters without middle column. |
| Height | 4.5~9.0 meters (if no bridge crane) |
| Skylight | Optional |
| Ventilator | Optional |
| Bridge crane | Optional. If need it, lift capacity and lift height are needed. |

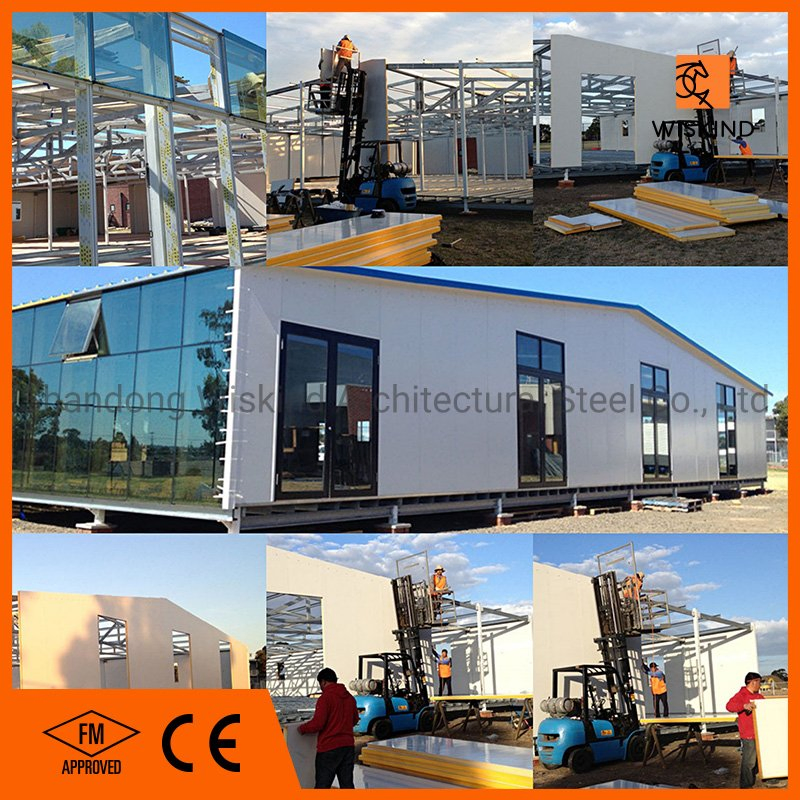

| Roof & Wall | Precast pre-painted steel sheet or sandwich panel. |
| Core material of sandwich panel | PU, Rock wool, glass wool, EPS. |
| Door & Window | PVC or Aluminum alloy. Sliding door or rolling shutter door. |
| Drawing & Design | According to your drawing or our design as per customer's dimensions and requests. |
| Required design Load | Rainfall / Wind load / Snow load / Seismic magnitude. More details preferred. |
| Packing | Naked loaded in shipping container or as per customer's requests. |
With more than 40 years experience, we have obtained the highest grade qualifications for steel structure construction:
If you require custom engineering and layout services, please supply the following parameters:
| No. | Required Input Data | Specified Target Values |
|---|---|---|
| 1 | Location (where will it be built)? | _____ Country, Area |
| 2 | Dimension (Length × Width × Height)? | _____m × _____m × _____m |
| 3 | Wind load (or max. wind speed)? | _____ km/h |
| 4 | Rain & snow load (or max. snow height)? | _____ kn/m², _____ mm |
| 5 | Anti-earthquake level? | _____ Level |

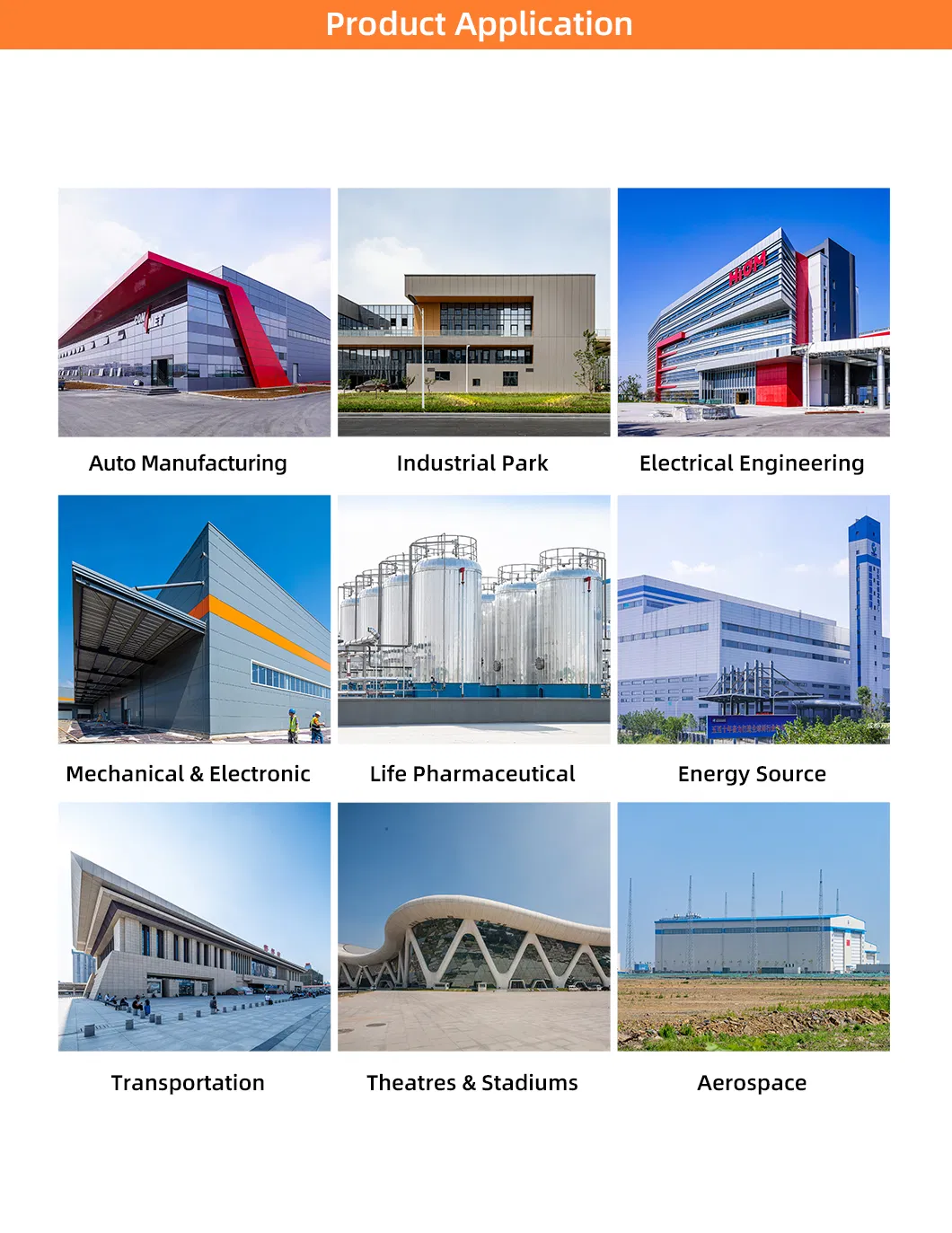

| 6 | Usage of the building? | ____________________ |
| 7 | Roof and wall panel choice? | Sandwich panel (EPS, fiberglass, rockwool, PU) or corrugated steel sheet + glass wool field-assembled. |
| 8 | Is a brick wall required? | If yes: 1.2m high or 1.5m high? |
| 9 | Is a crane required? | If yes: _____ units; Max capacity _____ tons; Max lifting height _____ m |
