China Supplier Custom Made Prefab Steel Industrial
Material
Light Steel Frame
Column and Beam
Hot Rolled or Welded H Section, I Section
Surface Processing
Painted or Galvanized
Steel Grade
Q235B, Q345b
Roof & Wall Panel
PU, EPS, Rock Wool/Fiber Glass Sandwich Panel
Window and Door
PVC or Aluminum Alloy; Sliding Door or Roll up Door
Service Life
More Than 50 Years

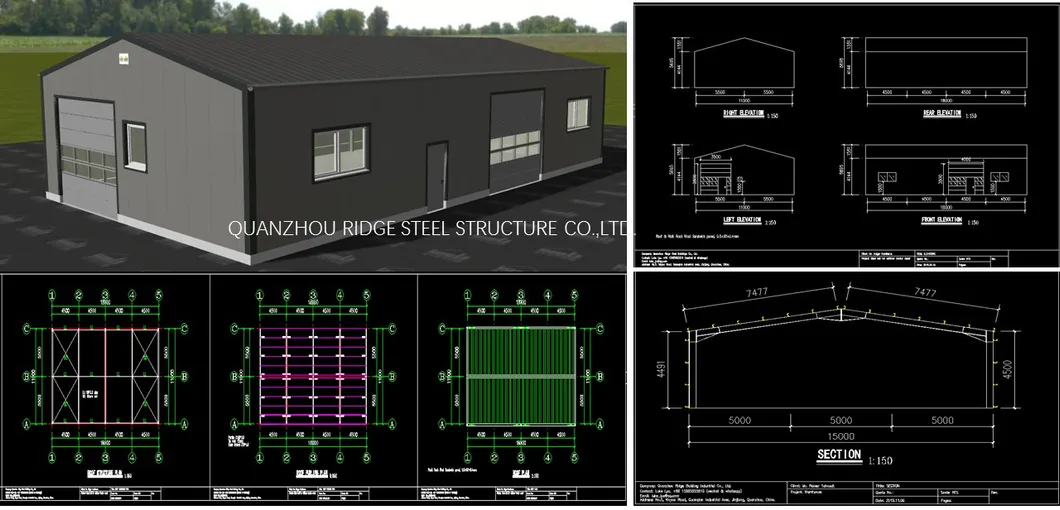

Drawing
Design The Drawing as Your Demand
Installation
Engineer Helps to Instruct Installation
Additional
Overhead Crane, Mezzanine Floor, Ventilation
Purlin
C or Z Type Section
Application
Steel Workshop, Steel Structure Platform
Warranty
24 Months
Transport Package
Bulk
Specification
Max 5.8m for 20GP; 11.8m for 40GP/HQ
Trademark
ridge, Carbon Structural Steel
Origin
China
HS Code
9406
Production Capacity
5000 Ton Per Month
Product Description
Steel Structure Building Self Storage Steel Building Warehouse Prices Warehouse Workshop Hangar Commercial and Farm Buildings
Steel structure workshop is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.
Key Characteristics:
✓High strength & Light dead load
✓Good plasticity and toughness
✓Easy fabrication & High accuracy
✓Save 65% of construction time
✓Large span & Flexible space
✓Reduce construction waste and noise
✓98% steel components can be recycled, environmentally friendly
Technical Specifications
No.
Component Name
Specification details
Main Steel Frame
1
H section steel
Q345 steel 8mm/10mm
2
Welding
Automatic Submerged Arc Welding
3
Rust removing
Sand blasting
4
Surface processing
Alkyd Paint or galvanized
5
Intensive bolt
Grade 10.9
Supporting System
1
Angle Brace
L50x4, Steel Q235, Process and Painting
2
Cross Support
Φ20, Steel Q235, Process and Painting
3
Belt Bar
Φ89*3, Steel Q235 Process and Painting
4
Small Brace
Φ12, Steel Q235 Process and Painting
5
Ordinary Bolt
Galvanized Bolt
Roof System
1
Purlin
C160*60*2.5, Steel Q235, painting and Galvanized
2
Out-roof Panel
Sandwich Panel or corrugated steel plate
3
Transparent lighting panel
6mm thick PVC
4
Accessories
Glass glue, self-tapping screw etc.
5
Edge Cover
Made of color steel sheet thickness 0.5mm
6
Gutter
Made of steel sheet thickness 0.8mm
7
Rainspout
Φ110PVC
Wall System
1
Purlin
C160*60*2.5, Steel Q235, Paint
2
Wall
Sandwich panel or corrugated steel plate
3
Accessories
Glass Cement, Self-tapping Screw etc.
4
Edge Cover
Made of color steel sheet thickness 0.5mm
5
Ventilation
Ventilation ball
6
Door
Rolling door/sliding door
7
Window
PVC / alu / steel frame window
8
Crane
With or without crane in 5 tons to 20 tons
Recent Projects Cases
COUNTRY
TYPE
SIZE
Philippine
Fruits processing workshop
4982m²
Canada
Storage shed
750m² * 6
Canada
Riding area
600m²
Malawi
Sawmill workshop
2160m²
Germany
Steel hall
300m²
Mauritius
Steel warehouse
1116m²
Zambia
Steel structure building
1383m²
If you are interested in a structure for commercial or industrial use, we've got you covered! Because we custom build all of our structures, we can make yours virtually as large as you need with the exact specifications.
Professional Services Lifecycle
01
DESIGN
Our team of steel structure design experts work with you to define your project, balancing scope and budget. Within that process, we will provide scope drawings, budget confirmation, and schedule. Each building is customized to provide lasting value.
02
ENGINEER
After your design is finalized, it is submitted to engineering. The engineering team will evaluate the structure to ensure it meets the design criteria and local code requirements. Once complete, they will prepare final drawings.
03
FABRICATE
Steel buildings come pre-cut, pre-drilled, and ready for onsite assembly. Our fabrication process ensures the fabricated materials are cut precisely to specification and packaged ready for delivery.
04
DELIVER
Before a building is delivered, our logistics professionals will verify bill of materials quantities at the factory to guarantee completeness and prompt dispatch.
05
SUPPORT
We fabricate all structures to be erected on site by yourself or a professional. Regardless, our project management team will be ready to support you through completion.
Product Showcase
Supported Applications & Specifications
1000 sqm building4 story prefabricated apartment buildingaircraft hangarAustralia farm shedbailey bridge beam build warehouse buildingbuilding constructionbuilding materialbuilding housescanopiescarbon framecattle farm buildingcattle shedchicken farmchicken farm building designchicken housechina peb pricechurch steel buildingcold storage warehouseconstructionconstruction buildingconstruction materialdairy farm sheddeformed steel bardeformed steel rebardoors garage drawingmaterial factory building rentfactory warehousefence postfish farmfoldable housesfurring channelgalponesgalvanized hallgalvanized steel structure buildinggalvanized structural profilegarage garden shedgas station greenhouse factoryh beam hangarhigh rise buildinghorse stablehospital structureshouse buildinghouse product i beam priceindustrial buildingindustrial hangars at lowcostindustrial steel shedinsulated shedipe 120 pricelight gauge steellight houselight prefab steel storelight steel structurelivestock farmluxury prefab villaluxury villamachinery shed Australiametal buildingmetal building for salemetal building kitsmobile homemobile house 35mmodern steel structure buildingmodular buildingmodular building prefabricated housesmodular housenew building construction materialspermanent prefabricated office buildingpig houseportable houseportable steel structure buildingpoultry farmpoultry farm housepoultry housepoultry layer housepre fabric house villaprefab buildingprefab church buildingprefab garageprefab homeprefab houseprefab warehouseprefabricated apartment buildingprefabricated blast resistant office buildingprefabricated buildingprefabricated high rise steel buildingprefabricated homeprefabricated hotel buildingprefabricated houseprefabricated house buildingprefabricated house concreteprefabricated house priceprefabricated house villaprefabricated office buildingprefabricated poultry houseprefabricated sandwich panel housesprefabricated shedprefabricated stainless steelprefabricated steel buildingprefabricated steel structureprefabricated villaprefabricated warehouseprefabricated warehouse buildingprefabricated work warehouseprop pull behind tiny houserebarreinforcing steel rebarrent warehouseroofing materialssandwich panel buildingscaffolding propshedsheep shedshipping container homesshoring propskylight glassslotted channelsmall industries hangarsmall steel buildingspace framesport hall steelsteel aircraft hangarsteel beamsteel buildingsteel building kitsteel constructionsteel construction hallsteel cow shedsteel decksteel fabrication softwaresteel farm shedsteel for constructionsteel framesteel frame housesteel frame kit housesteel frame structure housesteel frame villasteel hallsteel housesteel house framesteel per kgsteel propsteel shedsteel sheet pilesteel structuresteel structure buildingsteel structure constructionsteel structure fabricationsteel structure factorysteel structure factory buildingsteel structure framesteel structure godownsteel structure housesteel structure showroomsteel structure warehousesteel structure wedding hallsteel structure workshopsteel structure workshop buildingsteel warehousesteel workshopstorage shedstorage warehouse cagestructural insulated panelstructural steel fabricationtubular steel structureused steel pilesused sugar plantvegetable warehousevillawarehousewarehouse steel buildingwarehouse steel structurewelding holderwholesale tent housematerial workshopworkshop crane steel prefabricatedsugar plant prefab a frame tiny houseprefab a frame house for saleprefab kit homes kit home pricekit home under 30000 builder warehouse near meprefabricated house in Pakistaninsulated steel buildinggeneral steel building costmetal buildingssteel building cost per square footprefabricated metal building80*100 metal buildingPioneer steel buildingSteel building OntarioDiscount metal building60*100 metal building cost60*40 50*60 50*50 40*50Pre engineered steel buildingsSouthern steel buildingsCheap metal buildingAgricultural steel frame buildingsSteel frame argentinaHow to insulated a metal buildingsMetal buildings with carportSteel structure prefabricated warehouseAlmacén depósito taller estructura de acero pasillo de acero construcción edificio garaje granja
Frequently Asked Questions (FAQ)
What are the primary benefits of using a steel structure building?
Steel structure buildings offer high strength, a light dead load, excellent durability, design flexibility, and require less construction time. Additionally, up to 98% of the steel components are recyclable and environmentally friendly.
What steel grades and materials are used in the framework?
We typically utilize high-quality Q235B and Q345B steel grades. Columns and beams are constructed using hot-rolled or welded H section and I section steel components for maximum stability.
What is the estimated service life of these structures?
With standard paint or galvanized surface processing, our steel structures are built to withstand elements for more than 50 years with minimal maintenance.
Can these buildings accommodate industrial equipment like cranes?
Yes, our structures can be customized to support overhead cranes (typically ranging from 5 to 20 tons), mezzanine floors, ventilation systems, and specific configurations of PVC or aluminum doors and windows.
How are prefabricated steel buildings packaged and shipped?
All materials are shipped in bulk, specifically designed to fit standard cargo containers. The maximum component length is 5.8m for a 20GP container and 11.8m for a 40GP/HQ container.
What kinds of roof and wall panels can I choose from?
We offer various options including PU, EPS, and Rock Wool/Fiber Glass sandwich panels, as well as single corrugated steel plates depending on insulation and project specifications.
