| Model NO. | steel shed |
| Certificate | ISO9001:2008 |
| Size | Customized |
| Color | According to Customer's Requirement |
| Frame | Steel Frame |
| Wall | Sandwich Panel or Single Steel Sheet |
| Roof | Sandwich Panel or Single Steel Sheet |
| Door | Sliding Door or Roller Door |
| Window | Aluminum Alloy Window |
| Purlin | Z or C Type |
| Property | Carbon Steel |

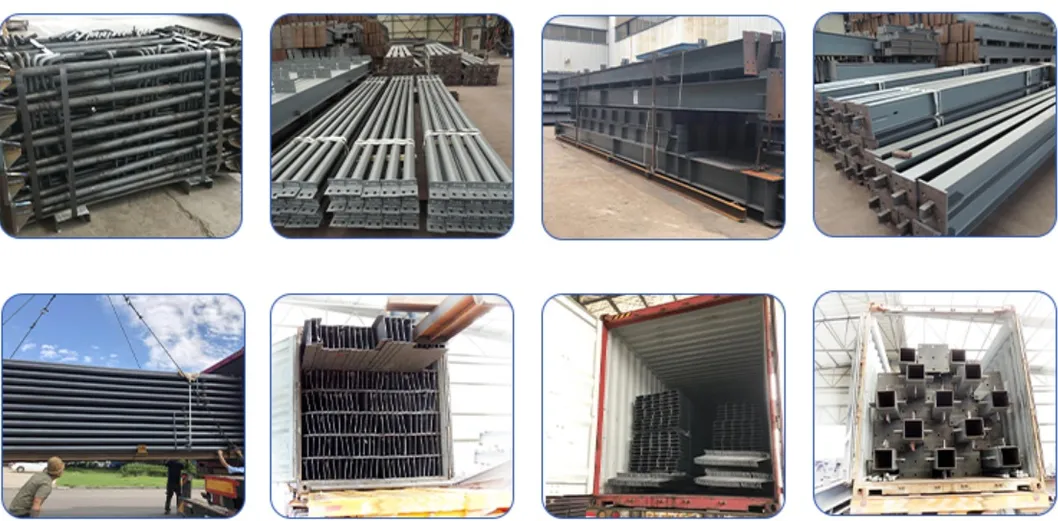

| Transport Package | Standard Package |
| Specification | According to customer's requirement |
| Origin | China |
| HS Code | 9406000090 |
| Production Capacity | 2000t/Month |
| Package Size | 1100.00cm * 200.00cm * 250.00cm |
| Package Gross Weight | 22000.000kg |
| Lead Time |
30 days (1 - 1000 Square Meters) To be negotiated ( > 1000 Square Meters) |

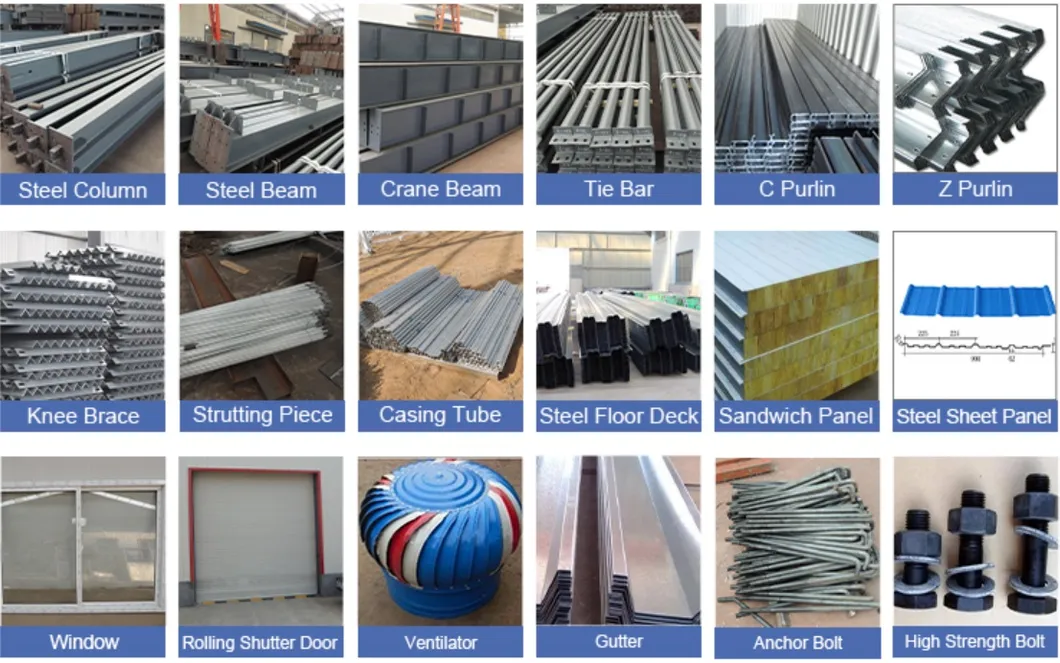

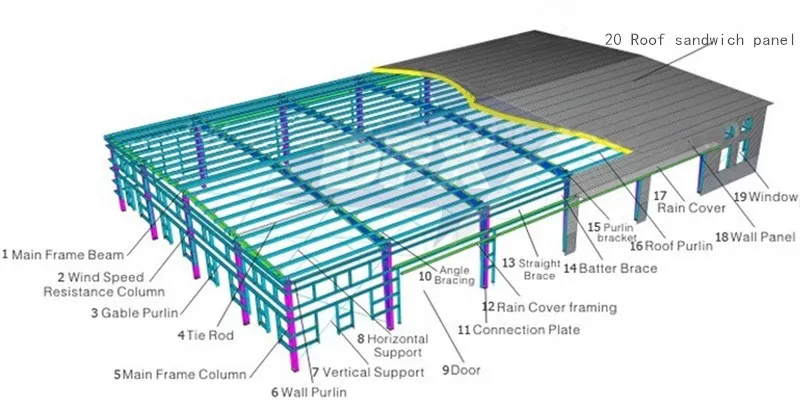

| ITEM | MEMBER NAME | SPECIFICATION |
|---|---|---|
| Main Steel Frame | Column | Q235, Q355 Welded / Hot Rolled H Section Steel |
| Beam | Q235, Q355 Welded / Hot Rolled H Section Steel | |
| Secondary Frame | Purlin | Q235 C or Z Type Purlin |
| Knee Brace | Q235 Angle Steel | |
| Tie Bar | Q235 Circular Steel Pipe | |
| Strutting Piece | Q235 Round Steel Bar | |
| Vertical & Horizontal Support | Q235 Angle Steel or Round Steel Bar | |
| Cladding System | Roof Panel | Corrugated Steel Sheet Panel or Sandwich panel (EPS / Rock Wool / Fiber Glass / PU Sandwich Panel) |
| Wall Panel | Corrugated Steel Sheet Panel or Sandwich panel (EPS / Rock Wool / Fiber Glass / PU Sandwich Panel) | |
| Window | Aluminum Alloy Window | |
| Door | Sliding Sandwich Panel Door / Rolling Shutter Door | |
| Skylight | FRP | |
| Accessories | Rainspout | PVC |
| Gutter | Steel Sheet / Stainless Steel | |
| Connection | Anchor Bolt | Q235, M24/30/45 etc. |
| High Strong Bolt | M12/16/20, 10.9S | |
| Normal Bolt | M12/16/20, 4.8S | |
| Wind Resistance | Grade 12 | |
| Earthquake Resistance | Grade 9 | |
| Surface Treatment | Alkyd paint, Epoxy Zinc Rich Paint or Galvanized | |
| No. | Required Information for Quotation |
|---|---|
| 1 | Located of building? |
| 2 | Purpose of building? |
| 3 | The size: length(m) x width(m) x height(m)? |
| 4 | How many floors? If multi-floor, the load per square meter of each floor? |
| 5 | The local climate data of building? (Rain load, snow load, wind load, earthquake level?) |
| 6 | If need brick wall? If yes, the height of the brick wall? |
| 7 | If need overhead crane? If yes, how many tons? Single or double girder? |
| 8 | The roof and wall panel: sandwich panel or galvanized steel sheet? |
| 9 | The door size, position, and type (rolling door or sliding door)? |
| 10 | The window size and quantity? |
| 11 | If need ventilation system? |
| 12 | If need skylight? |
| 13 | Do the steel parts need paint or galvanization? |
| 14 | Providing a layout drawing is highly recommended for reference. |

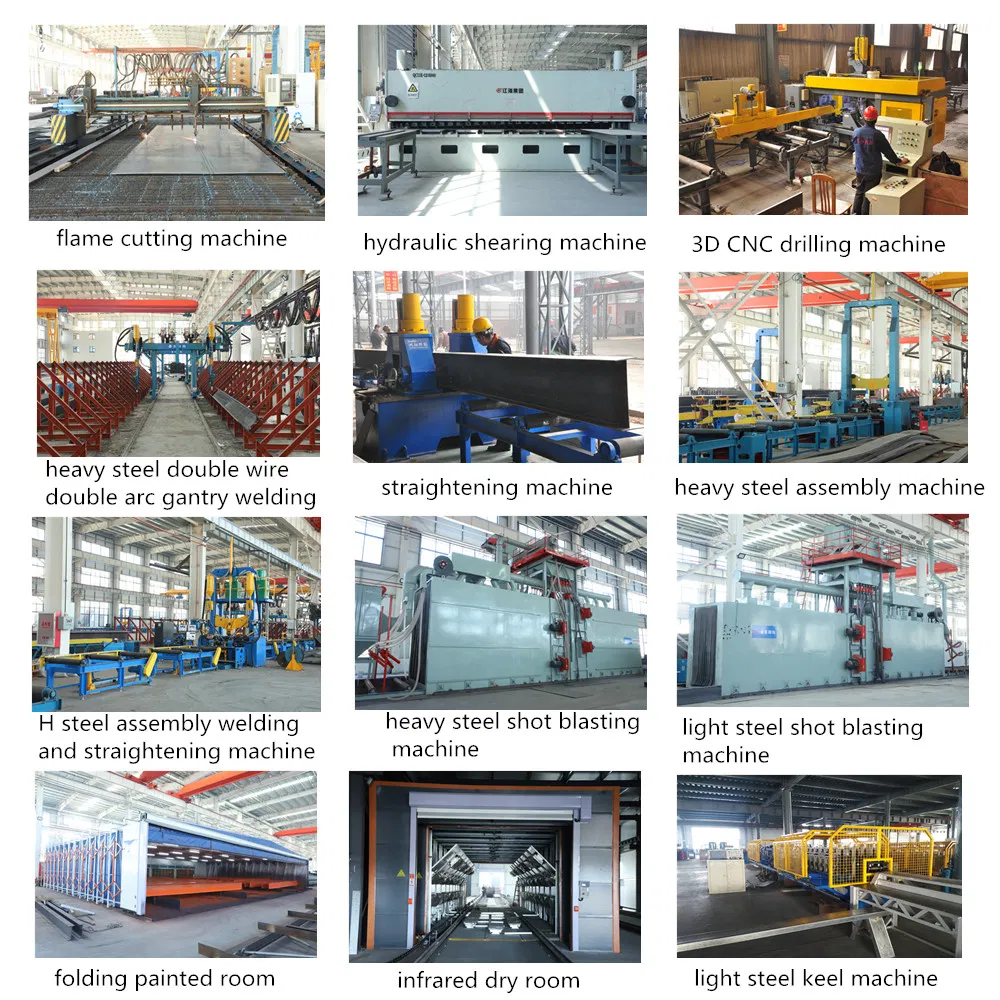

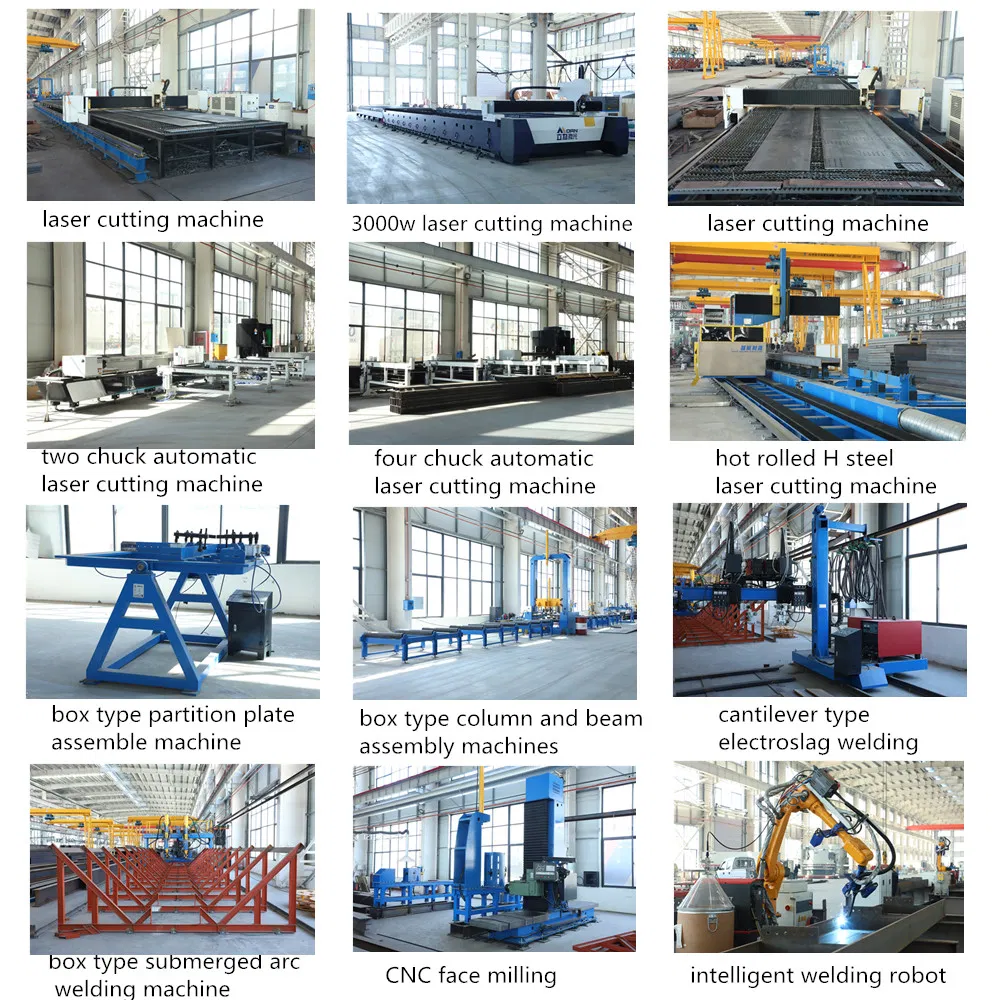

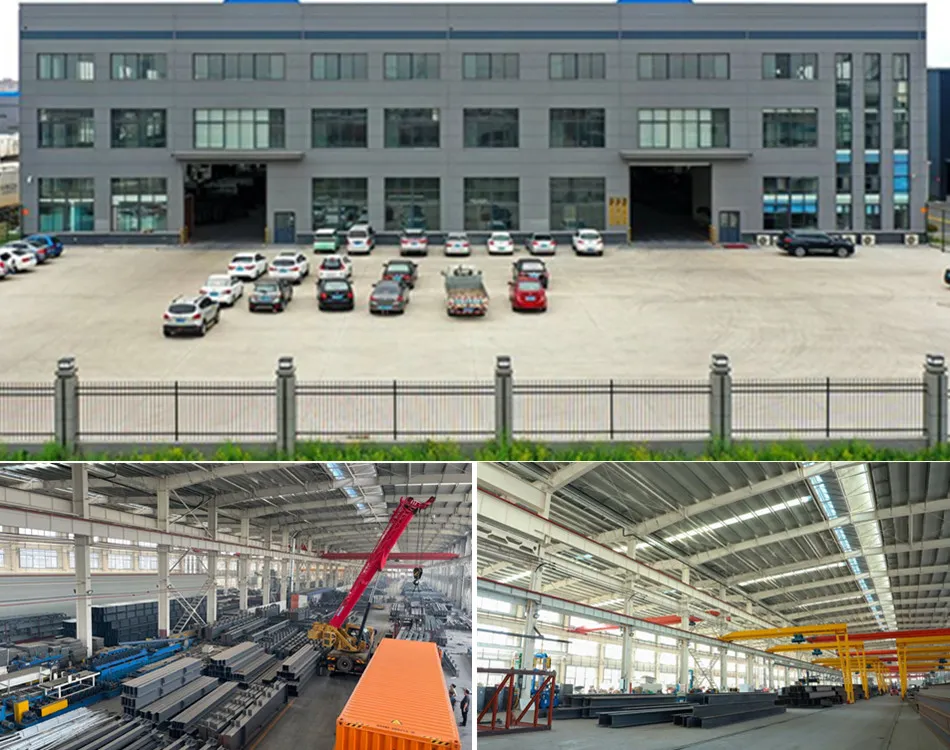

We are a professional steel structure manufacturer founded in 2003, with extensive design and manufacturing experience for various types of steel structures and industrial buildings.
No, our steel structure buildings are highly economical. All materials, including steel frames, walls, and roofs, are prefabricated at the factory, which significantly reduces onsite installation time and labor costs.
Yes, absolutely. We offer fully customized steel structure designs based on your specific dimensional requirements, regional environmental factors, and loading needs.

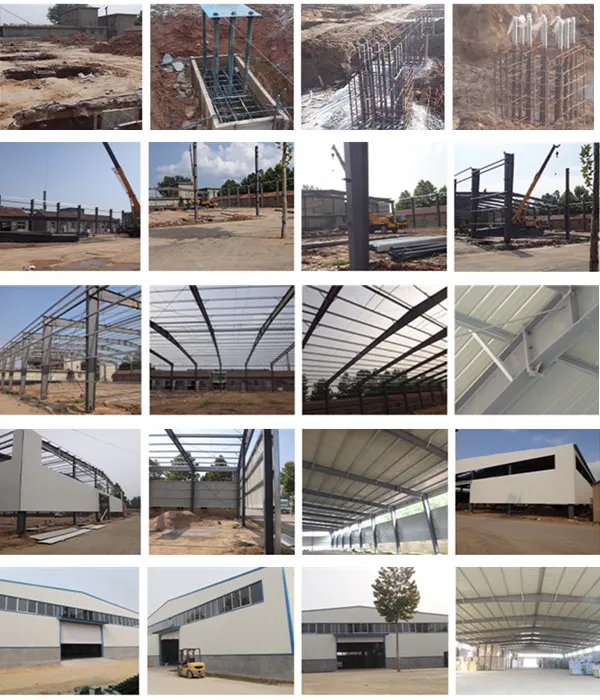

We provide detailed installation drawings and video guidelines for free. Upon request, we can also dispatch structural engineers or an installation team to direct construction onsite.
Our steel structures are engineered to handle harsh conditions, featuring wind resistance capabilities up to Grade 12 and earthquake resistance capabilities up to Grade 9.
Our production processes and materials conform to international standards, holding certifications including ISO 9001:2008 and PHI Passive House Certificate.
