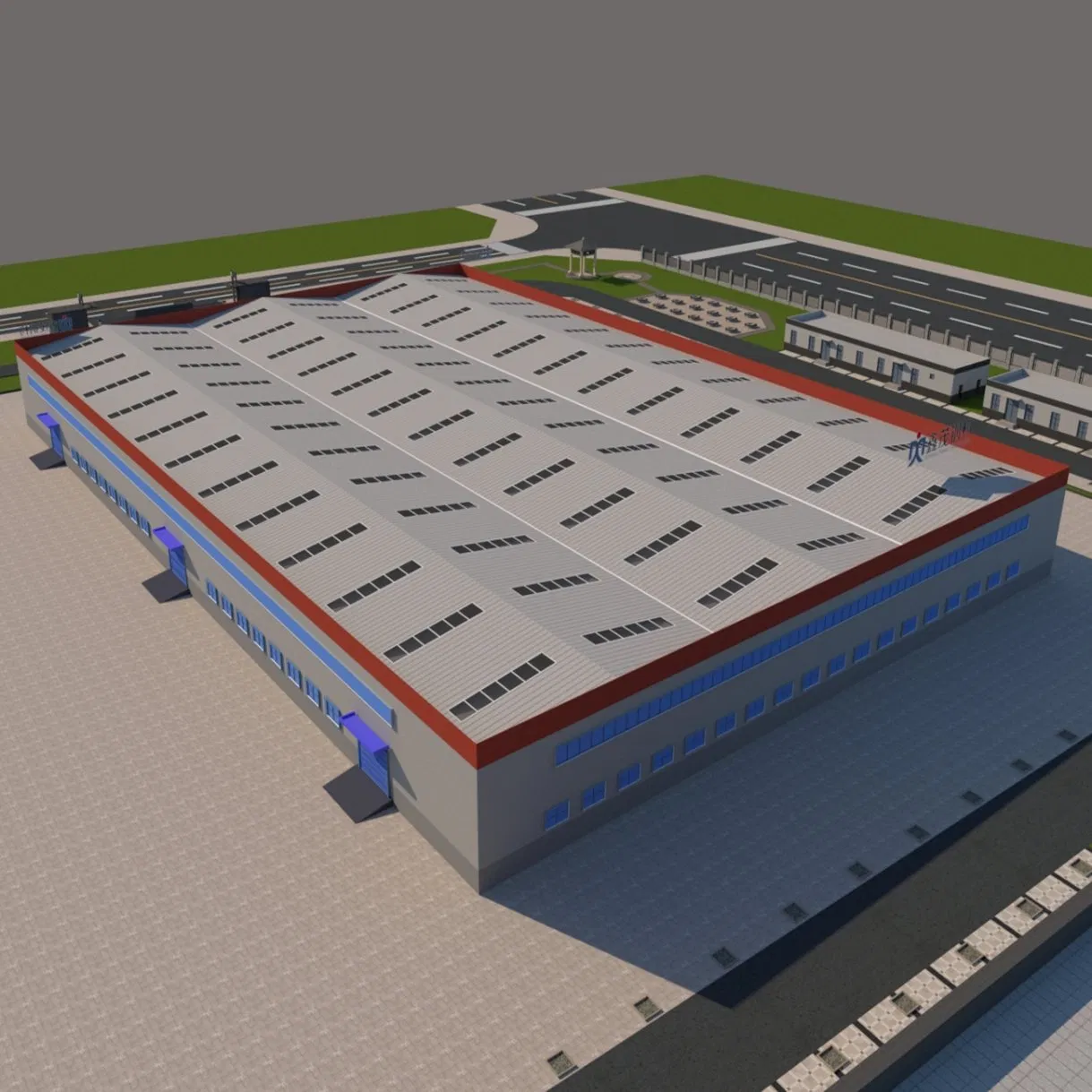

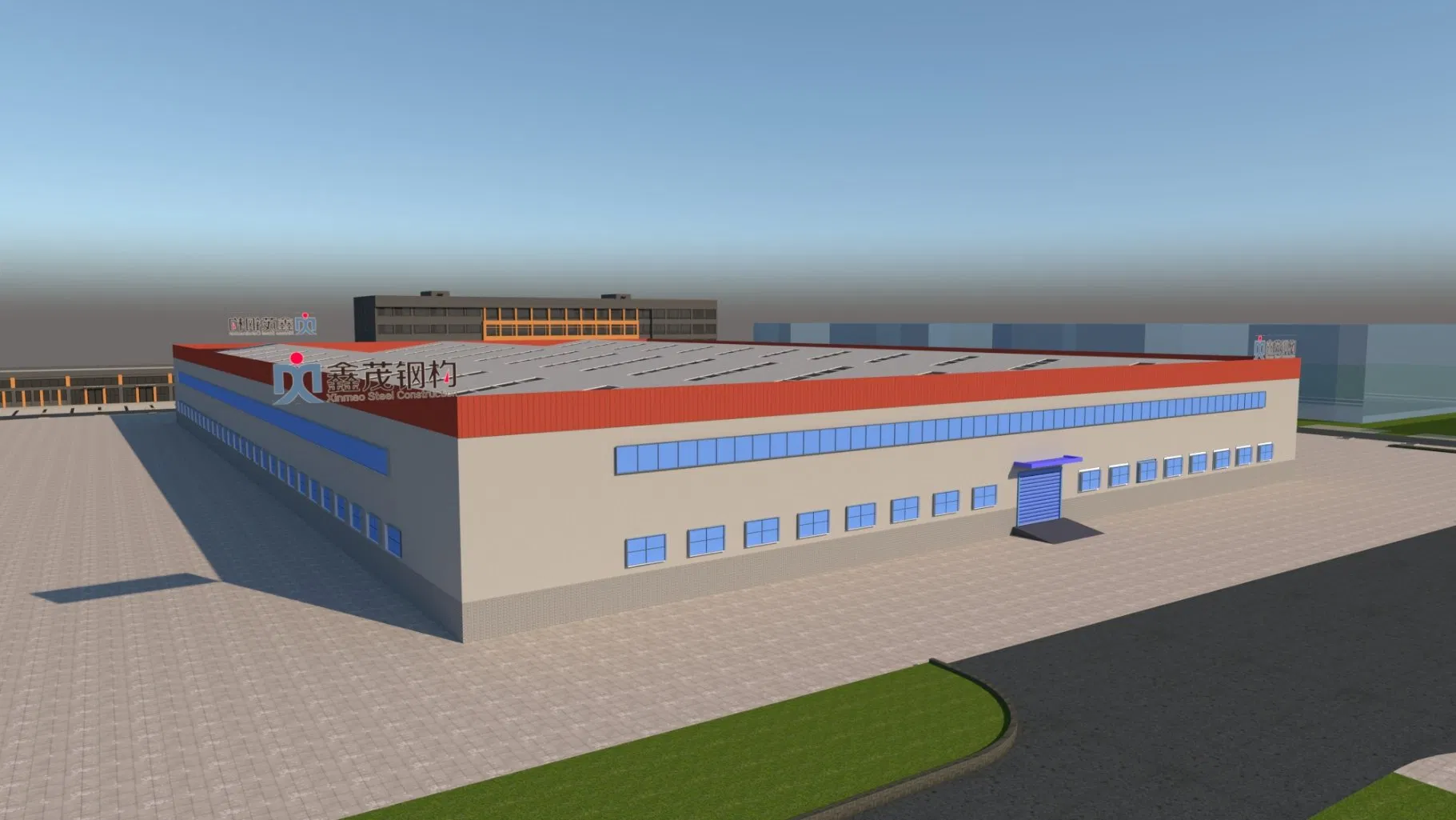

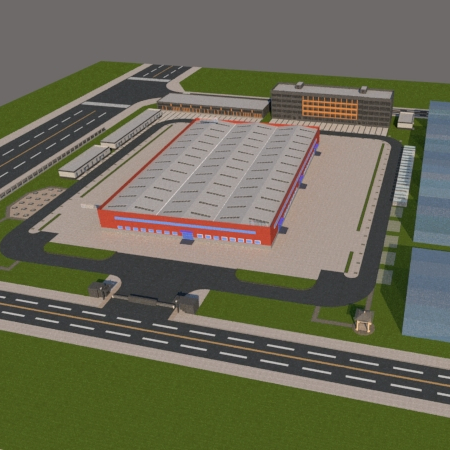

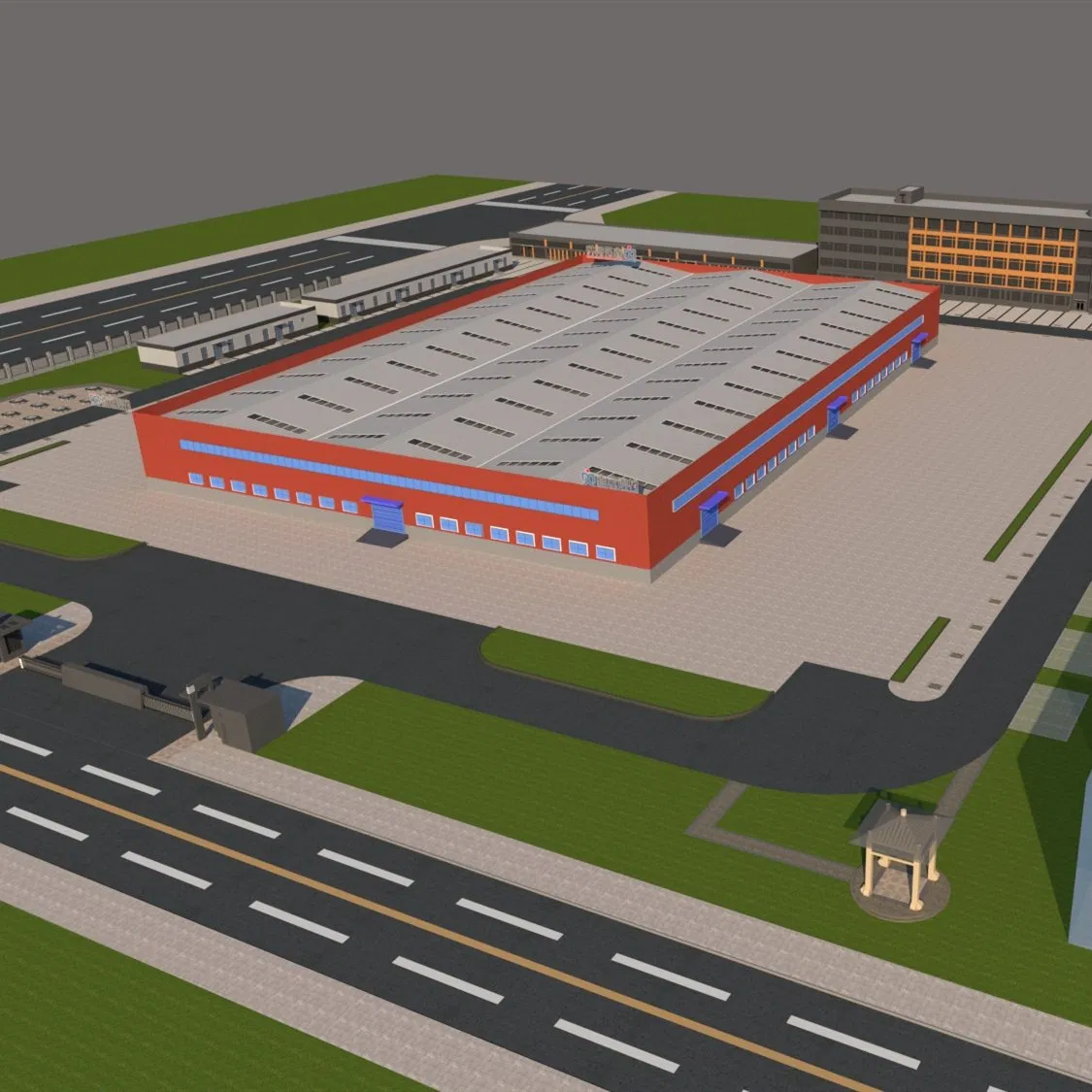

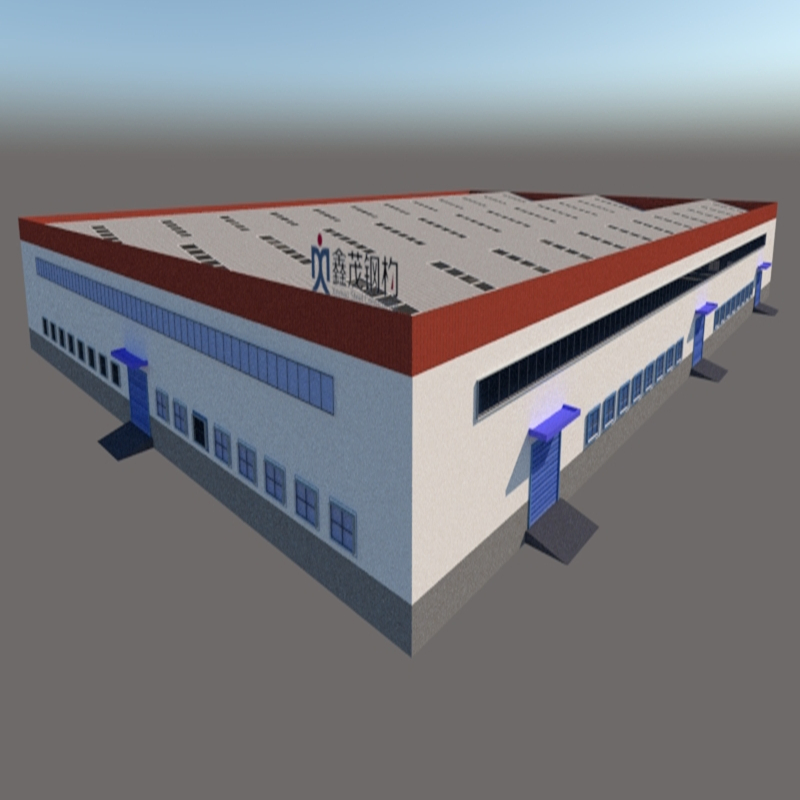

Industrial Multi-Span Metal Frame Prefab Aircraft Hangar Warehouse Steel Structure Building

1 / 5

Industrial Multi-Span Metal Frame Prefab Aircraft Hangar Warehouse Steel Structure Building

Customization:	Available
Connection Form:	Bolt Connection
Project Name:	Steel Structure

Send Inquiry

Product Description

Basic Specifications

Model NO. Steel-066

Grade Q235, Q345

Purlin C.Z Shape

Surface Treatment Painting/Galvanized

Dimensions 100 Sqm to 100000 Sqm

Cladding System EPS / PU / Fiber Glass Wool Sandwich / Steel Panel

Door and Window PVC or Aluminum Alloy; Sliding Door or Rolled Door

Ventilation Ventilation Building / Unpowered Ventilator

Crane Parameter If Need Crane Beam, Crane Tons Parameter and Lift

Drawing Design Auto CAD, Pkpm, Mts, 3D3s..

Test Could Be Tested by SGS or BV

Structure Usage Up to 50 Years

Advantages Long Service Life, Short Construction

Certificate ISO9001

Type H-Section Steel

Standard GB, ASTM

Steel Type Quality Carbon Structural Steel & Alloy Structural Steel

Forming Hot-Rolled Steel

Member Steel Column

Type of Steel H-Section Steel for Building Structure

Carbon Steel Q235

Wall Structure Residential Wall Support

Application Steel Workshop, Platform, Fabricated House, Roofing, Frame, Walkway, Bridge

Transport Package Package with Pallet then Shipping by Container

Specification From 100 sqm to 40000 sqm

HS Code 9406900090

Production Capacity 5000t/Month

Product Description

Key Capabilities & Services

Technical Staff 486 people, 40 engineers, 12 designers, 25 professional engineering and technical personnel.

Facility Area More than 50,000 sqm.

Product Capacity 5000 TON per month.

One-Stop Service Design, production, and installation guidance (engineers available for overseas guidance).

Structural Specifications

Item		Specification
Main Steel Frame	Column	Q235, Q345 Welded H Section Steel
Main Steel Frame	Beam	Q235, Q345 Welded H Section Steel
Secondary Frame	Purlin	Q235 C and Z purlin
	Knee brace	Q235 Angle Steel
	Tie Rod	Q235 Circular Steel Pipe
	Brace	Q235 Round Bar
	Support	Q235 Angle Steel, Round Bar or Steel Pipe (Vertical and Horizontal)
Maintenance System	Roof Panel	EPS Sandwich Panel / Glass Fiber Sandwich Panel
	Roof Panel	Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
	Wall Panel	Sandwich Panel / Corrugated Steel Sheet
Accessories	Window	Aluminium Alloy Window / PVC Window / Sandwich Panel Window
	Door	Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
	Rainspout	PVC
Live Load on Roof		In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade		12 Grades
Earthquake Resistance		8 Grades
Structure Usage		Up to 50 years
Finishing Options		Vast array of colors and textures available
Paint/Coating Options		Alkyd painting, two primary painting, two finish painting
Paint/Coating Options		(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized

Global Project Footprint

Representative projects successfully delivered in recent years:

Industrial Warehouse (13000 M2)Argentina
Warehouse (14000M2)Uzbekistan
Workshop (12000M2)Canada
Roof Truss (10000M2)Congo
Vegetable Market (2500M2)Mauritius
Pig Shed (3500M2)USA
Chicken Shed (2800M2)Australia
Aircraft Hangar (1300M2)Australia
Warehouse (900M2)Mongolia
Prefabricated House (800 Sets)Angola
Container House (60 Sets)South Africa

Packaging & Shipping Logistics

Steel Frame Structure

All steel columns and beams are securely packed and strapped to steel pallets for container loading. This design ensures simplified, energy-efficient, and cost-effective unloading at your construction site.

Capacity & Weight

Standard capacity fits approximately 20 tons per 40'HQ shipping container.

Wall & Roof Panels

Sandwich panels are wrapped with protective films on both sides to guard against scratching or crushing during loading, maritime transit, and handling.

Custom Quotation Checklist

1. Width: ______ M

2. Length: ______ M

3. Column spacing distance: ______ M

4. Eave height: ______ M

5. Brick/Concrete wall height: ______ M (if any)

6. Roof slope grade: ______ (° or %)

7. Ventilation type: None / Normal / Natural / Ventilator

8. Wall & Roof panel: EPS / PU / Rock Wool / Steel Sheet (Thickness: ______)

9. Door configuration: Sliding Sandwich Door / Rolling Door (Size: ______)

10. Window configuration: Aluminium Window / PVC Window (Size: ______)

11. Daylighting: Skylight Board (Thickness: ______)

12. Drainage system: Natural drainage / Gutter

13. Crane system: Yes / No (Capacity: ______ T)

Frequently Asked Questions

What are the standard payment terms?

We accept both T/T and L/C. We highly prefer a 30% deposit prior to production and the remaining 70% balance paid via T/T prior to loading.

What is the typical delivery schedule?

The delivery timeline varies based on your specific order volume. Normally, products are delivered within 45 days after receiving the initial deposit.

How are the steel materials protected and packaged for shipment?

Steel frames are pre-packed onto structural pallets to enable rapid loading and unloading via cranes, keeping onsite labor expenses low. All structural ends are protected by heavy blankets or bubble plastic wraps, and the cladding sandwich panels are bundled with protective surface film.

Do you provide onsite installation support?

Yes. We provide complete 3D Tekla visual models and construction blueprints. For complex connections, video instruction is provided. When necessary, we can dispatch engineers to guide installation teams directly. Note that round-trip flights, local transit, meals, and lodging costs will be handled by the client.

What is the expected service life of the steel structure?

Our high-quality structural steel frames are designed and fabricated to standards that support long-term durability, delivering a structure service life of up to 50 years under normal environmental conditions.

Are the structures resistant to extreme weather?

Yes, our designs feature advanced structural integrity designed to withstand up to Grade 12 winds (typhoon class) and meet Grade 8 earthquake-resistance engineering standards to ensure safety in diverse geographical locations.
