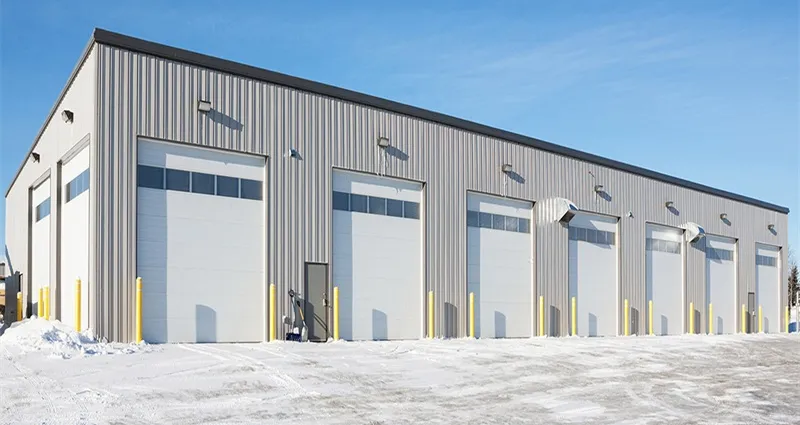

Light steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors. Light steel structure building is widely used in warehouses, workshops, large factories, and so on.

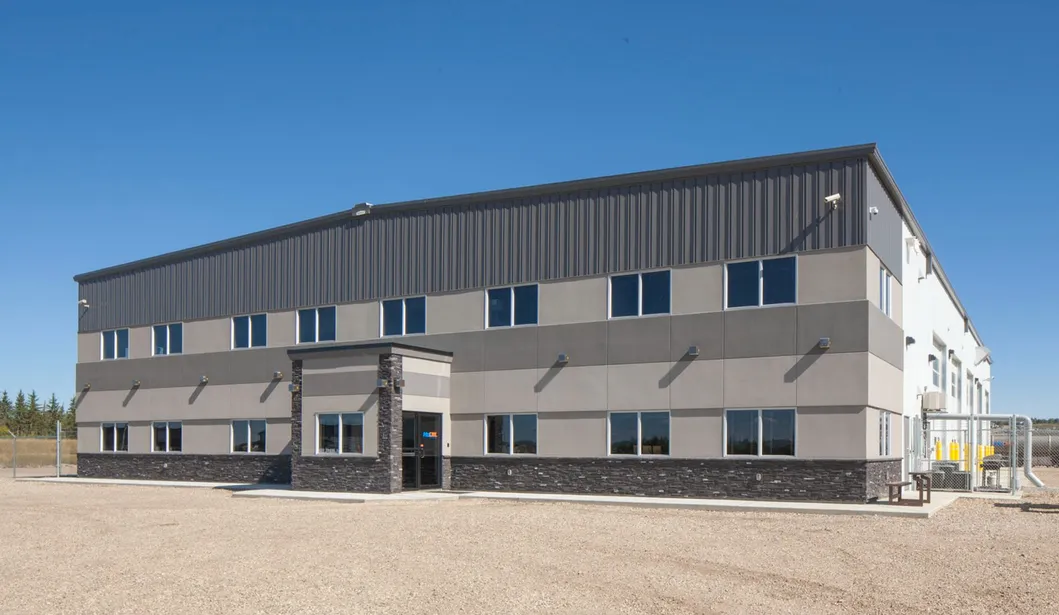

Mauritius logistic project is a building with 3-floor office areas to meet up the official and logistic demands at the same time. Based on the customer's request, the steel structures are hot dip galvanized ones to deal with the anti-rust requirements. The wall is using the horizontal installed V780 wave-shape colorbond steel sheet which is in perfect aesthetic situation. The lean-to building in front of the facade is equipped with aluminium louver. This building will be a land-mark in the local place.
| Steel Structure Building Technical Specifications | |
|---|---|
| Main steel structure | Q235, Q355B steel, Welded H type, I type, Box type frames |
| Surface Treatment | Sa2.5 grade shot blasting, Alkyd painting, or Epoxy zinc-rich painting, or Galvanization according to customers' requirements |
| Purlins | C section, Z section profiles, Electro-galvanized, 40g/m2, 60g/m2, 90g/m2, 275g/m2, according to customers' requirements |
| Bracing system | Including Cross brace, Column brace, Knee brace, Batter brace, Tie bar etc. |
| Wall & Roof cladding system | Single corrugated galvanized metal sheet, or Insulated sandwich panels, such as Rockwool, Fiberglass, EPS, PU etc. |
| Doors | Electric Roller shutter door, or Sliding door, or Single open / Double open door |
| Windows | UPVC / Aluminum windows |
| Rainspout system | Galvanized gutter, UPVC down pipes |
| Fittings & Accessories | Anchor bolt, High-strength bolt, Screw, Trip plate, Sealing glue etc. |

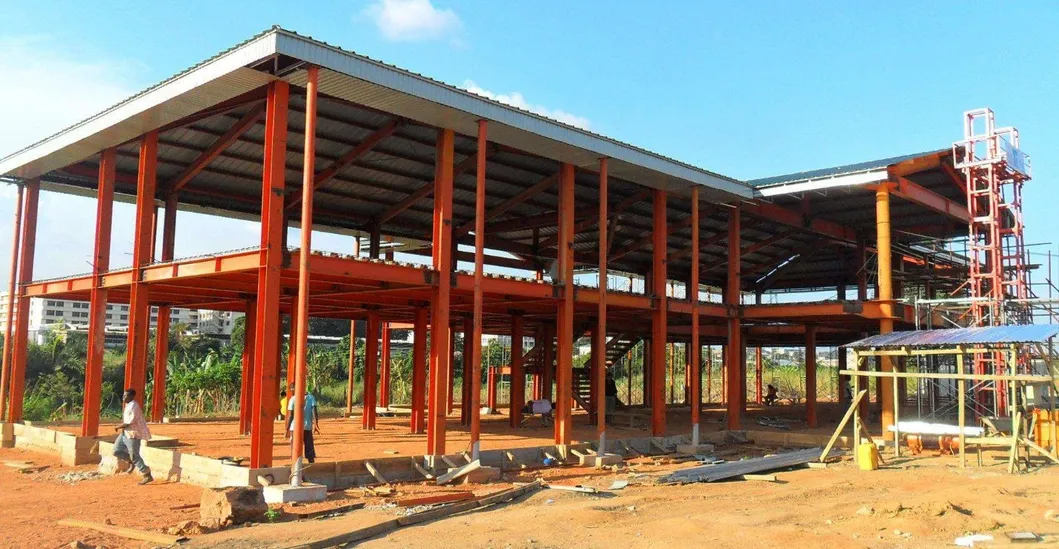

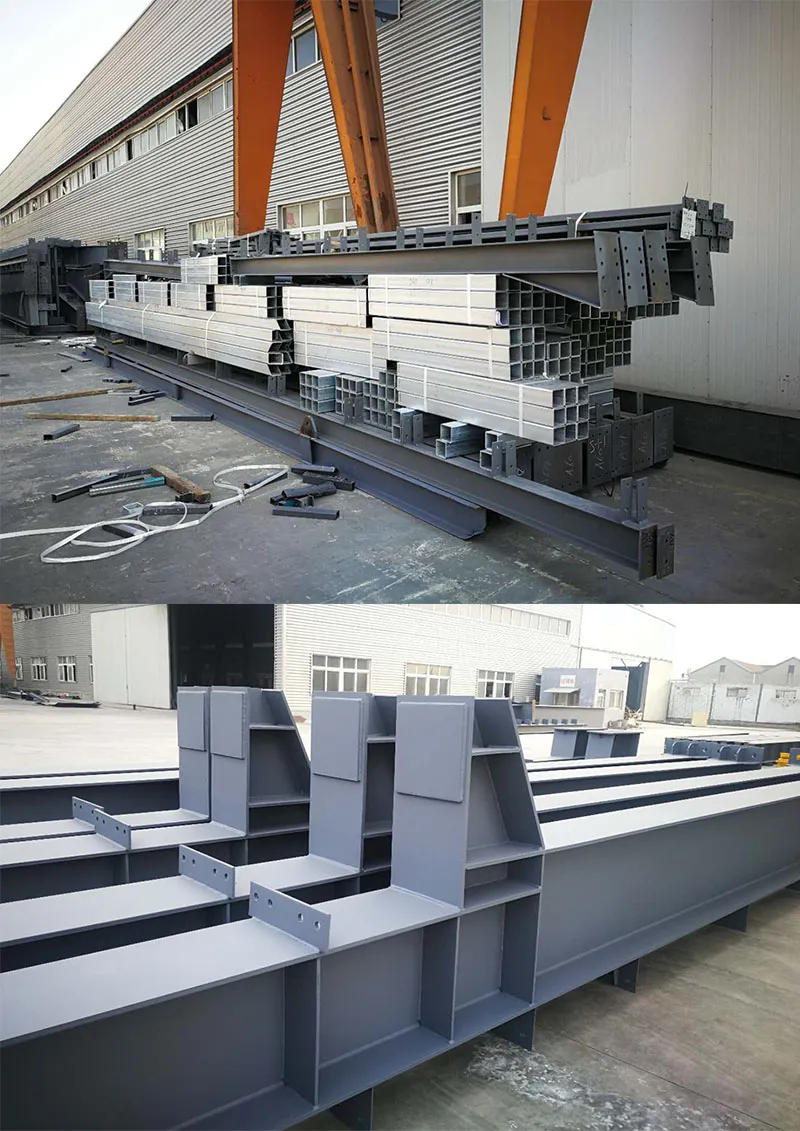

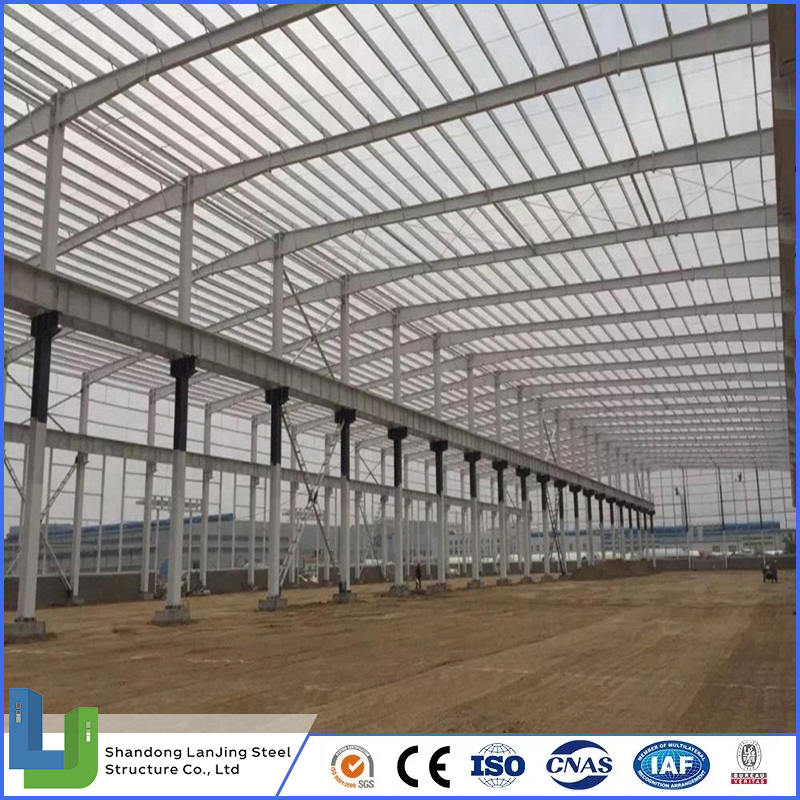

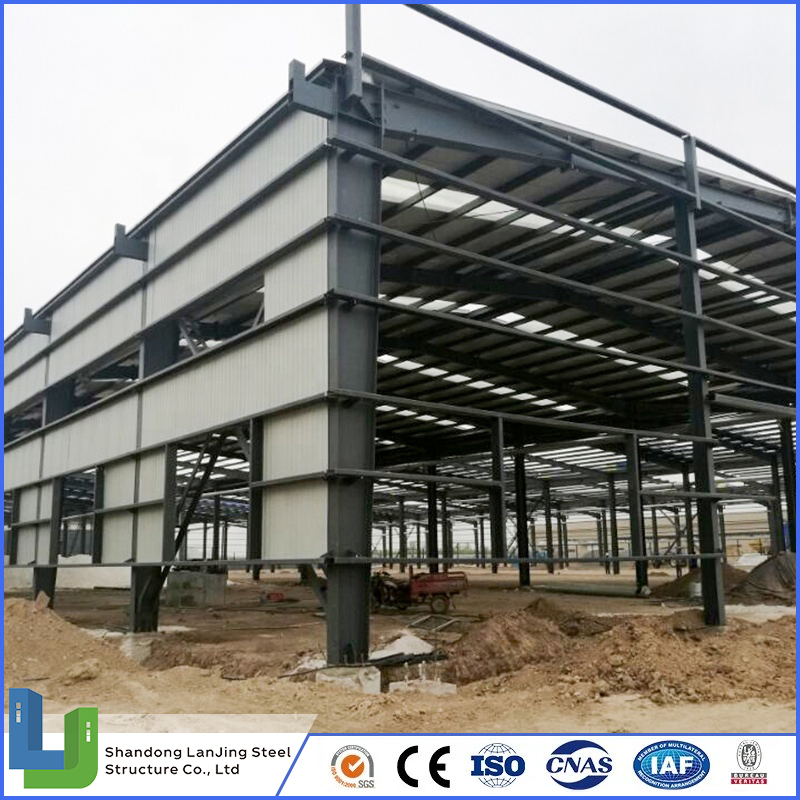

Steel structure building component system: primary members H steel, secondary members, roof and wall sheeting (or sandwich panel) connected to each other and various other building components. These buildings can be provided with different structural and non-structural additions such as skylights, wall lights, turbo vents, ridge ventilators, louvers, roof monitors, doors & windows, trusses, mezzanine floors, canopy, bridge crane if need, insulation etc., based on the customer's requirements. All the steel buildings are custom designed to be lighter in weight and high in strength. Thus steel building designs have become more flexible, durable and adaptable over the last four decades which has made steel one of the preferred materials for building.

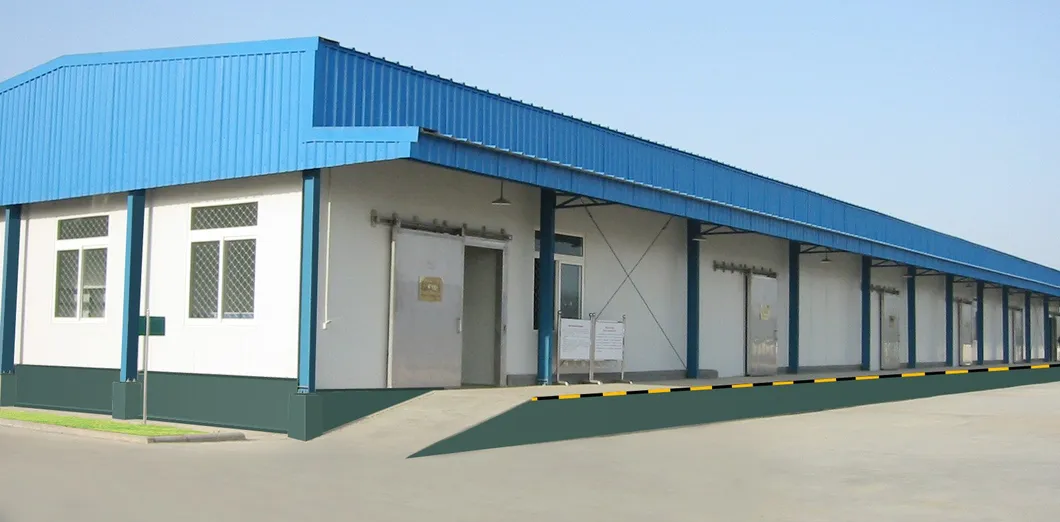

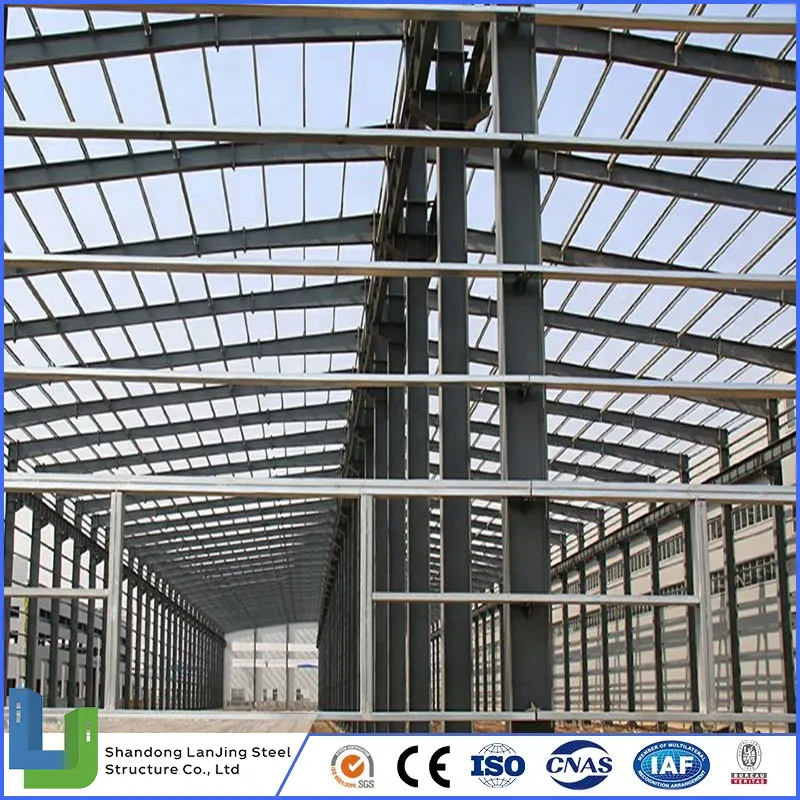

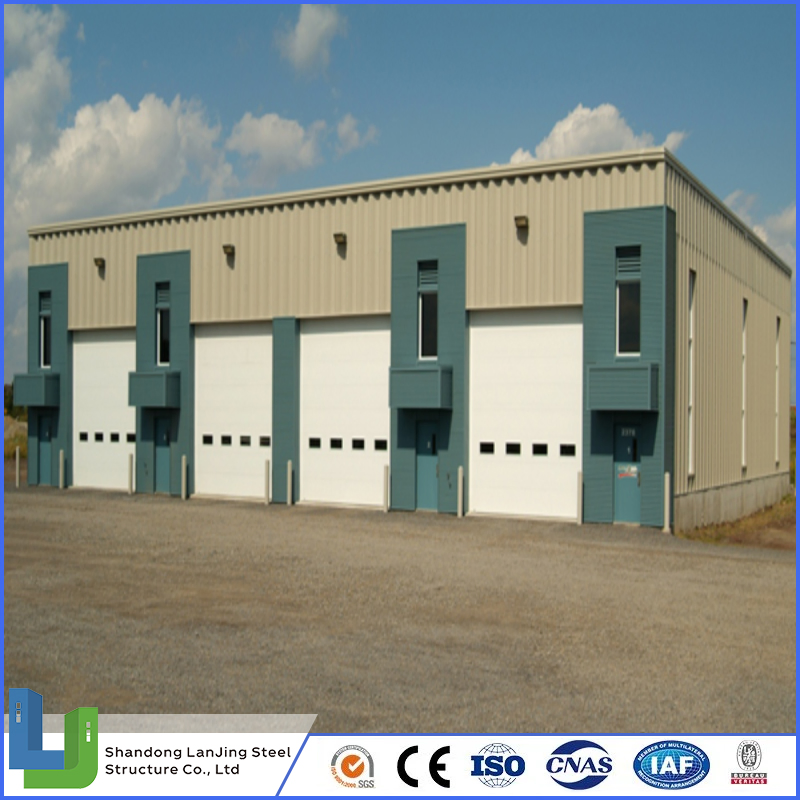

Steel structure warehouse building has features of high fire resistance, strong corrosion resistance. Steel structure warehouse is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss. Each component using welds, bolts or rivets to connect.
The roof and wall can be made of composite panel or veneer. Galvanized sheet metal can prevent rust and corrosion. The use of self-tapping screw can make the connection between the plates more closely, to prevent leakage. You can also use composite panel for roof and wall. The sandwich is polystyrene, glass fiber, rock wool, polyurethane. They have good thermal insulation, heat insulation, fire-retardant. The wall of the steel structure maintenance also can use brick wall. The cost of a brick wall is higher than galvanized steel roof and wall.

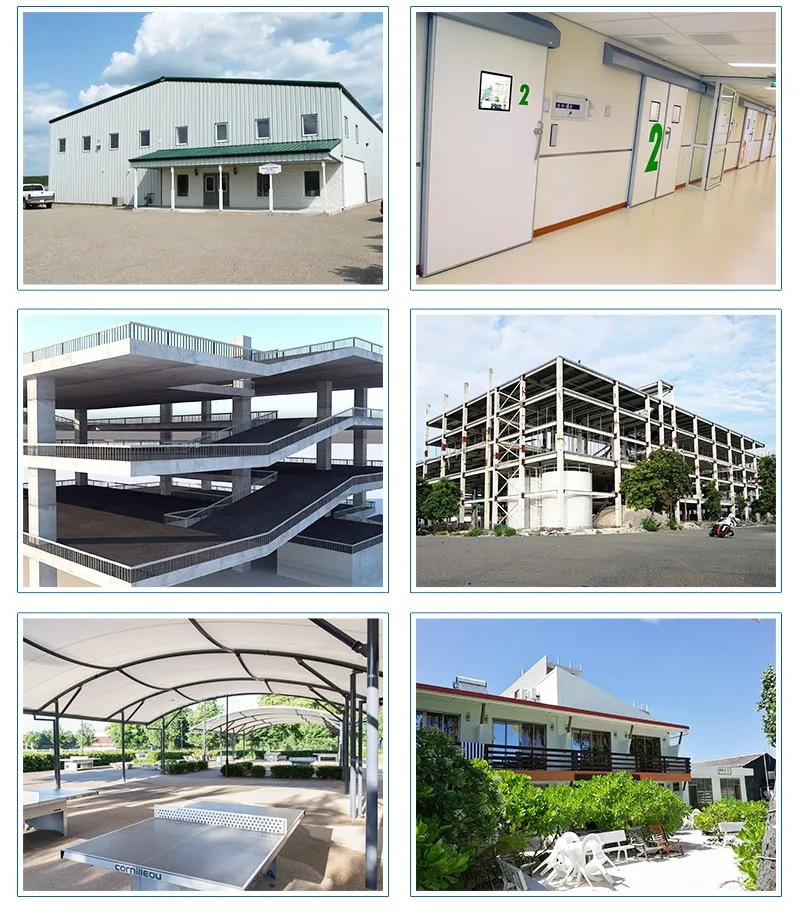

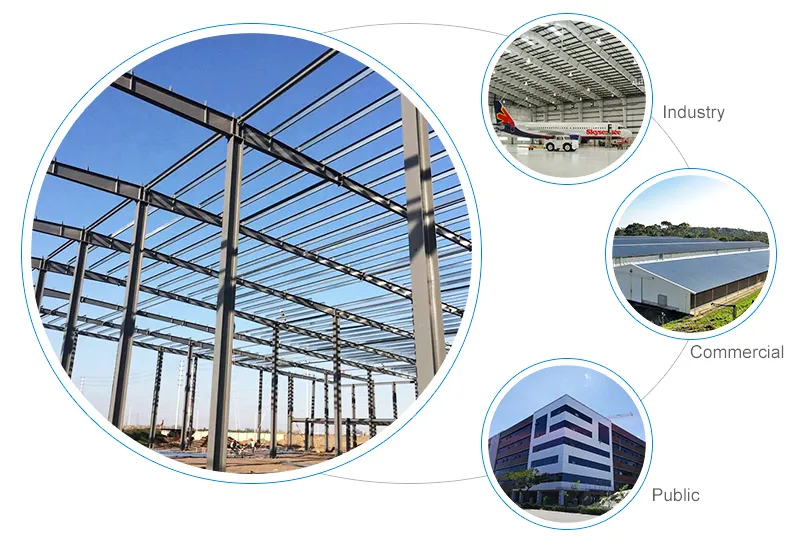

The usage scale includes large-scale workshop, or warehouse, supermarkets, entertainment centers and modular steel structure garage.

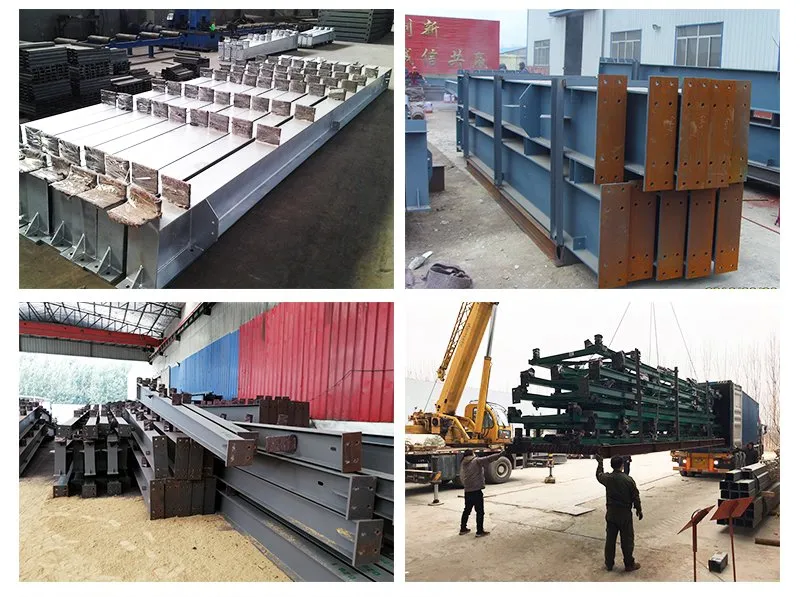

The packing method for main steel frame use steel pallet, This method packing can better protect the steel frame, and also the loading and unloading will be fast and convenient since it could be taken as a whole. The best advantage can save the quantity of shipping container, so it will save the cost of ocean freight, save unloading time and cost.

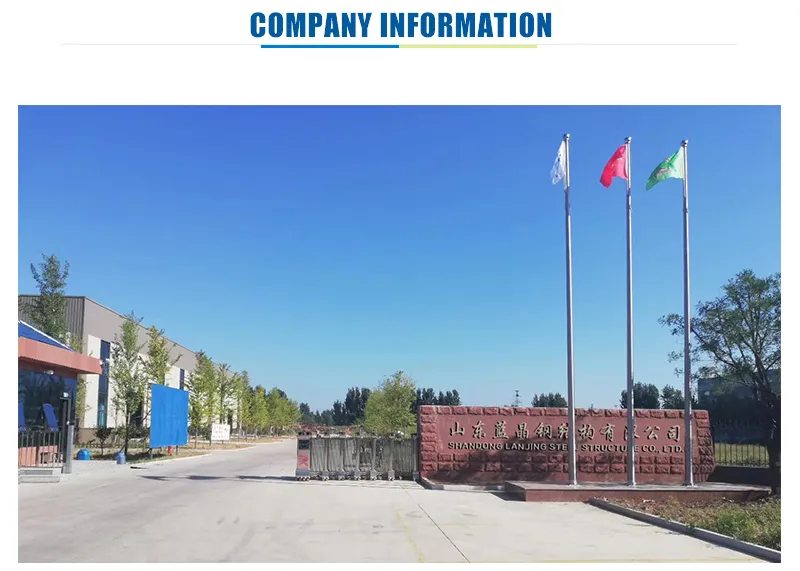

Our brand of Steel Structure, Container house and Prefab house, is Trusted & Tested. As experts on Steel Structure Buildings system, we offer comprehensive ONE-STOP services, delivering customized solutions that encompass Consultation, R&D, Design, Manufacturing, Installation Overseas project supervision and After-sales support.
We specialize in creation of high-quality Steel structure Warehouse, Workshop, High-rise steel frame building and Container house for Labor camp, Worker dormitory, Site office, Shower container, Toilet container etc. We provide our time-tested steel building to clients in the sectors of Oil & Gas, Mining, Energy, Infrastructure and Construction projects. We built our reputation upon Profession, Reliability and Service.
With the brand-building concept, we have built long lasting partnerships with different international companies as well as organizations & governments.
We have been devoted to research & development of steel structure buildings. And we constantly renovate technology to improve the wind- and rain- resistance performance of the products. So their life-span can be enlarged and it helps accomplish the most cost-effective effect for our customers.
Driven by our mission of becoming a world famous brand, we're dedicated to innovative technology and creative thinking, pursuing the best interest of our clients. Through smart construction design and meticulous cost analysis, we customize the right approach for customers' projects to exceed their expectations, and have won the trust of our customers in more than 20 countries all over the world!
