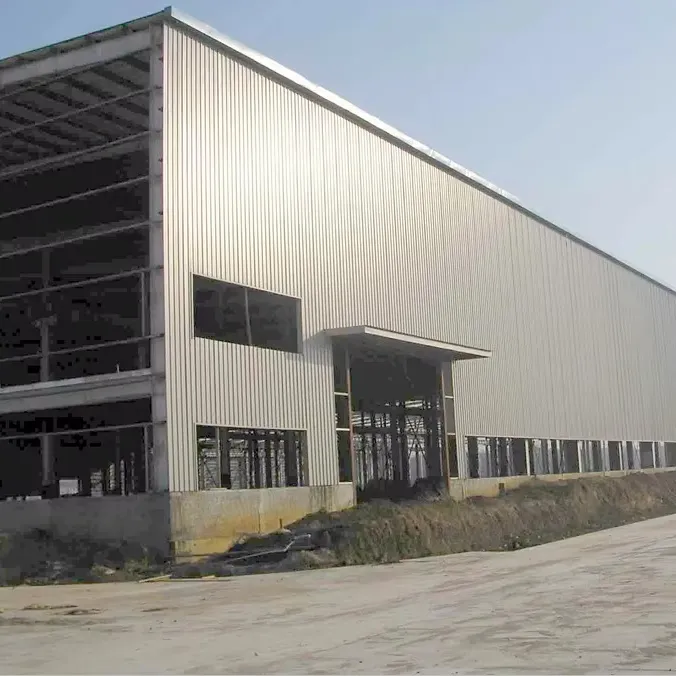

The steel structure warehouse, with its excellent characteristics, has become the ideal choice for modern warehousing. The main structure is made of high-strength steel, which has excellent load-bearing capacity and stability, and can easily cope with the storage needs of various types of heavy goods. The high strength of steel makes it possible to build a large span space without excessive internal support columns, which greatly improves the utilization of space and facilitates large-scale stacking and flexible layout of goods.

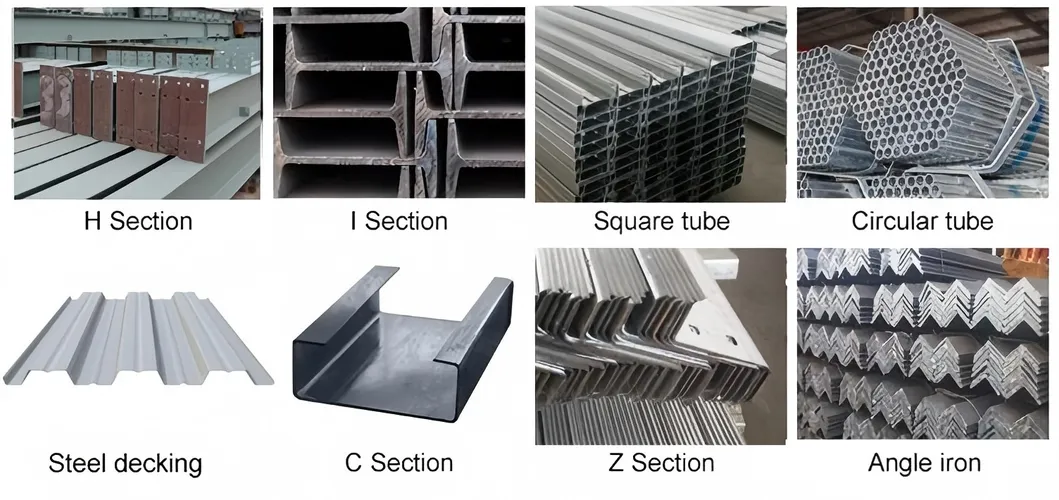

| Items | Specification | |
|---|---|---|
| Main steel frame | Column | Q355 H Section Steel |
| Beam | Q355 H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z purlin; Size: C120~C320, Z100~Z200 |
| Knee brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Tube | |
| Brace | Q235 Round Bar | |

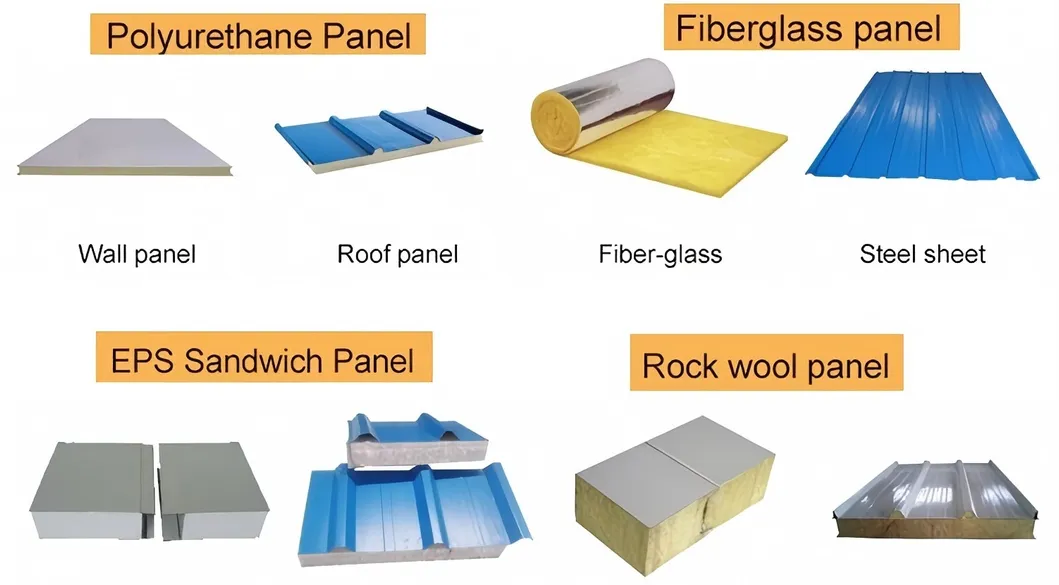

| Maintenance system | Roof / wall panel | Steel Sheet: IBR/ Corrugated/ Glazed tile Sandwich Panel: EPS/ Glass Fiber/ Rock Wool/ PU Sandwich Panel |
| Window | Aluminium Alloy Window/ PVC Window/ Glass Window | |
| Door | Sliding Door/ Rolling Metal Door/ etc. | |
| Accessories | Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter, etc. | |
| Service | We can make quotation according to customer's drawing or detailed requirement; (size by length/width/height and wind speed), offering a free design drawing and all detailed drawings for installation. | |
| Design software: Auto CAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc | ||
| Component | Assembly Code | Material | Specification | Application |
|---|---|---|---|---|
| Steel Column | GZ | H Section Steel | HI600-300-6-10*220, HI500-300-6-10*220, HI500-300-6-10*240 | Main vertical support of steel shed/metal building, bearing vertical load |
| Steel Beam | GL | H Section Steel | HI750-6-8*200, HI650-6-8*200, HI750-900-8-10*220 | Horizontal load-bearing structure, connecting columns, bearing bending moments |
| Wind-Resistant Column | KFZ | H Section Steel | HI800-6-10*230, HI350-6-8*200 | Resist wind pressure, enhance building stability, adapt to harsh climates |
| Roof/Floor Purlin | LT | C Section Steel | CC180-2.5-20*70, CC160-2-20*50, CC180-2-20*70 | Support roof/floor panels, distribute load evenly |
| Horizontal Support | SC | Round Steel | D20 | Enhance horizontal stability of steel frame, resist lateral force |
| Tie Bar | XG | Steel Round Tube | O114*3, O140*4 | Connect components, maintain frame integrity |
| Pull-Rod | LG | Round Steel | D12 | Tension support, stabilize local structure |
| Diagonal Pull-Rod | XLG | Round Steel | D12 | Diagonal tension, resist lateral force, enhance stability |
| Awning Tie Bar | YPXL | Steel Round Tube | O168*6 | Support awning structure, bear awning load |
| Corner Bracing | YC | Angle Steel | L63*4, L50*4 | Reinforce corner joints, improve overall stability of the frame |
