Customizable Modular Prefabricated Steel Structure Industrial Warehouse Workshop Hangar Building Construction Prefab Building

Customization:	Available
After-sales Service:	Installation Guide, 2D & 3D Drawing, Video
Connection Form:	Bolt Connection

Send Inquiry

Product Description

iBasic Information

Key Specifications
Model NO.	HD-Steel Structure
Construction Member	H Column & Rafter, Tie Beam, X Brace, Purlin etc
Grade	Carbon Structural Steel
Molding Method	Hot Rolled & Weld
Residential Wall Structure	Wall Support
Standard	BS, ASTM, DIN, GB, En1090
Steel Type	Quality Carbon Structural Steel
Structure	Steel Structure

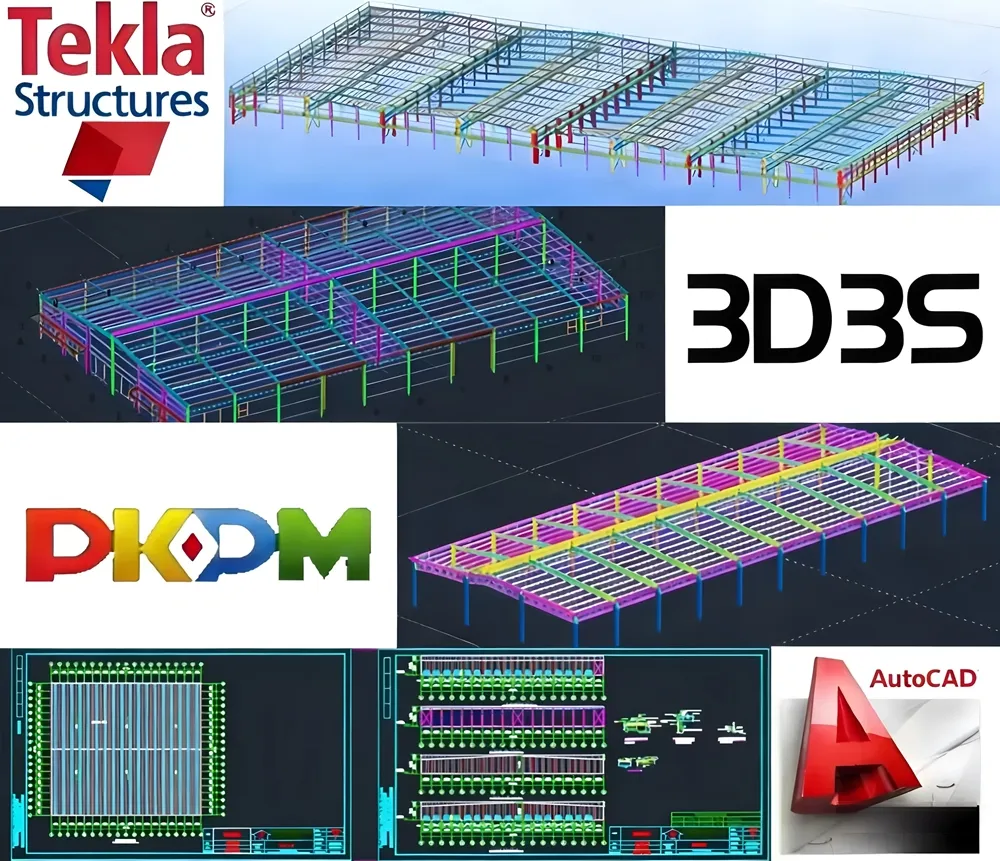

Drawing	Free Design Drawing, 2D & 3D Version
Wind, Snow, Earthquake Resistance	80~280km/H, 30~200kg/M2, Grade 9

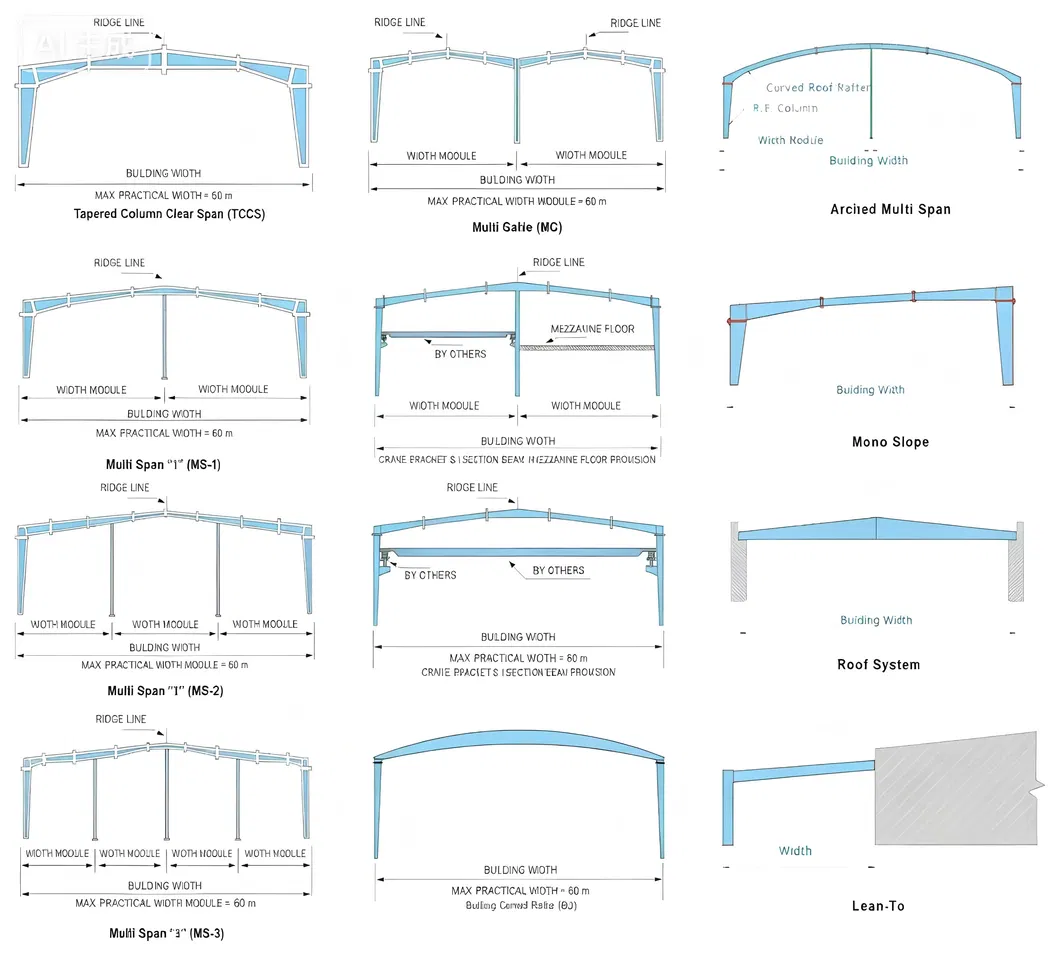

Frame	Steel Portal Frame Building
Delivery Time	4~6 Weeks
Certificate	ISO, CE, Third Party Inspect

Structural Options & Logistics
Roof Pitch	10%, 12%, 16%, 25%, 30% etc
Column & Rafter	Hot Rolled H Beam or I Beam
Tie Beam	Round Pipe or Square Tube
Purlin	C Purlin, Z Purlin, Hot Rolled H Beam Purlin
Roof Coverage	Single Corrugated Sheet or Sandwich Panel
Wall Coverage	Single Corrugated Sheet or Sandwich Panel
Window	PVC or Aluminum Alloy Frame Window
Gate	Sliding Industrial Door or Roller Shutter Door
Option	Skylight Belt, Ventilation Fitting, Gutter, Crane
Transport Package	Main Structure Loading in 40FT OT, Others Loading
Specification	Customized
Trademark	HD
Origin	China
HS Code	7308900000
Production Capacity	10000sqm Per Month

Packaging & Delivery

Package Size	200.00cm * 500.00cm * 600.00cm
Package Gross Weight	26000.000kg

Product Description

Customizable Modular Prefabricated Steel Structure Building

Prefabricated Steel Structure Building Details

Portal frame structure with H Beam and I beam;
Roof and wall cladding with insulation and single skin options;
Industrial gate, entrance and windows included;
Bolted joint without site welding;
Hot dip Galvanized and painted structure frame optional;
EN 1090-1:2009+A1:2011 Standard;
Worldwide market experienced.

Versatile Solutions

Industrial

Steel structure buildings, steel hangar kits, steel hall, steel structure storage shed, steel structure warehouse, steel structure workshop, processing plants.

Commercial

Logistics warehouse, apartment building, office building, steel hotel building, steel structure mezzanine floor, steel structure shops, aircraft hangars, platform, shopping malls.

Agriculture

Hay shed, machinery shed, poultry farm buildings, chicken house, broiler house, cow barn, dairy farm building, pig building house, goat building house.

Global Design Standards

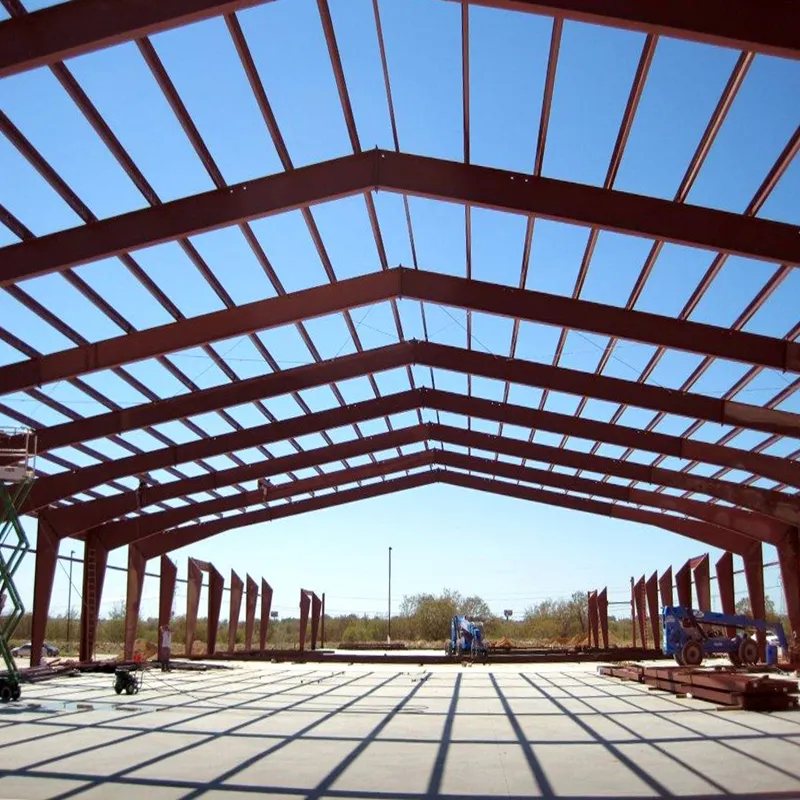

American Standard

ANSI/AISC 360-05 demand, heavy snow & wind region.

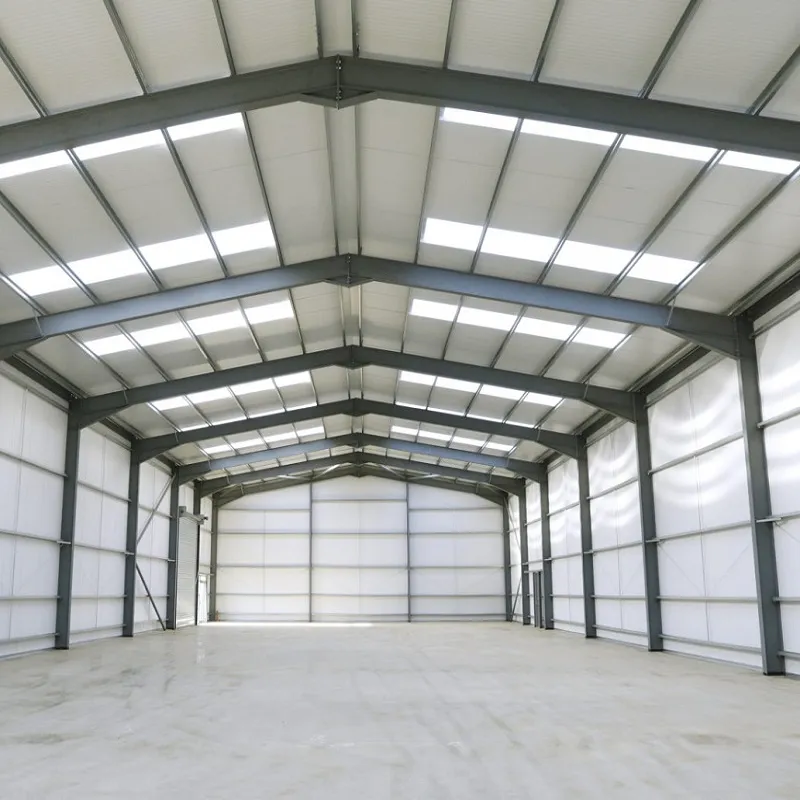

Europe Standard

EN1090-1:2009+A1:2011 Standard demand.

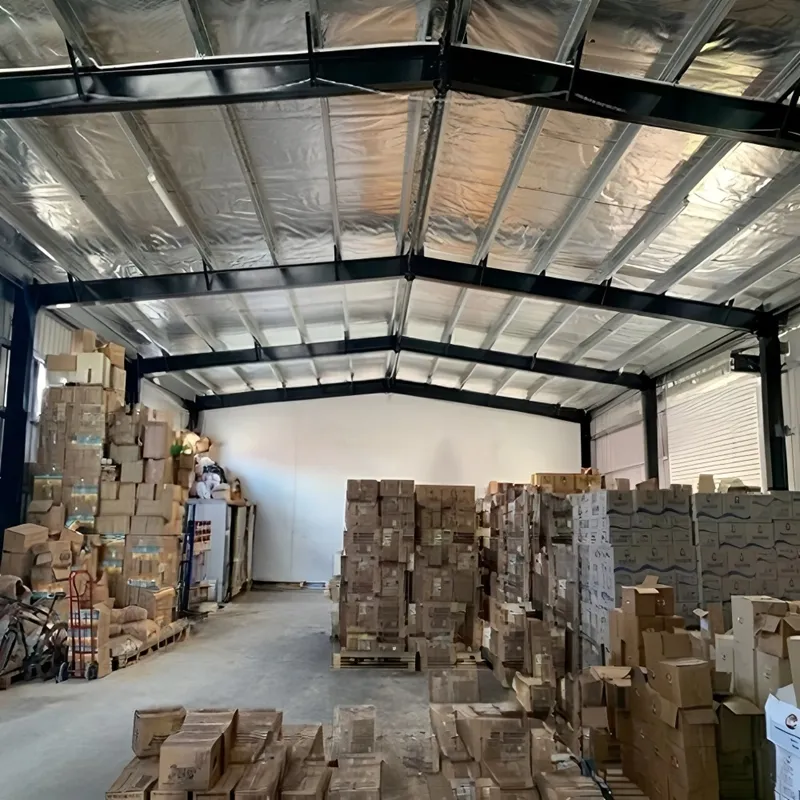

Australia Standard

AS4100-1998 Standard demand.

*Note: If you do not specify a standard, we will advise the best solution according to our engineering experience.

Export & Projects Experience

Our steel structures are engineered to meet various international standards across global markets:

Europe (CE Approved)

Standards: EN1090 EXC2. Exported to: Norway, Iceland, France, Spain, Romania, Czech Republic, Croatia, etc.

Australia & New Zealand (SGS Approved)

Standards: AS-4100-1998. Exported to: Melbourne, Sydney, Adelaide, Queensland, New Zealand, etc.

Americas (BV & SGS Approved)

Standards: AISC 360-16, EN1090, BS5950-2. Exported to: United States, Mexico, Dominica, Paraguay, Colombia, Chile, Brazil, Argentina, etc.

Africa & Middle East

Standards: EN1090, BS5950-2, GB. Exported to: Saudi Arabia, Oman, Qatar, Israel, South Africa, Ghana, Nigeria, etc.

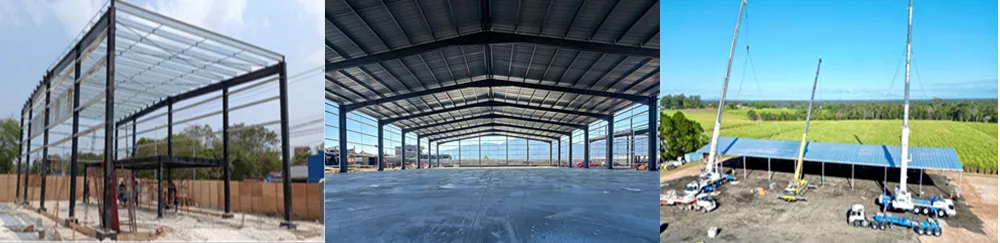

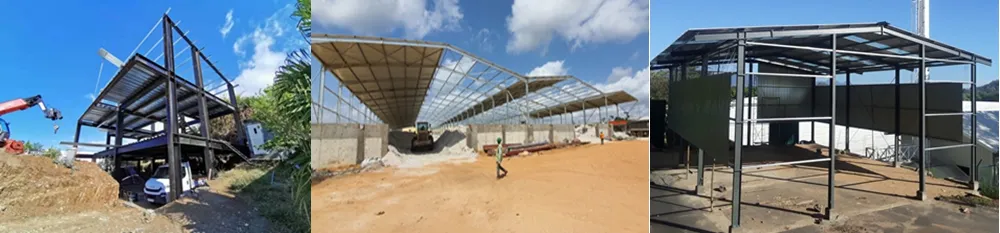

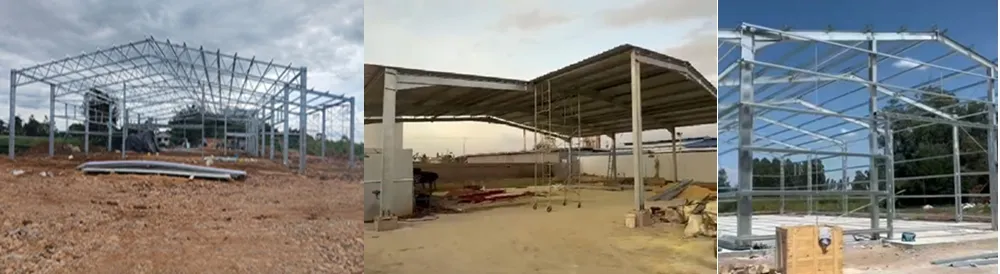

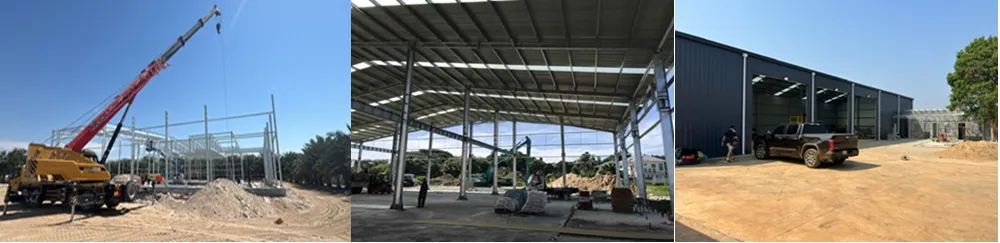

Project Case Gallery

Technical Details & Scope of Supply

What is supplied in our package:

All Steel Frame Components: Prefabricated (holes pre-drilled, welded, surface treated).
Roof & Wall Panels: Pre-cut to precision sizes matching your structure.
Doors & Windows: Complete assemblies including hinges, handles, and relevant hardware.
Fasteners: High strength bolts, anchor bolts, screws, and pop-rivets.
Trimming & Sealant: Flashing and silicone glue to provide weatherproofing.
Accessories: Gutters, downspouts, ventilation fittings, stairs, etc., as selected.
Internal Fittings (Optional): LED lighting, shelving, and simple equipment.

General Configurations

Specification Item	Details / Material Options
Clear Span	6~50m without middle column
Height / Length	2~20m height / Length customizable
Material Grade	Q345 (S355JR) or Q235 (S235JR) steel or request equivalent
Purlin	C purlin, Z purlin, thickness 2.0mm to 3.0mm
Wall & Roof Cladding	Single corrugated steel sheet (0.12~1.2mm) or EPS/Rock wool/Glass fiber/PU core sandwich panel (50~200mm)
Surface Treatment	Shot blasting with anti-rust paint, rich-zinc epoxy paint, or hot-dip galvanizing
Quality Control	Basement inspection, raw materials test; third-party inspection (SGS, QIMA, BV) accepted

Popular Configuration Reference

Item Type	Popular Size	Popular Height	Coverage Type	Gate Size
Steel Warehouse	20x30m	5m	Single corrugated steel sheet	4x4.5m
Steel Workshop	20x50m	6m	Insulated roof with single steel sheet wall	4.5x5m
Farm Storage	16x36m	4m	Single steel sheet or roof only	4x3.5m

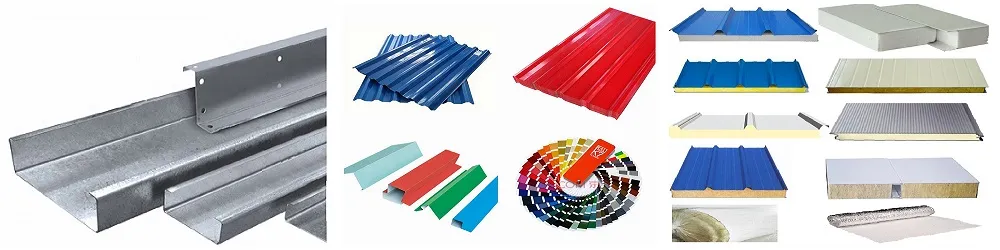

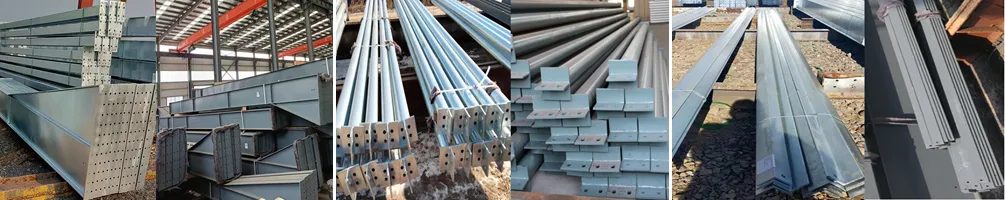

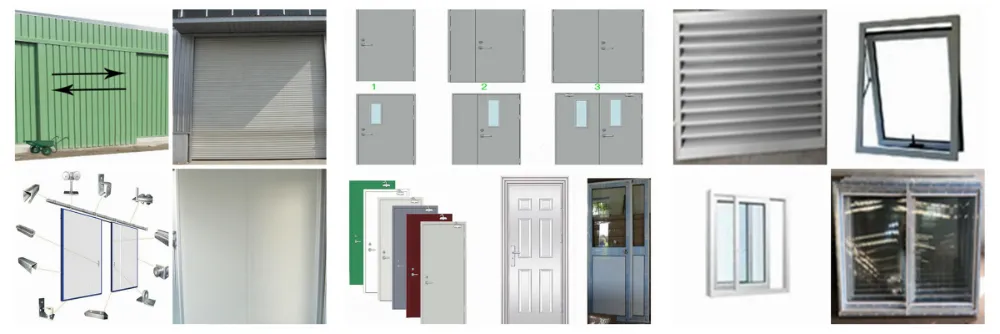

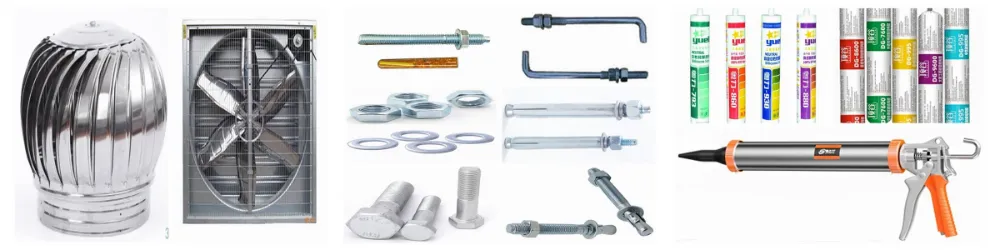

Detailed Material Selection

Ordering Guide

To configure your customized steel structure building, please prepare the following details:

Project Location: Country / Region
Building Usage: Warehouse, Workshop, Agricultural, Commercial, etc.
Design Loadings: Wind speed (KM/H), Snow load (KG/M2), and Earthquake resistance requirements.
Dimensions: Width x Length x Eave Height (mention if internal support columns are acceptable for spans wider than 30m).
Cladding Materials: Roof and wall coverage preferences (single sheet or sandwich panel).
Doors & Windows: Sizes, quantities, and type (sliding, rolling, swing).
Surface Treatment: Paint color and type, or hot-dip galvanizing.
Additional Features: Mezzanine floors, overhead cranes (tonnage capacity), skylight bands, ventilation fan, etc.

Company Profile

We have been exporting prefabricated steel structure buildings globally since 2007. Having deep knowledge of structural requirements and local codes across most countries, we help simplify communication to finalize your design rapidly.

Our operation runs 2 complete steel structure production lines. Advanced equipment includes high-precision laser cutting machines for steel plates and profiles, improving cutting accuracy and preventing material deformation. Integrated H-beam welding and assembly lines efficiently manage stress testing and ensure overall component strength.

Our annual production capacity includes 30,000 tons of welded H-beams, 8,000 tons of C/Z purlins, 100,000 square meters of sandwich panels, and 8,000 tons of corrugated steel plates. We support international certifications including SGS, Bureau Veritas, EN1090 EXC2, CE, and ISO9001.

Production Process

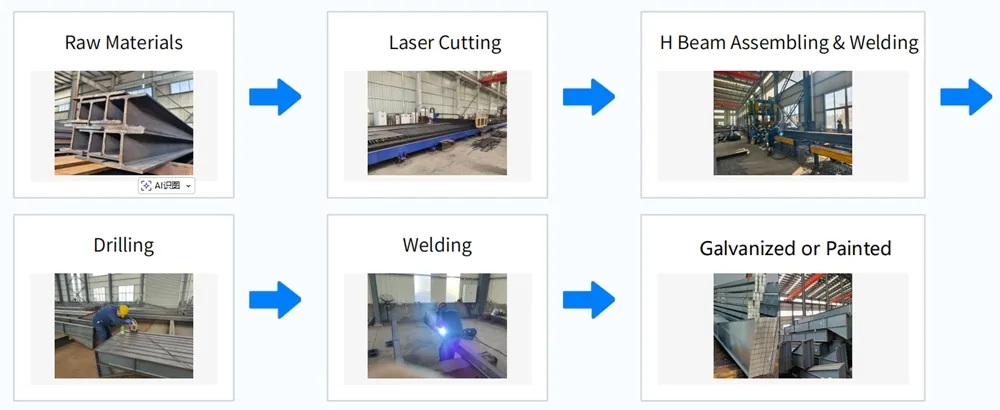

Steel structure manufacturing process flow

Main Machinery & Facilities

Laser Cutting Machine

Profile Laser Cutting

H-Beam Assembly Machine

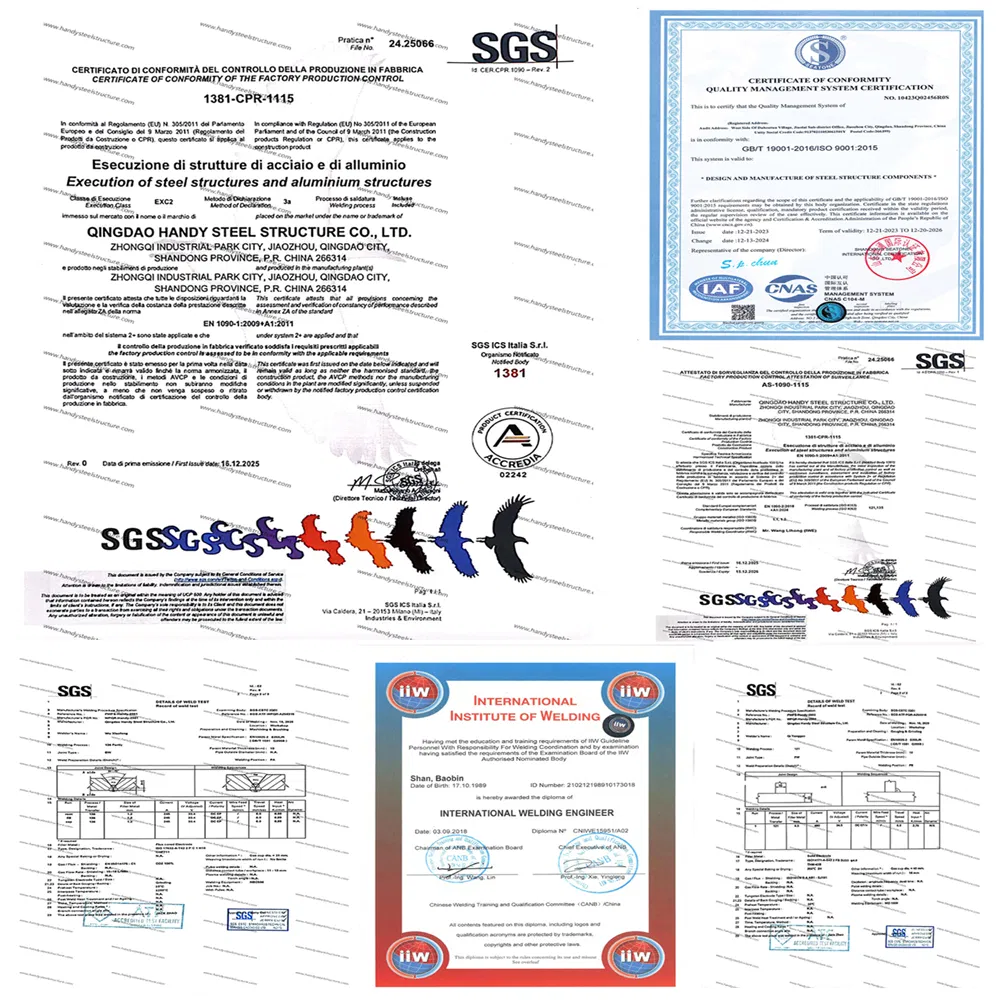

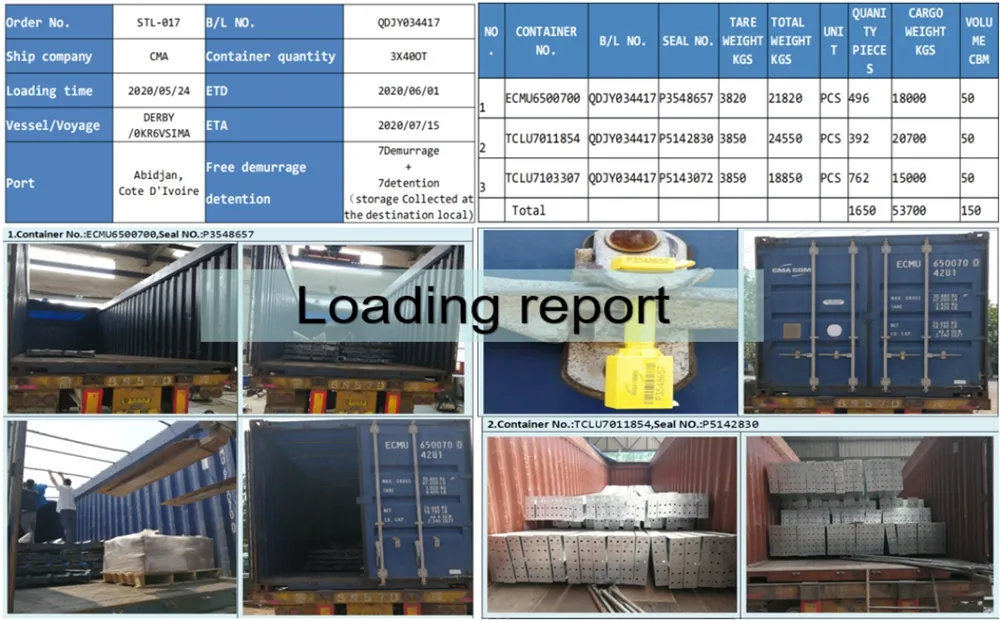

Certifications & Shipping Logistics

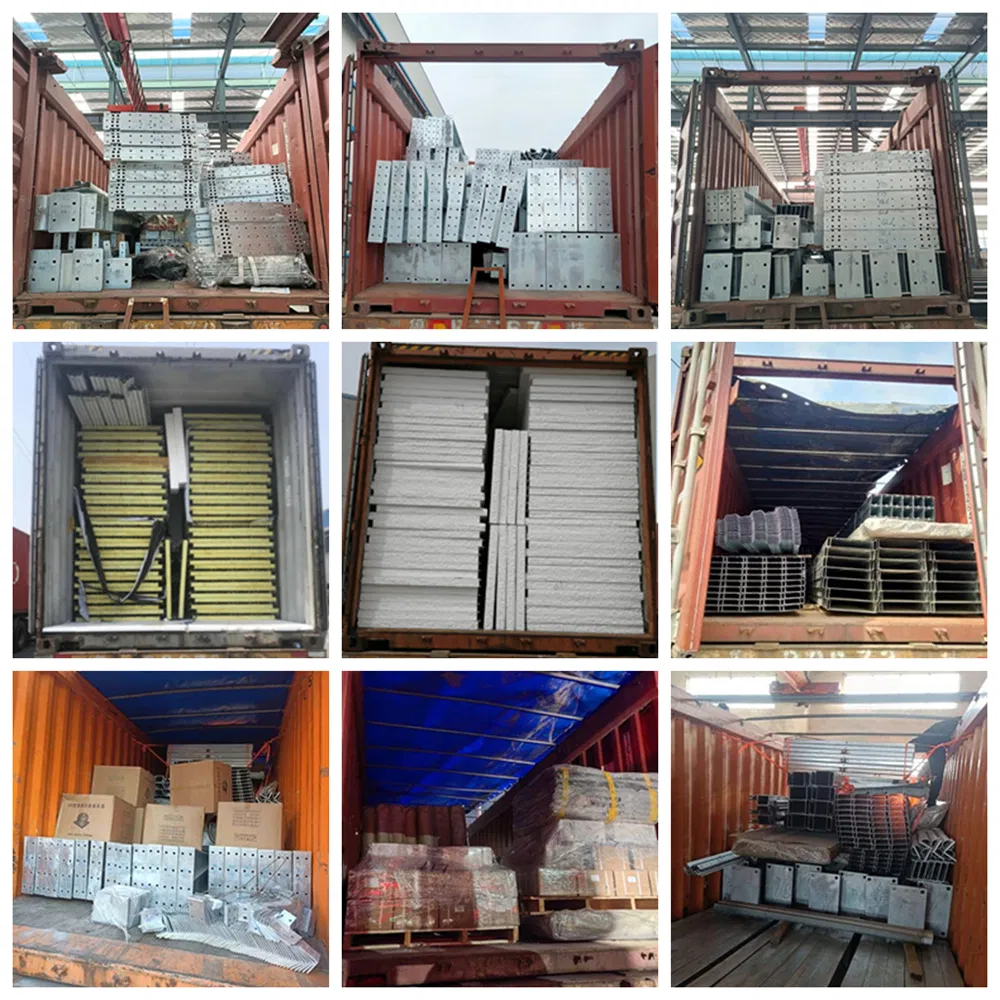

Prefabricated steel structure container loading

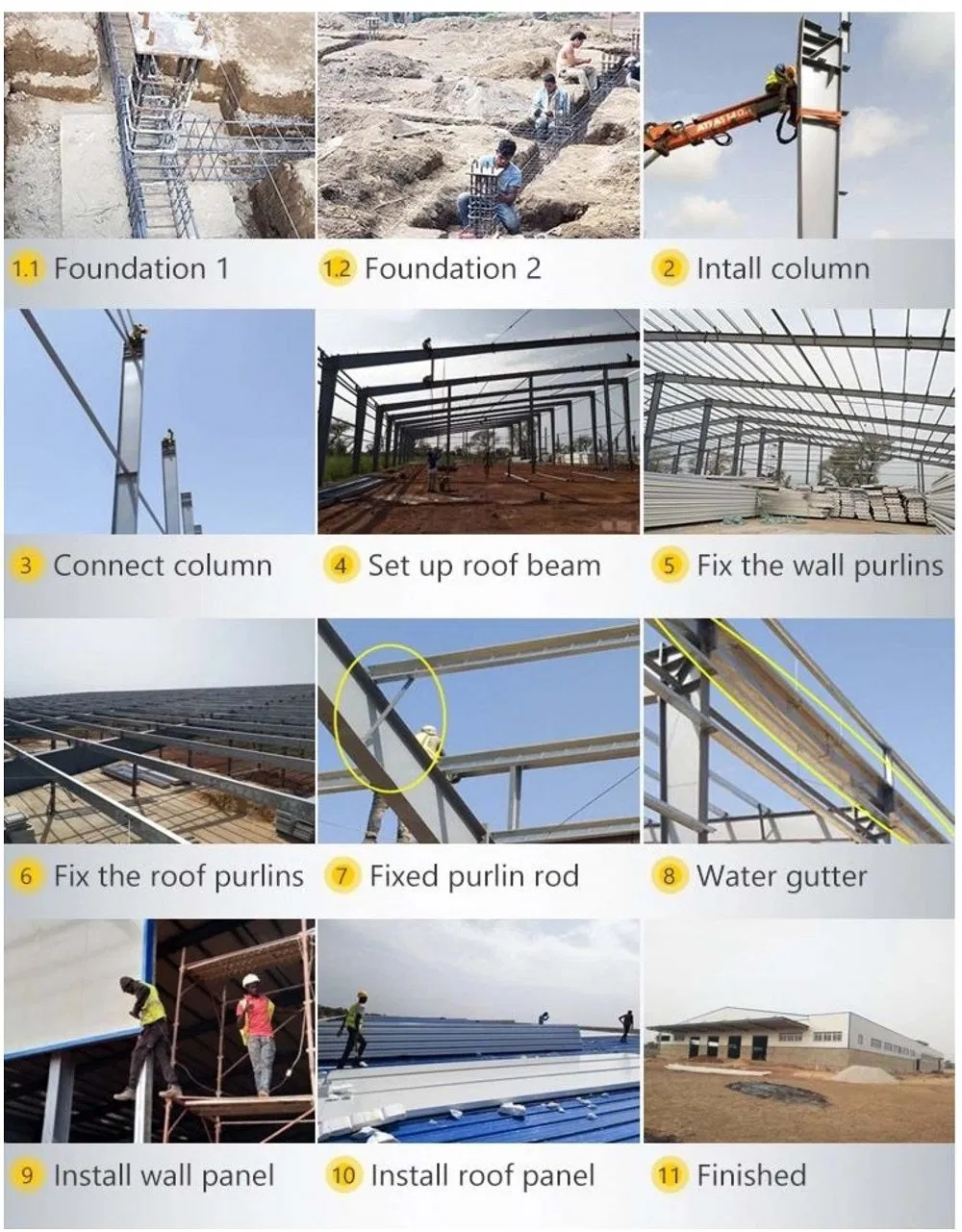

Installation Guides

Structural Building Advantages

Quick Assembly: Easy to assemble and dismantle with basic construction tools.
Waterproof Performance: Engineered drainage flashing systems without extra sealing coats.
Fire Safety: Rock wool core sandwich panels offer excellent fireproof ratings.
Thermal Efficiency: Insulated sandwich cladding limits heat transfer.
Durability: Stable load-bearing structure with a design life of over 50 years.
Logistics: Highly compressed bundle structures optimize container cargo space.
Aesthetic Choice: Customized colors and profile shapes matching design demands.

Frequently Asked Questions

? Is your business a factory or a trading company?

We are a direct manufacturer. This allows us to offer highly competitive pricing while maintaining strict quality control throughout the engineering and fabrication processes.

? What quality assurance do you provide and how do you control quality?

We conduct self-inspection audits at every step of design and manufacturing. Third-party testing services (such as SGS, BV, and QIMA) are also welcome and accommodated prior to shipment.

? Do you offer guiding installation services on site overseas?

Yes, we can send professional technical engineers to supervise and guide installation on site overseas. Our team has successfully managed installations in countries worldwide, including Iraq, South Africa, Algeria, and Ghana.

? Which markets are your steel buildings designed for?

We engineer and ship worldwide, with key markets including Europe, Africa, the Middle East, Southeast Asia, Australia, New Zealand, and South America.

? What standard design codes do you support?

We support various international standards based on client preferences, including American standards (ANSI/AISC 360-05), European standards (EN1090), and Australian standards (AS4100-1998).

? What parameters are needed to request a customized quote?

Please provide the project location, building size (Width x Length x Height), usage requirements, local environmental loads (wind speed, snow load, seismic parameters), preferred wall/roof insulation material, and access requirements (door/window layout).
