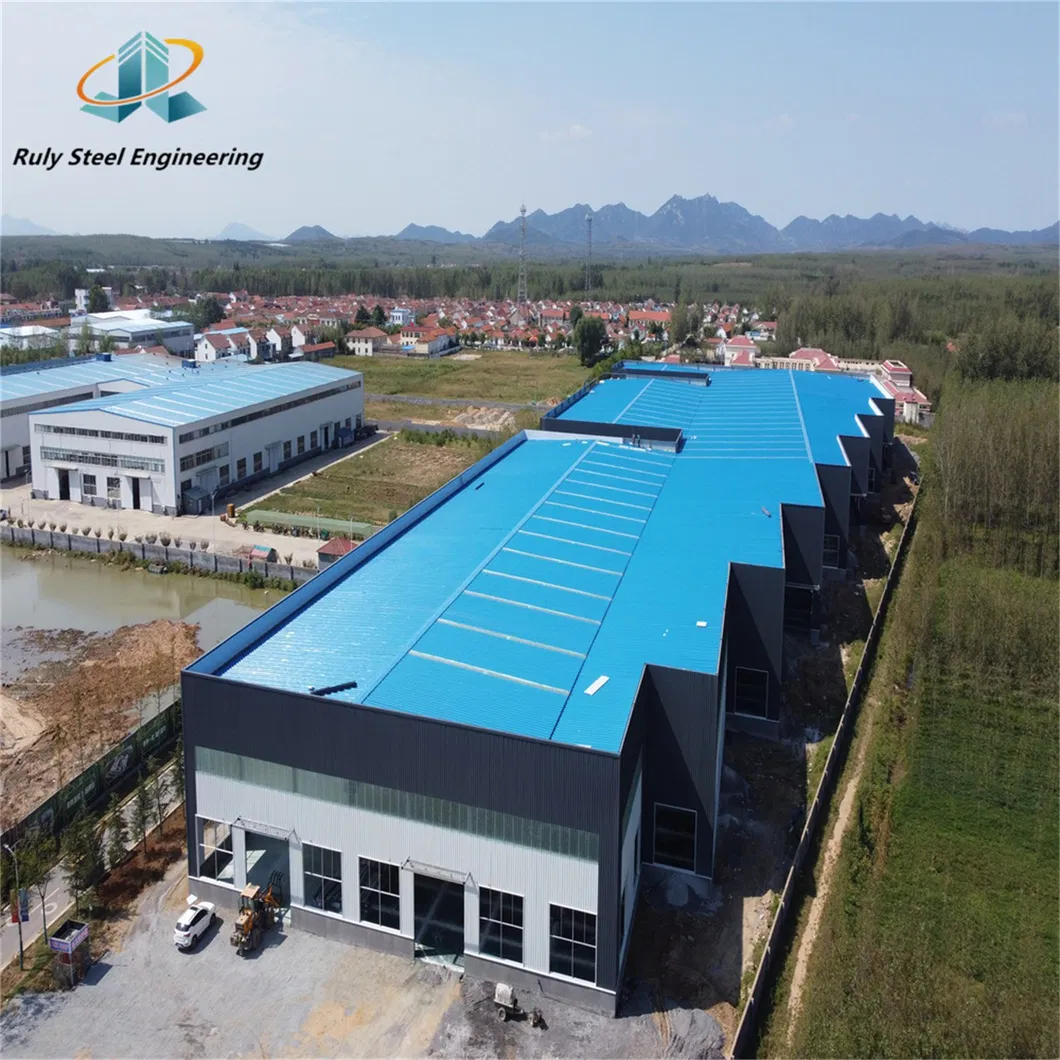

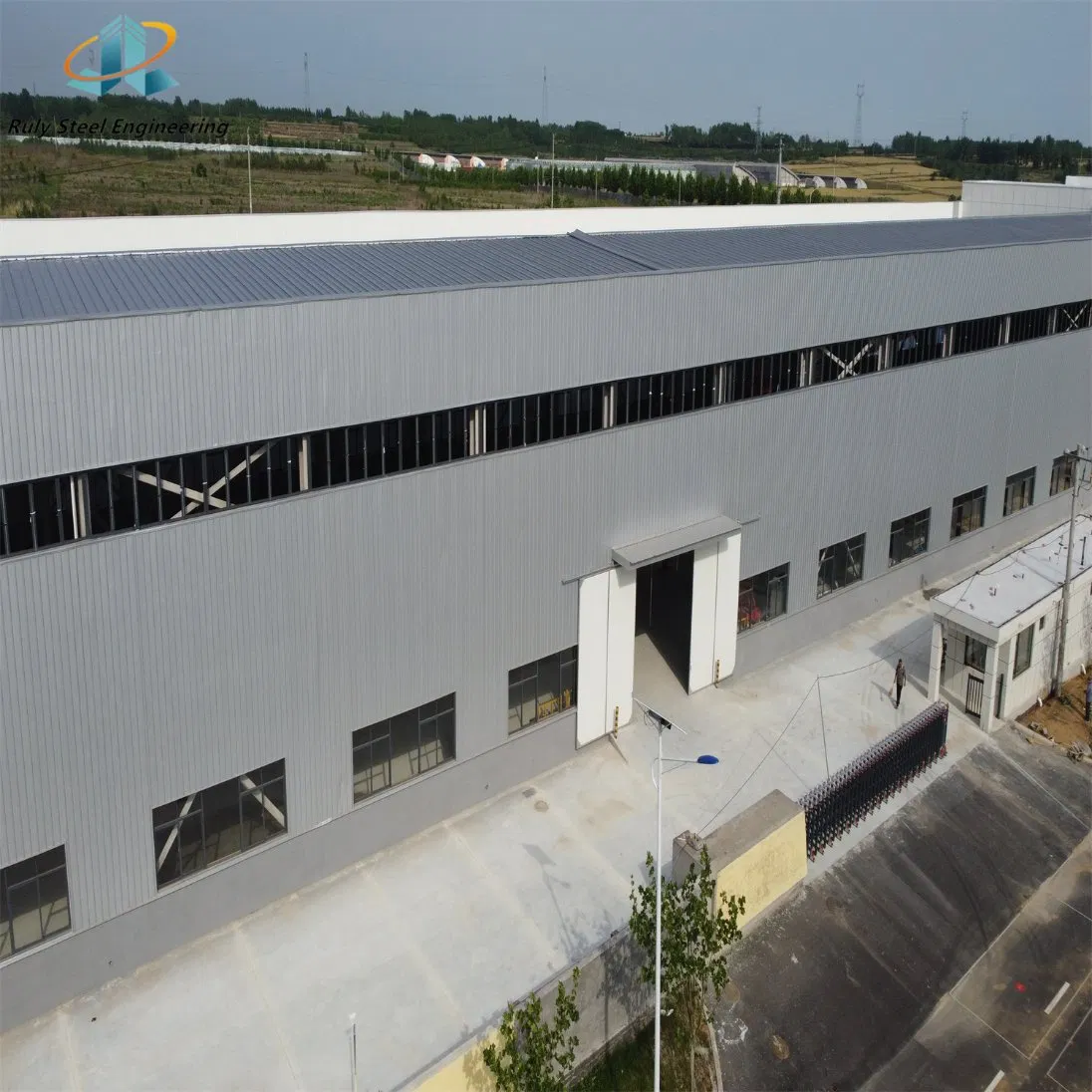

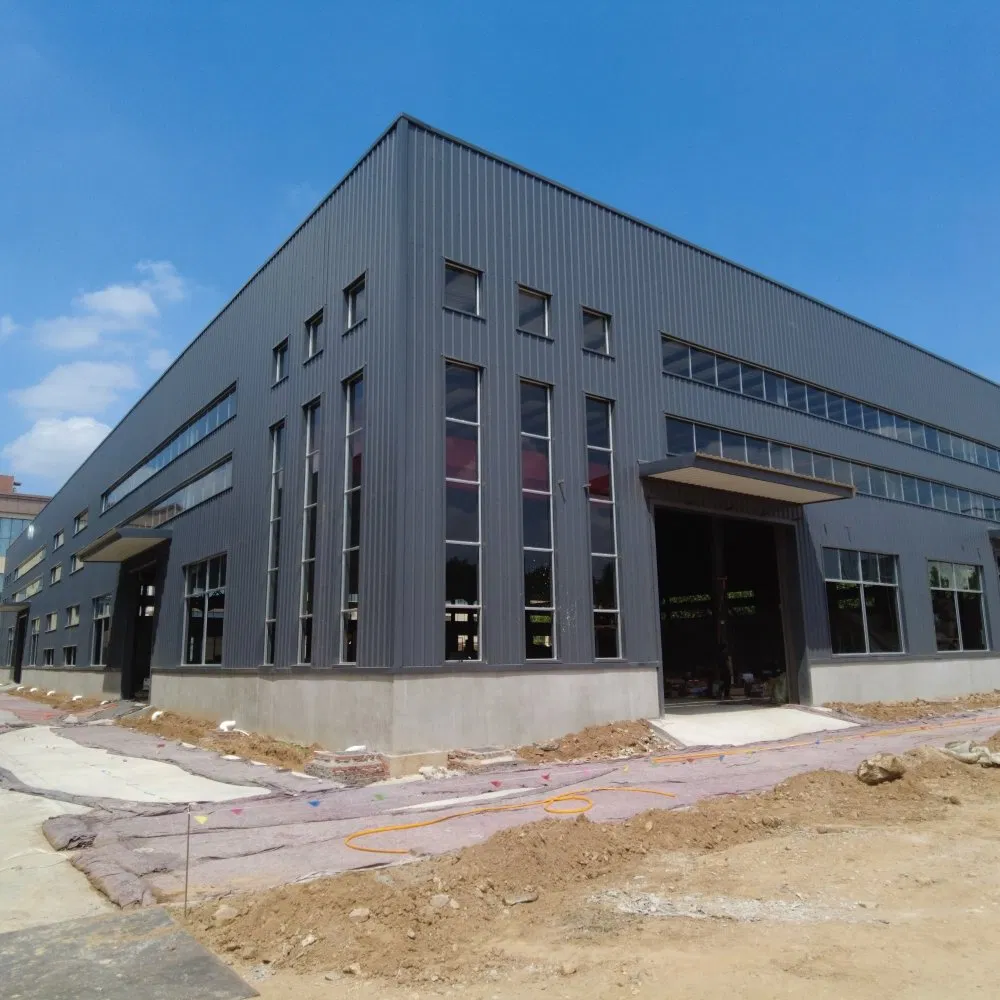

The main load-bearing component of industrial steel warehouse building is steel structure. It includes pillars, top beams, basements and supporting systems. It also includes wall and roof purlins. Q345B steel for the main frame and Q235B steel for the support system. Monochrome metal panels are used for the walls and roof. Use sandwich panels according to local temperature conditions. When calculating the quotation for a steel structure warehouse, dimensions are essential, including length, width and height. Local wind speed and snowfall will also affect construction costs.
| Item name | Specification | Material Parameter | Technical Treatment |
|---|---|---|---|
| Column | H shape, Box, steel pipe, Hot rolled sheet | Q235B, Q345B | Paint or Hot dip galvanized |
| Beam | H shape, steel Truss, Hot rolled sheet | Q235B, Q345B | Paint or Hot dip galvanized |
| Bracing | Steel rod, Steel pipe, Angle steel | Q235B, Q345B | - |
| Purling | C or Z shape, purling Thickness: 1.8mm~3.0mm | Q235B, Q346B | Hot dip galvanized |
| Wall and roof panel | EPS, Rock wool, Pu, Glass wool Sandwich panel or Single sheet | Steel T=0.426~0.8mm, insulation T=50~150mm | Alu-zinc 150g, Fluorocarbon paint |
| Door | Sliding or rolling door | Steel or Aluminum sheet, T=1.0~1.5mm | Paint or Hot dip galvanized |
| Window | alloy-Glass, Aluminium alloy-shutter | T=1.0~2.0mm | Aloy |
| Lighting panel | FRP, T=1.5mm or T=1.8mm | Coefficient of thermal expansion: 2.2x10-5/cm/cm/ºC | Light transmittance 85% |
| Ventilator | Turbine ventilator, and electric type | Steel, stainless steel, PC | Paint or Hot dip galvanized, 304 |
| Gutter | Galvanized or stainless steel plate | T=2.0mm | Hot dip galvanized, 304 |
| Downpipe | PVC pipe, Color steel pipe T=0.5mm | Φ110, 160, 200 | Paint |
| Bolt | Ordinary, high strength | 10.9S, 4.8s | Hot dip galvanized |
| Anchor bolt | Steel rod M24, M27 M30 | Q235B | - |

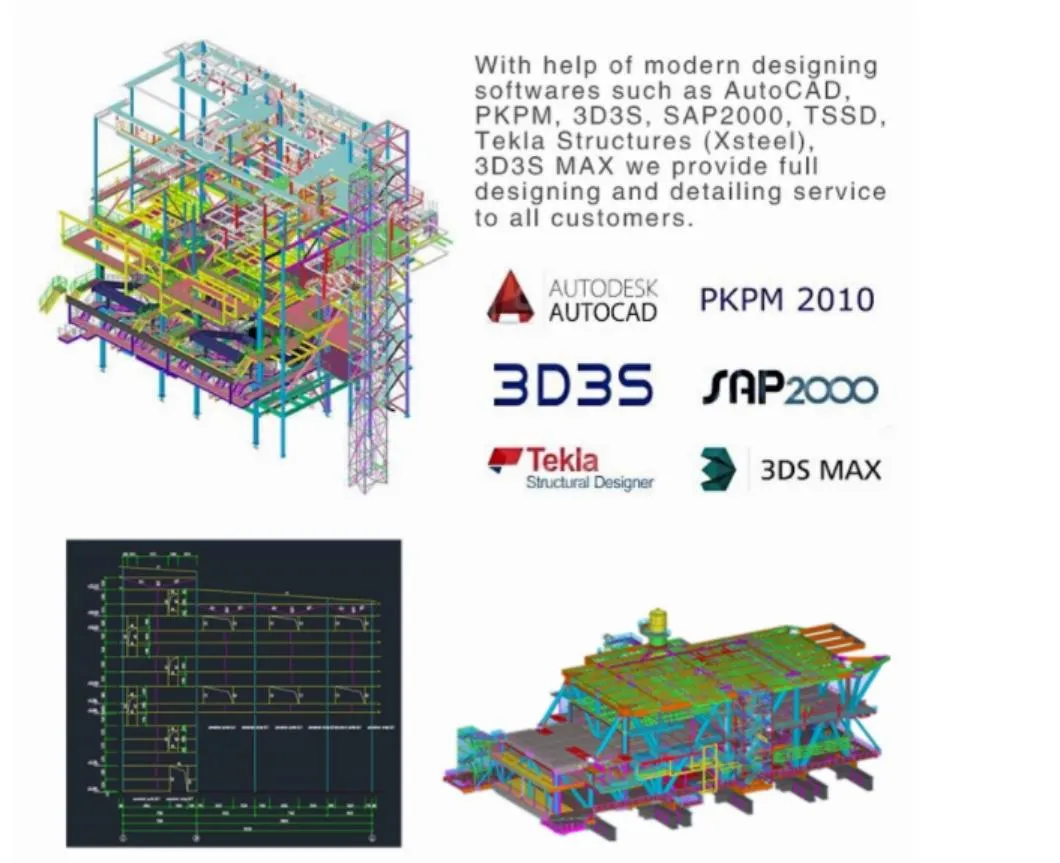

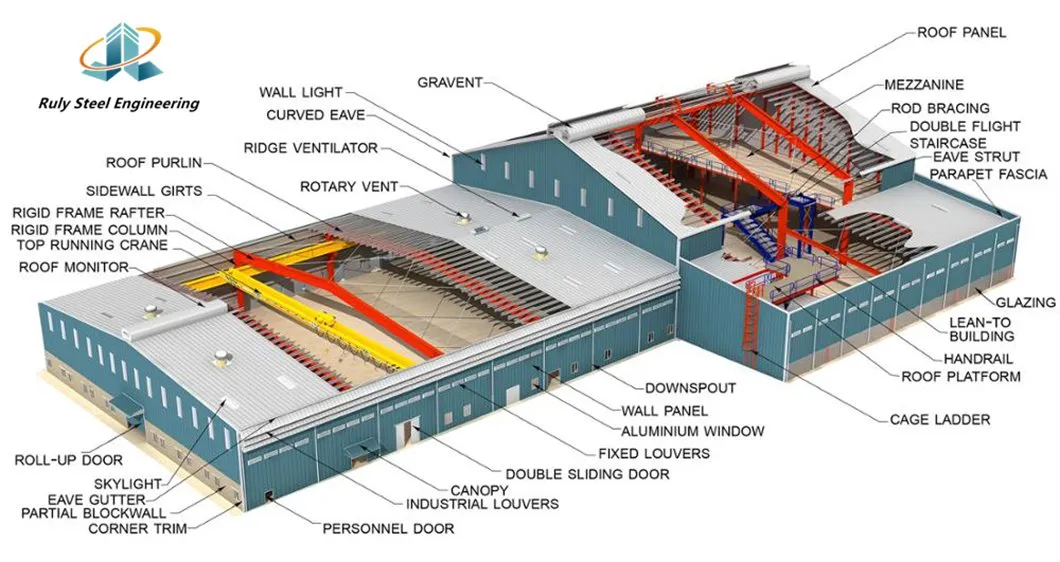

For such project, we will design the preliminary layout drawing, 3D Tekla model and installation drawing to contribute to the completion of the project.
| No. | Required Parameter Details | Fill Information |
|---|---|---|
| 1 | Location (where will it be built?) | _____country, area |
| 2 | Size: length * width * height | _____mm * _____mm * _____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, the metal steel sheets will be ok. The cost of the latter will be much lower. |
| 8 | door quantity & size | _____units, _____(width)mm * _____(height)mm |
| 9 | window quantity & size | _____units, _____(width)mm * _____(height)mm |

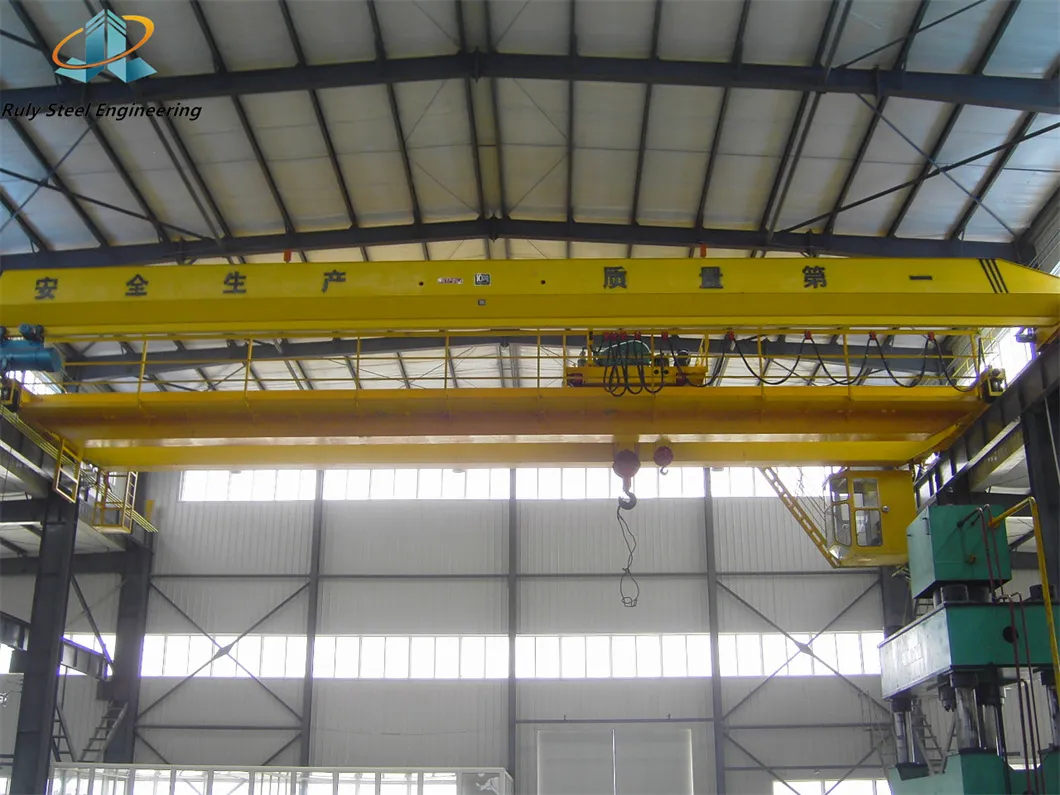

| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
High-strength Q345B structural steel is used for the columns and top beams, while Q235B carbon steel is implemented for the support systems to guarantee excellent stability and seismic resistance.
Our steel structural warehouses and workshops are fabricated using premium materials and anti-corrosive treatments, providing a service life of up to 50 years under standard environmental conditions.

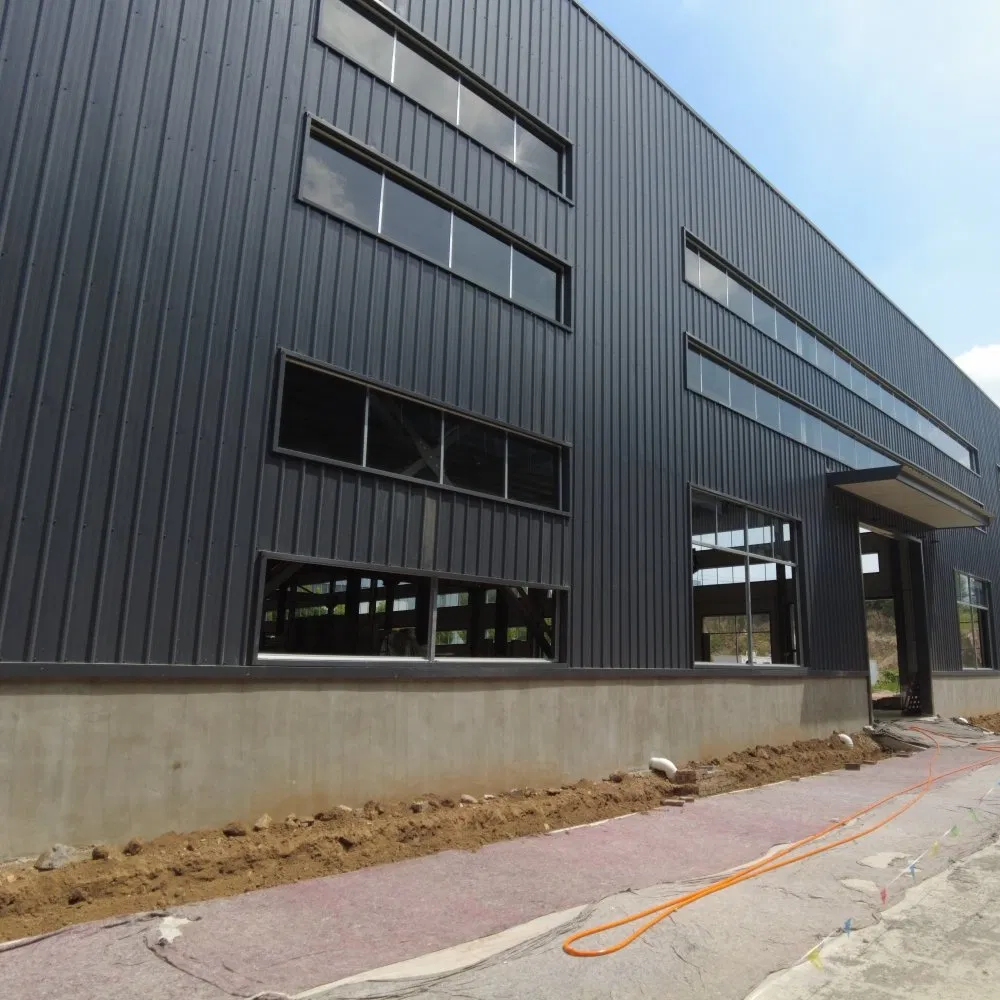

We supply highly insulated sandwich panels (EPS, Rockwool, Glasswool, or PU) or single metal cladding sheets, depending on the local thermal and climatic requirements of your construction site.
All main steel sections undergo Sa. 2.5 grade shot blasting to remove rust and scale, followed by painting or hot-dip galvanization for premium rust and corrosion protection.
Yes, we provide preliminary layout designs, detailed 3D Tekla models, and complete shop assembly drawings. Engineering assistance and guidance on-site can also be arranged.
We customize structural elements specifically for your location, factoring in local regulations, seismic ratings (anti-earthquake level), maximum wind speeds, and maximum snow loads.
