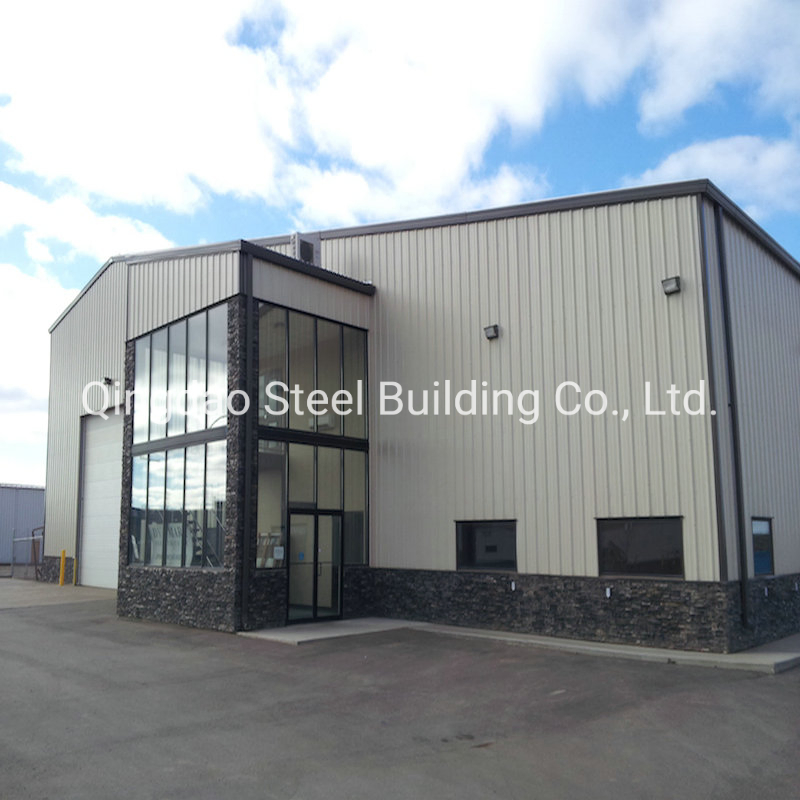

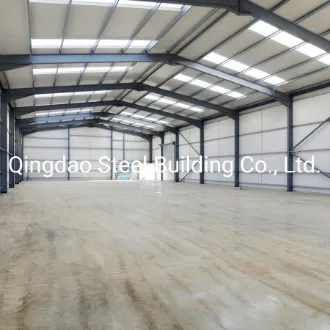

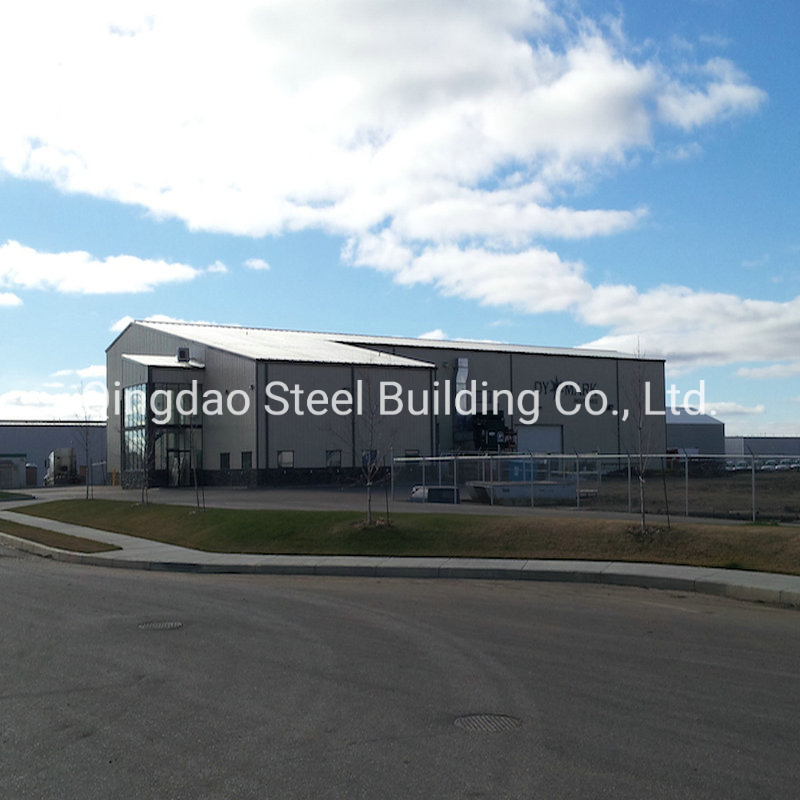

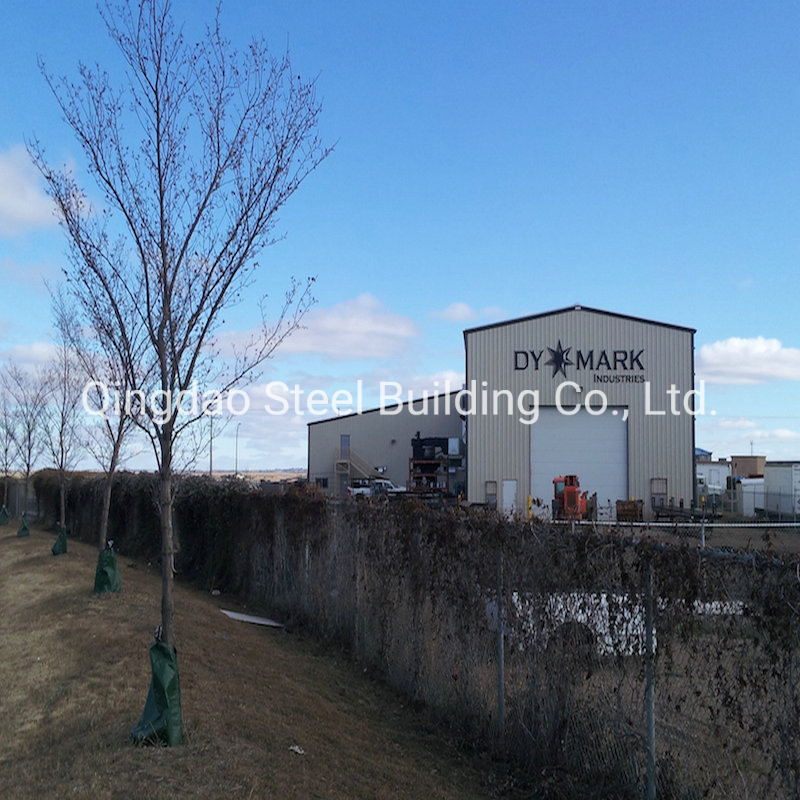

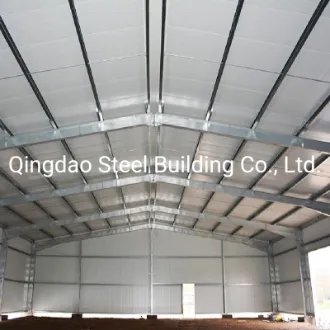

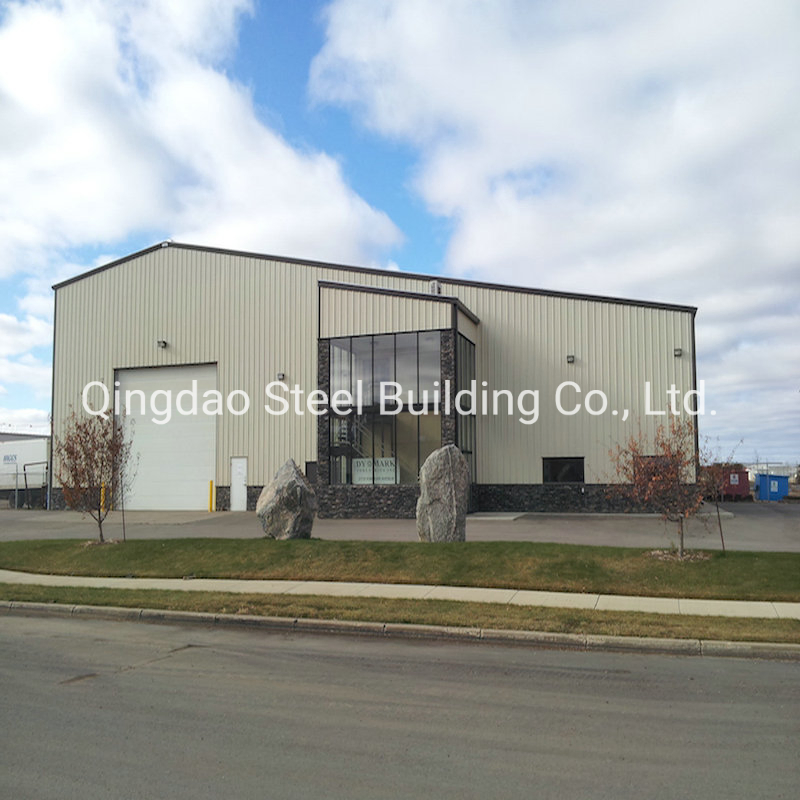

Prefabricated Steel Structure building, steel Industrial Construction Modular Warehouse Workshop building, Prefabricated steel structure Building.
| American Standard portal frame building | Europe standard I beam frame building | Australia standard H beam frame building |
|---|---|---|
|
Suit for:
1) ANSI/AISC 360-05 Standard demand
2) Heavy snow and wind region.
|
Suit for:
1) EN1090-1:2009+A1:2011; EN1090-2:2018 Standard demand
2) Other English, French, and Spanish regions.
|
Suit for:
1) AS4100-1998 Standard demand
2) Australia, New Zealand and nearby region.
|
We have exported abroad for more than 15 years. The steel structure can be designed according to the following standards:
EN1090 EXC2 - CE Approved. Already exported to Norway, Iceland, France, Spain, Romania, Czech Republic, Croatia, etc.
EN1090 BS5950-2 GB etc. - CE, BV, SGS Approved. Already exported to Mauritania, Senegal, Côte d'Ivoire, Ghana, Nigeria, Cameroon, Congo, Angola, Zambia, South Africa, Malawi, etc.
EN1090 BS5950-2 GB etc. - CE, BV, SGS Approved. Already exported to Saudi Arabia, Oman, Qatar, Israel, Lebanon, Jordan, etc.
BS5950-2 GB etc. - BV, SGS Approved. Already exported to Myanmar, Vietnam, Malaysia, Brunei, Philippines, Cambodia, etc.
AS-4100-1998 - SGS Approved. Already exported to Australia (Melbourne, Sydney, Adelaide, Queensland) and New Zealand.
AISC 360-16 EN1090 BS5950-2 GB etc. - BV, SGS Approved. Already exported to United States, Mexico, Dominica, Paraguay, Colombia, Chile, Brazil, Argentina, etc.
Please provide details regarding the following questions to help us design and quote your steel structure building:
| Item | Popular Size | Popular Height | Coverage | Gate Size |
|---|---|---|---|---|

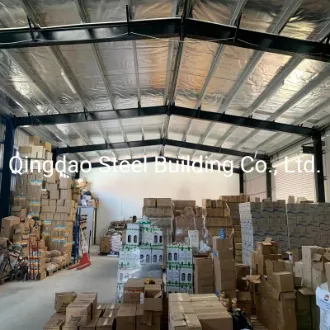

| Steel Warehouse | 20x30m | 5m | Single corrugated steel sheet | 4x4.5m |
| Steel Workshop | 20x50m | 6m | Insulated roof with single steel sheet wall | 4.5x5m |

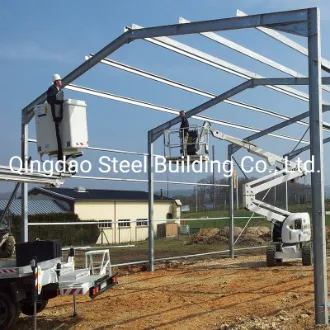

| Farm Storage | 16x36m | 4m | Single steel sheet or roof only | 4x3.5m |

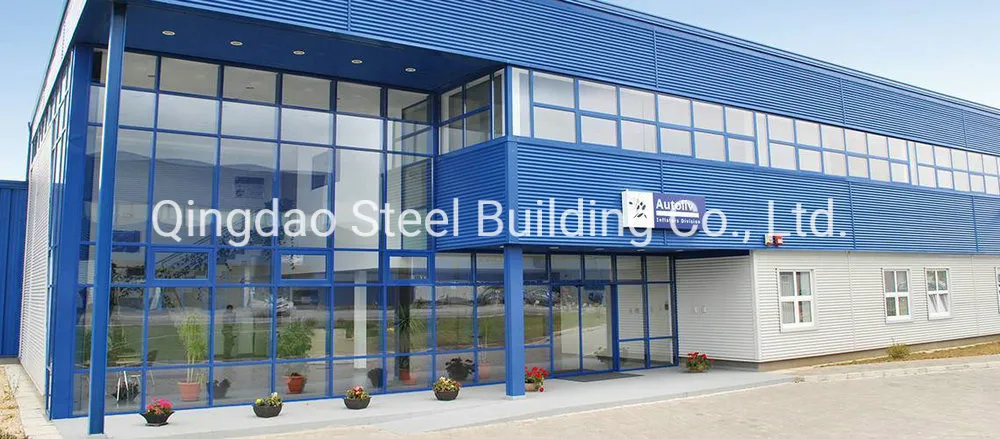

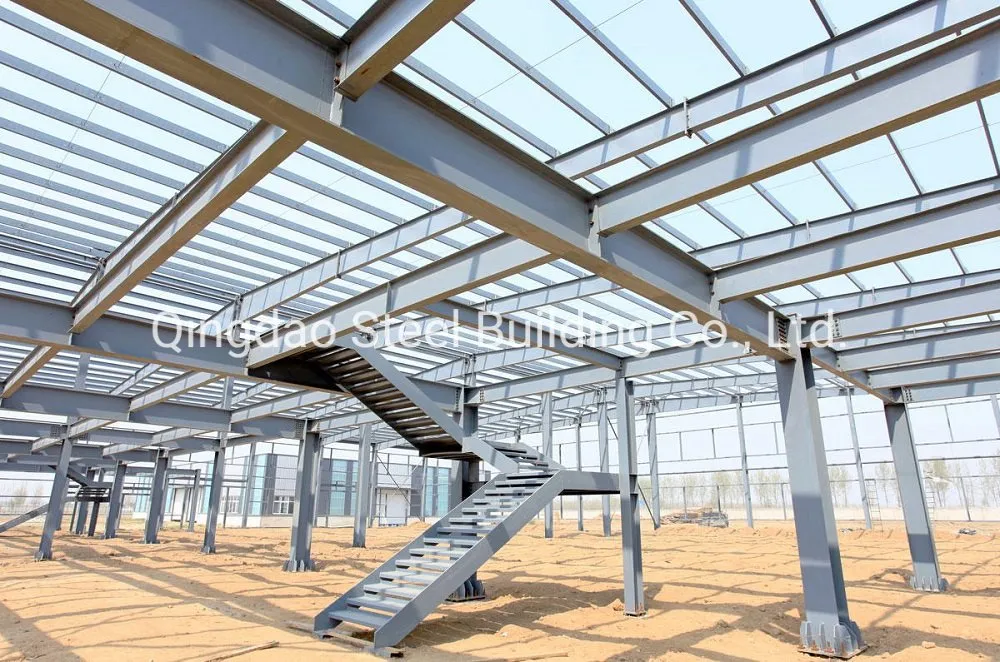

Multi-Floor Steel Structures: For commercial applications, prefabricated steel provides an efficient, strong, and durable solution. They require minimal maintenance and are built to last. We offer clever, practical, and aesthetically appealing commercial building designs at competitive pricing.

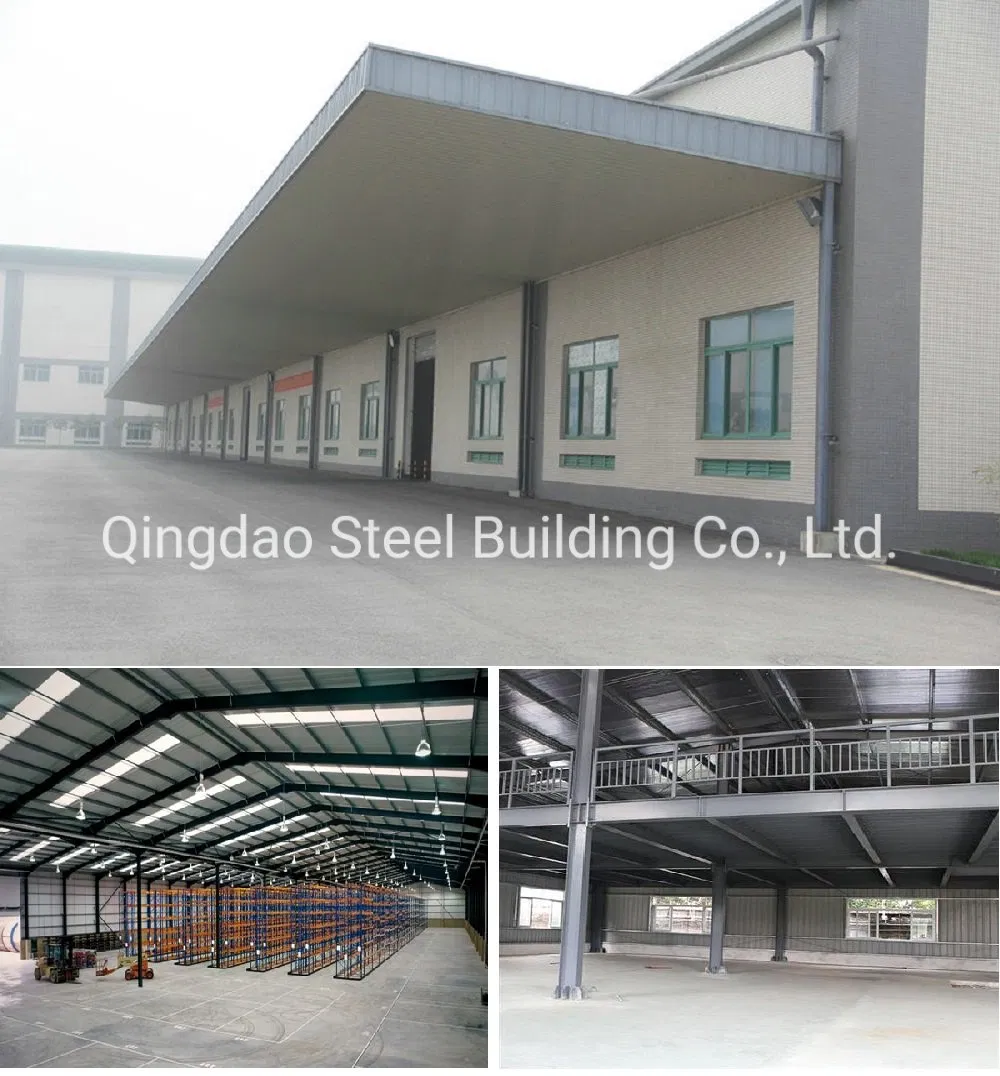

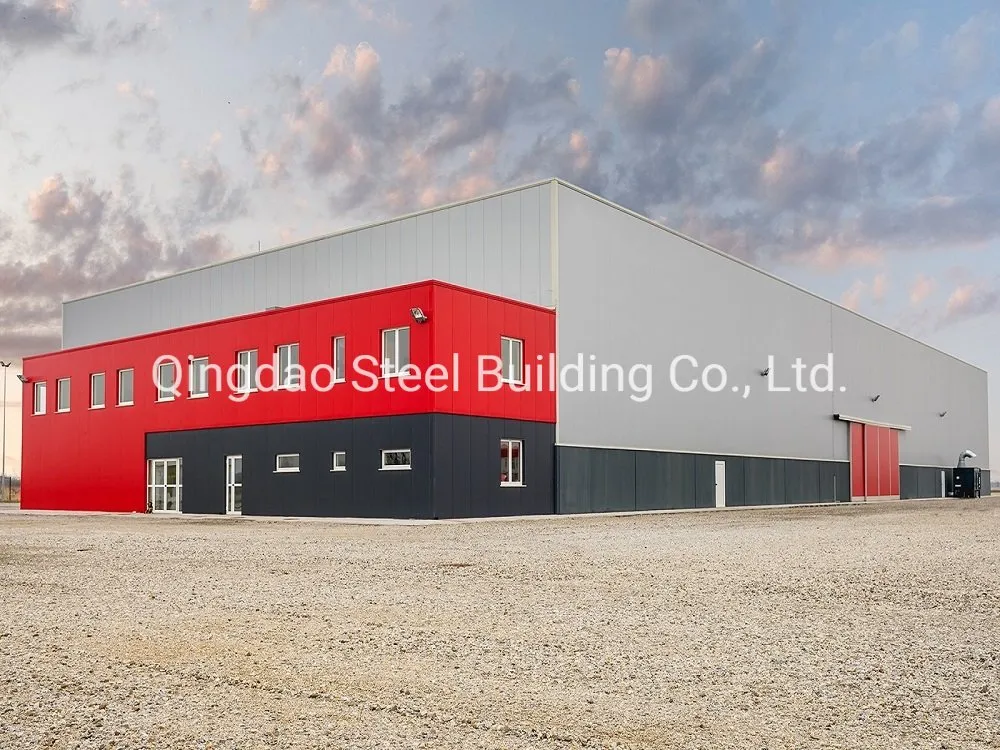

Steel Warehouse with Offices: Incorporating office spaces within a industrial warehouse or workshop layout is a common requirement. The offices can be configured along the main structure, internally, or span across multiple floors depending on your workflow requirements.

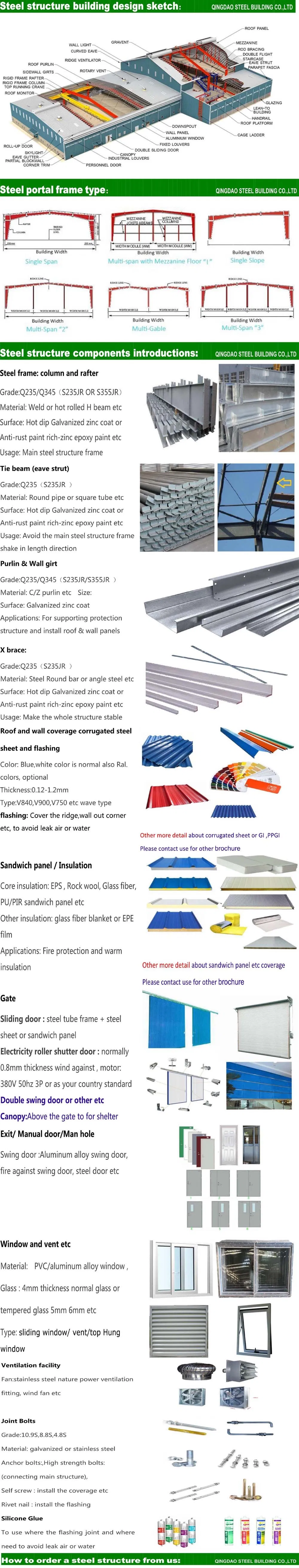

| Specification Component | Standard Configuration Details |
|---|---|
| Application | Steel warehouse, steel building, steel workshop, hangar, sports hall, shopping mall, agricultural buildings (cow sheds, poultry houses). |

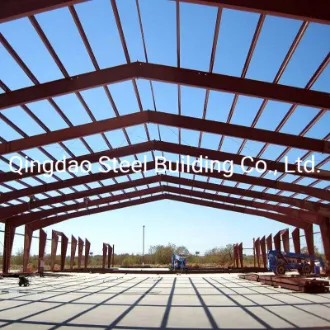

| Clear Span (Width) | 6~50m without middle columns. |
| Height | 2~20m. |
| Length | As per project requirements. |
| Material Grade | Q345 (S355JR) or Q235 (S235JR) steel or customized. |

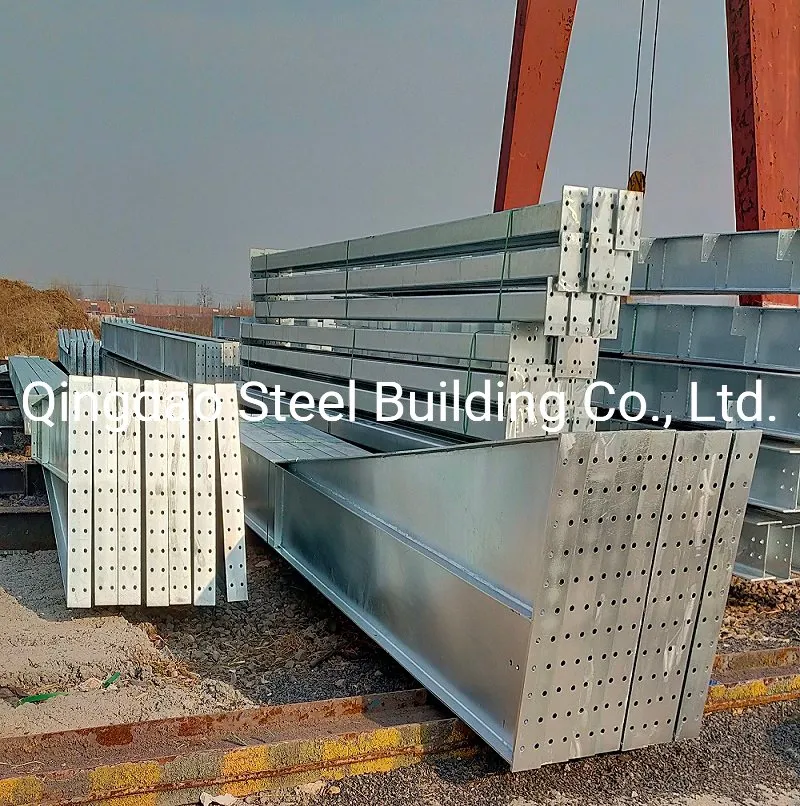

| Column & Rafter | Welded or Hot rolled H-beams. |

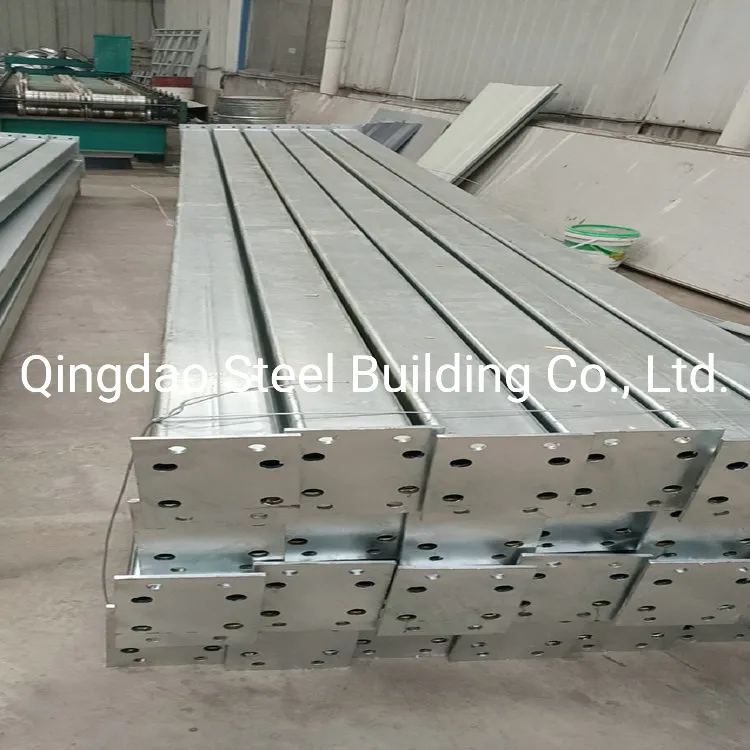

| Tie Beam | Round pipe, square tube, or customized. |

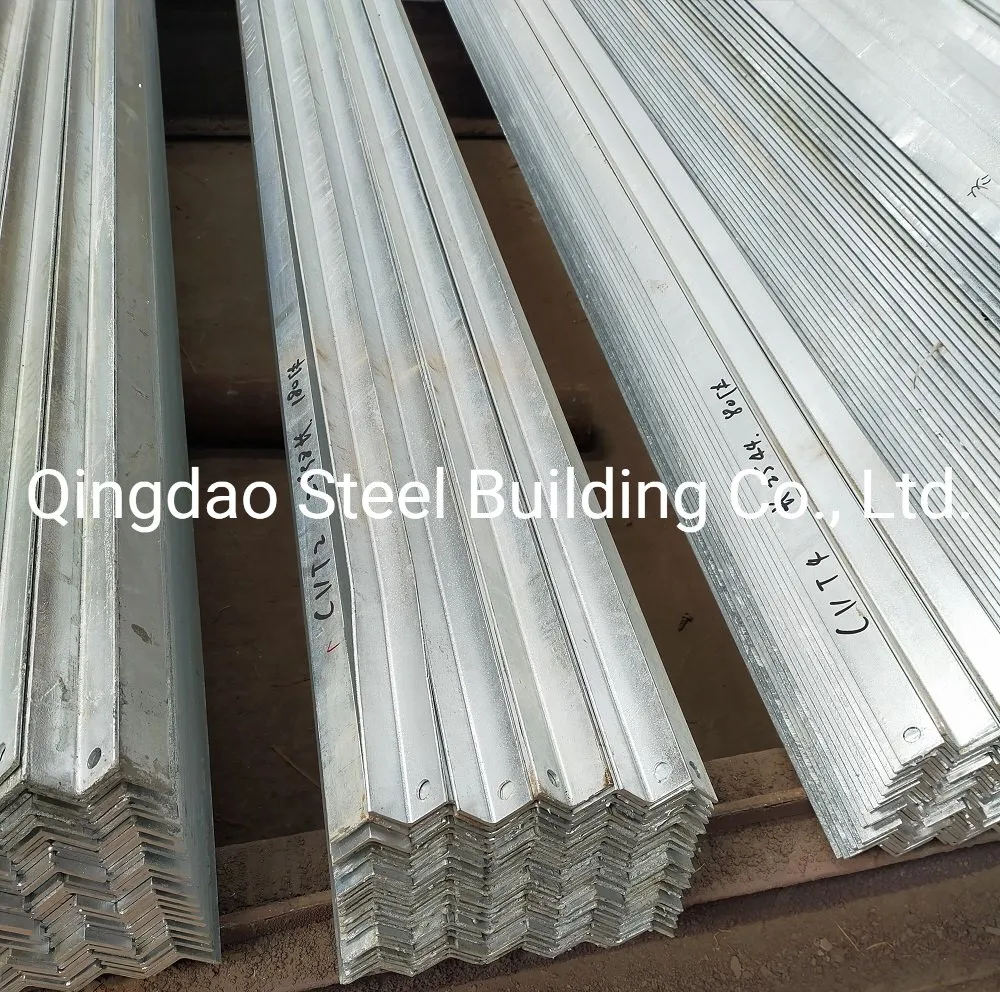

| X-Brace | Round steel bar, angle steel, or customized. |
| Purlin | C purlin, Z purlin (Thickness: 2.0mm, 2.2mm, 2.5mm, 3.0mm). |
| Sag Rod | Steel round bar, angle steel, C purlin, etc. |
| Wall & Roof Coverage | Single corrugated steel sheet (0.12 - 1.2mm); EPS, Rock wool, Glass fiber, or PU core foam sandwich panels (Thickness: 50mm, 75mm, 100mm, 150mm, 200mm). |
| Gates | Electric roller shutter door / Sliding door. |
| Exit Doors | Plastic-steel / Aluminum alloy swing door / Steel swing door. |
| Windows | Plastic-steel or Aluminum alloy frame (Sliding window / Ventilation / Top-hung). |
| Surface Treatment | Shot blasting with anti-rust paint / Rich-zinc epoxy paint / Hot-dip galvanization. |

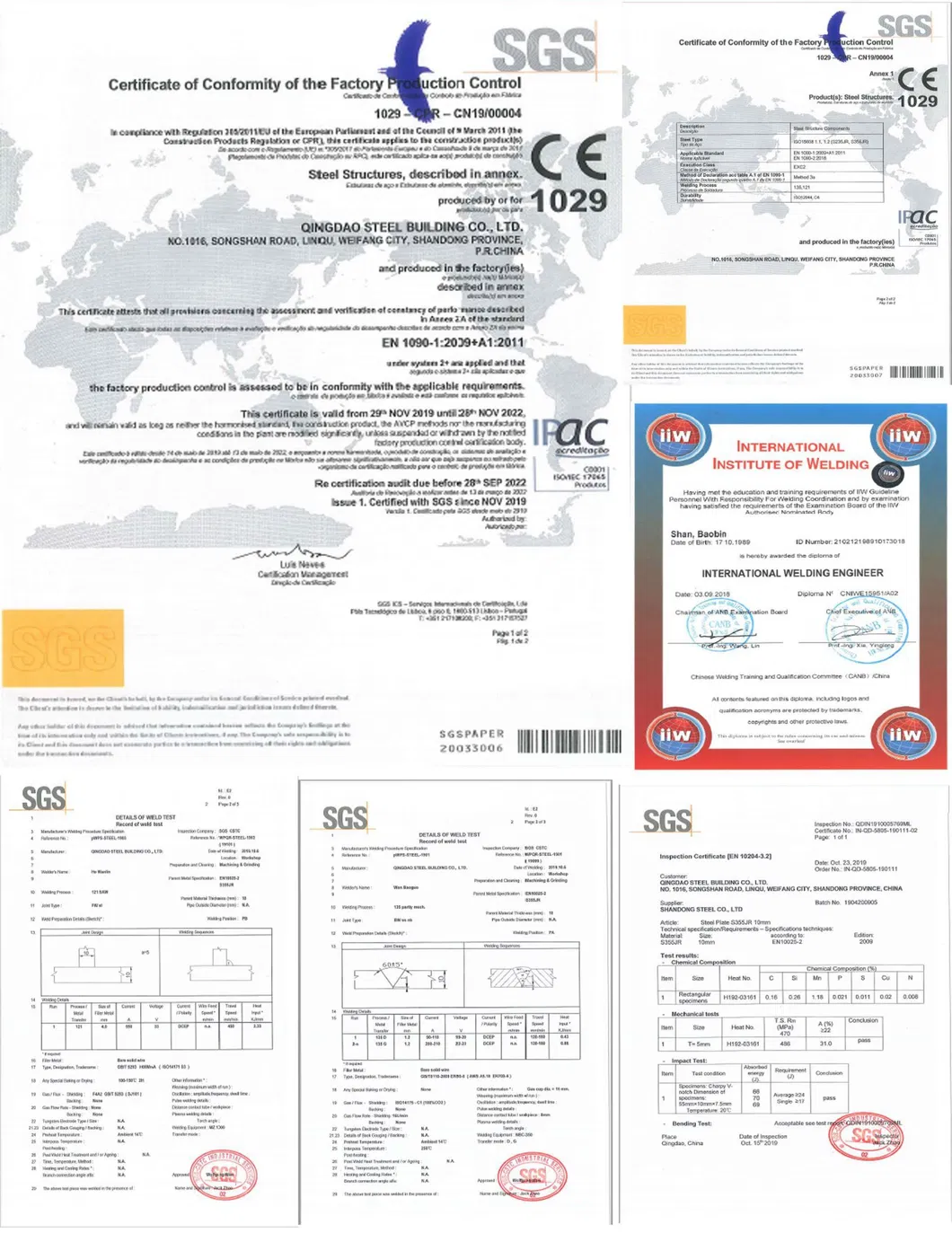

| Certificates | ISO9001, CE EN1090 EXC2, IWE, etc. |
| Quality Control | Third-party inspections accepted (SGS, QIMA, BV). |
| Cranes | 5MT, 10MT, 15MT, etc. |
| Other Accessories | Gutters, flashing trim, downspouts, ventilation fittings, skylight belts, anchor bolts, self-tapping screws. |

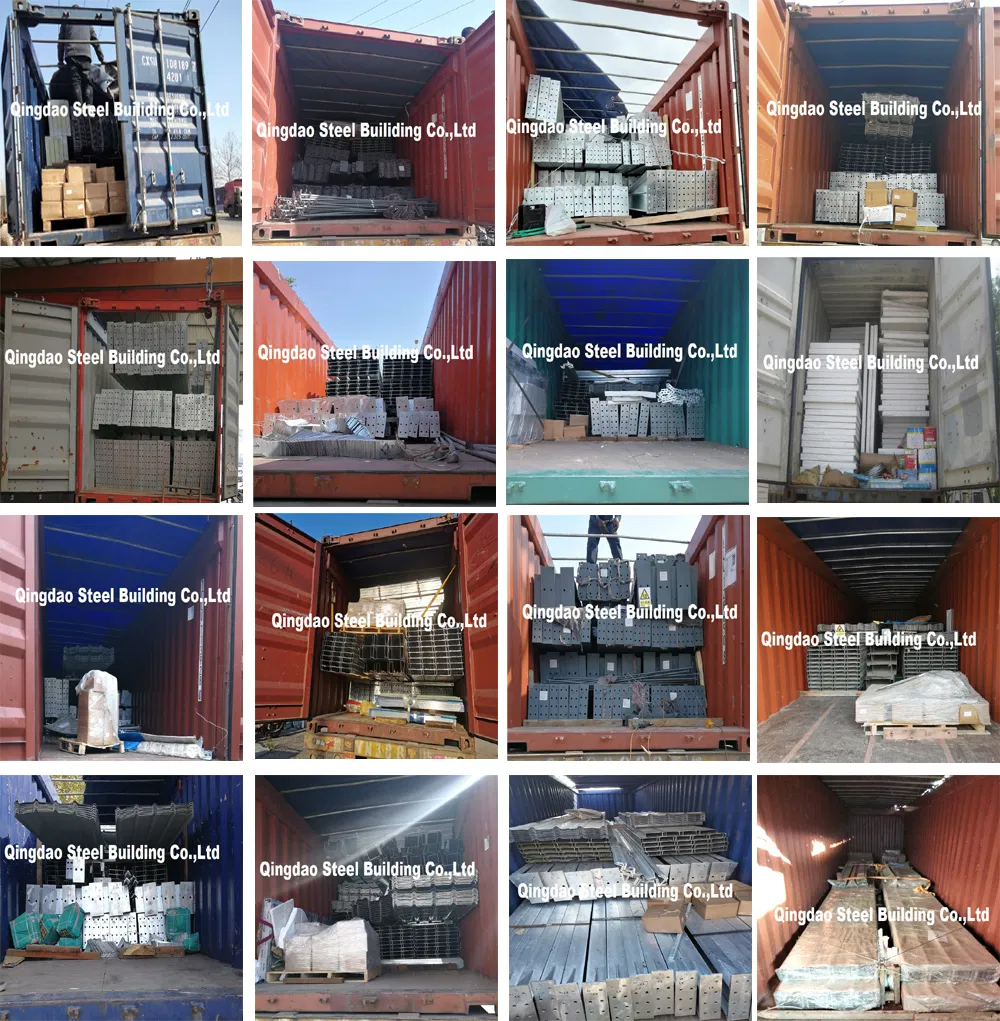

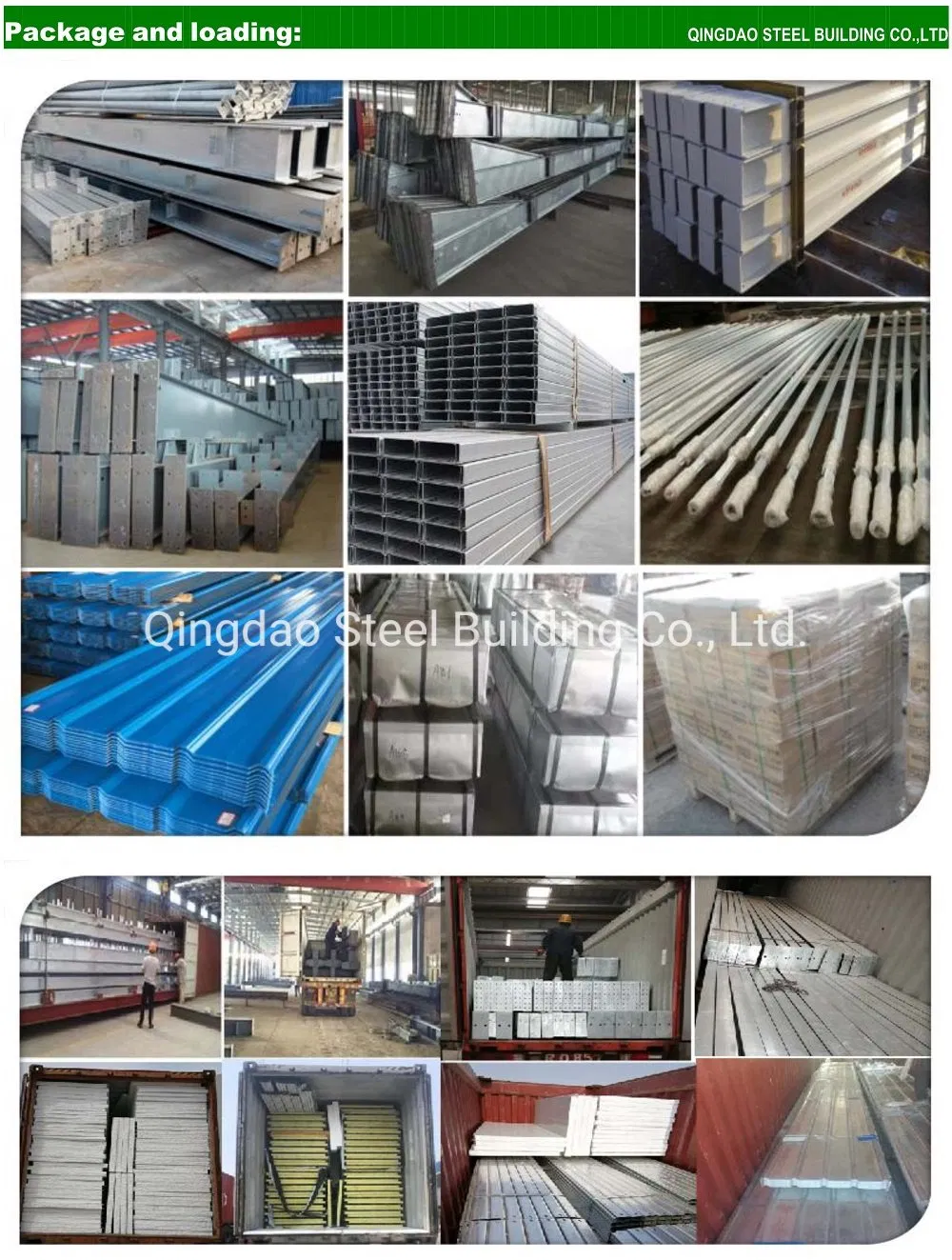

| Package | Main steel frame loaded in 40'OT containers; roof and wall panels loaded in 40'HQ containers. |

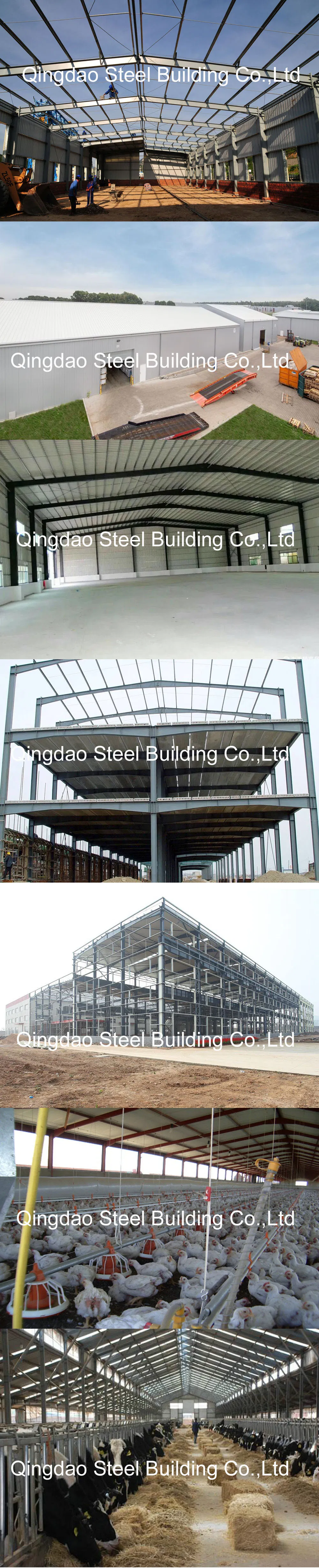

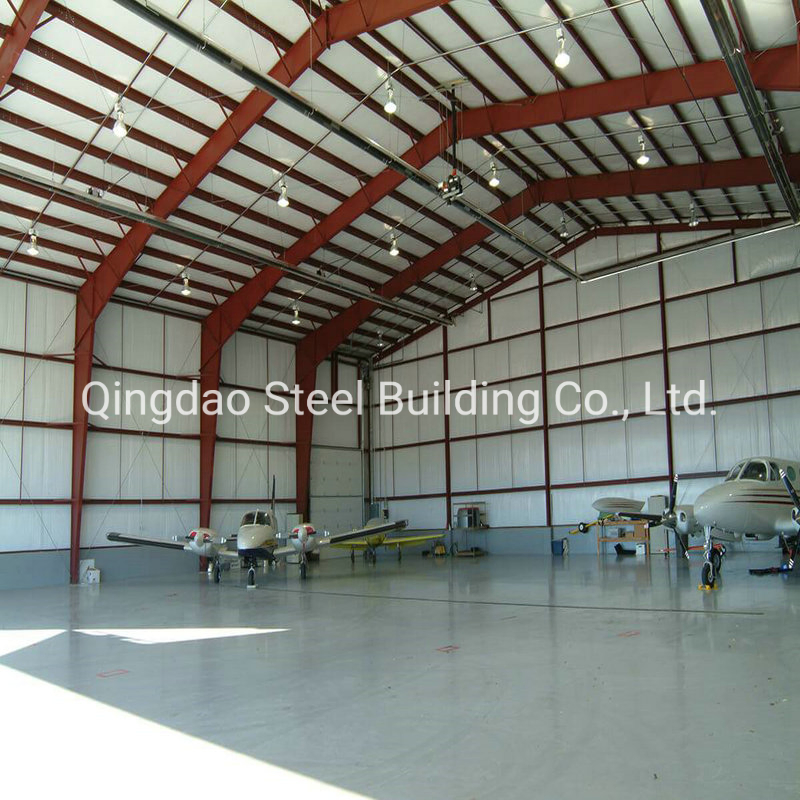

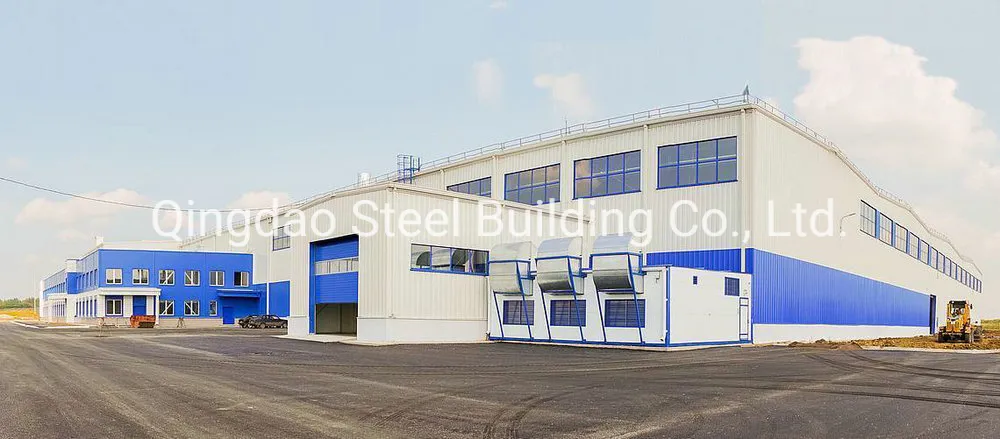

We are a dedicated manufacturer of premium steel structure buildings. Our portfolio covers a wide range of large-scale commercial buildings, aircraft hangars, platform stands, church buildings, riding arenas, sports halls, shopping malls, logistics centers, industrial processing plants, warehouses, workshops, and agricultural setups such as poultry houses and farm barns.

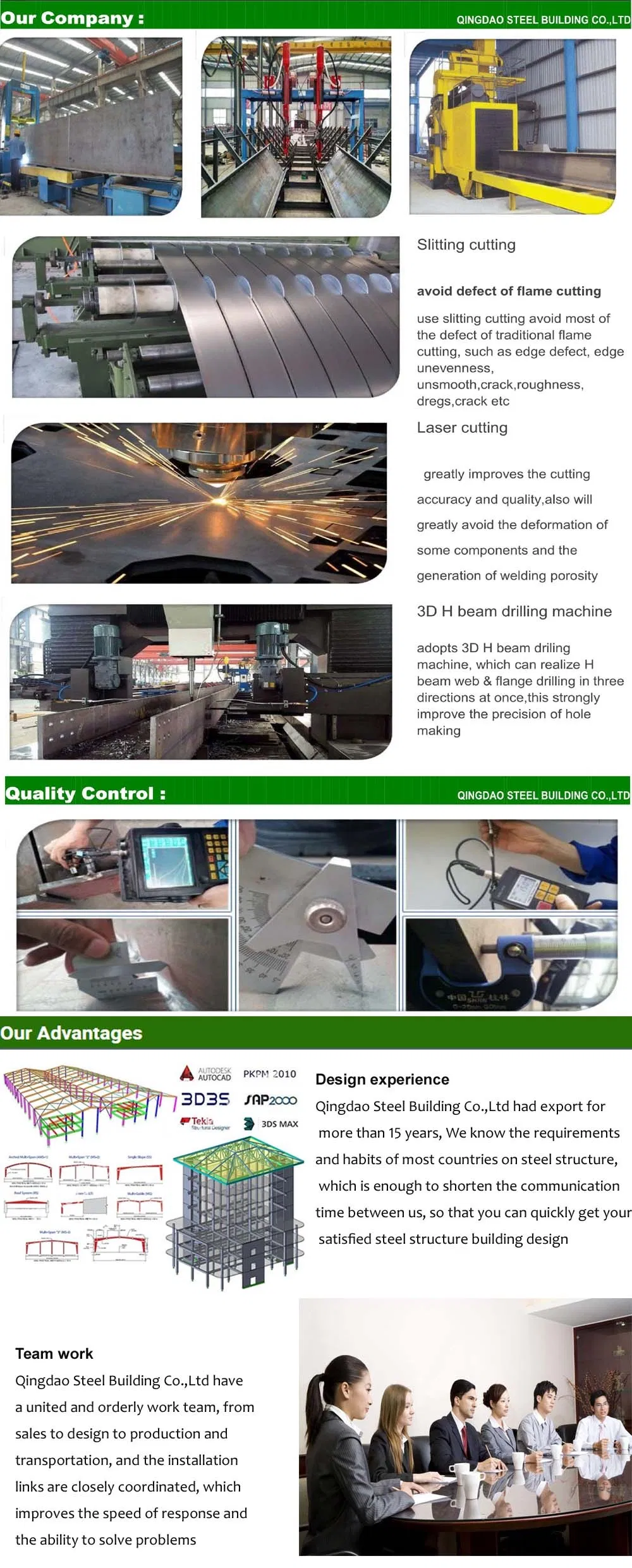

We operate two complete, advanced steel structure production lines. High-precision laser cutting and slitting processes eliminate edge defects typical of traditional flame cutting. The integration of 3D drilling machinery for H-beams guarantees precise hole alignments. Our C/Z steel purlin lines, profile corrugated steel plate lines, and sandwich panel production lines are fully optimized to serve diverse domestic and global structural demands.
Our annual manufacturing output reaches 30,000 tons of welded H-beams and steel beams, 8,000 tons of C and Z purlins, 100,000 square meters of sandwich panels, and 8,000 tons of corrugated steel sheets and coils.

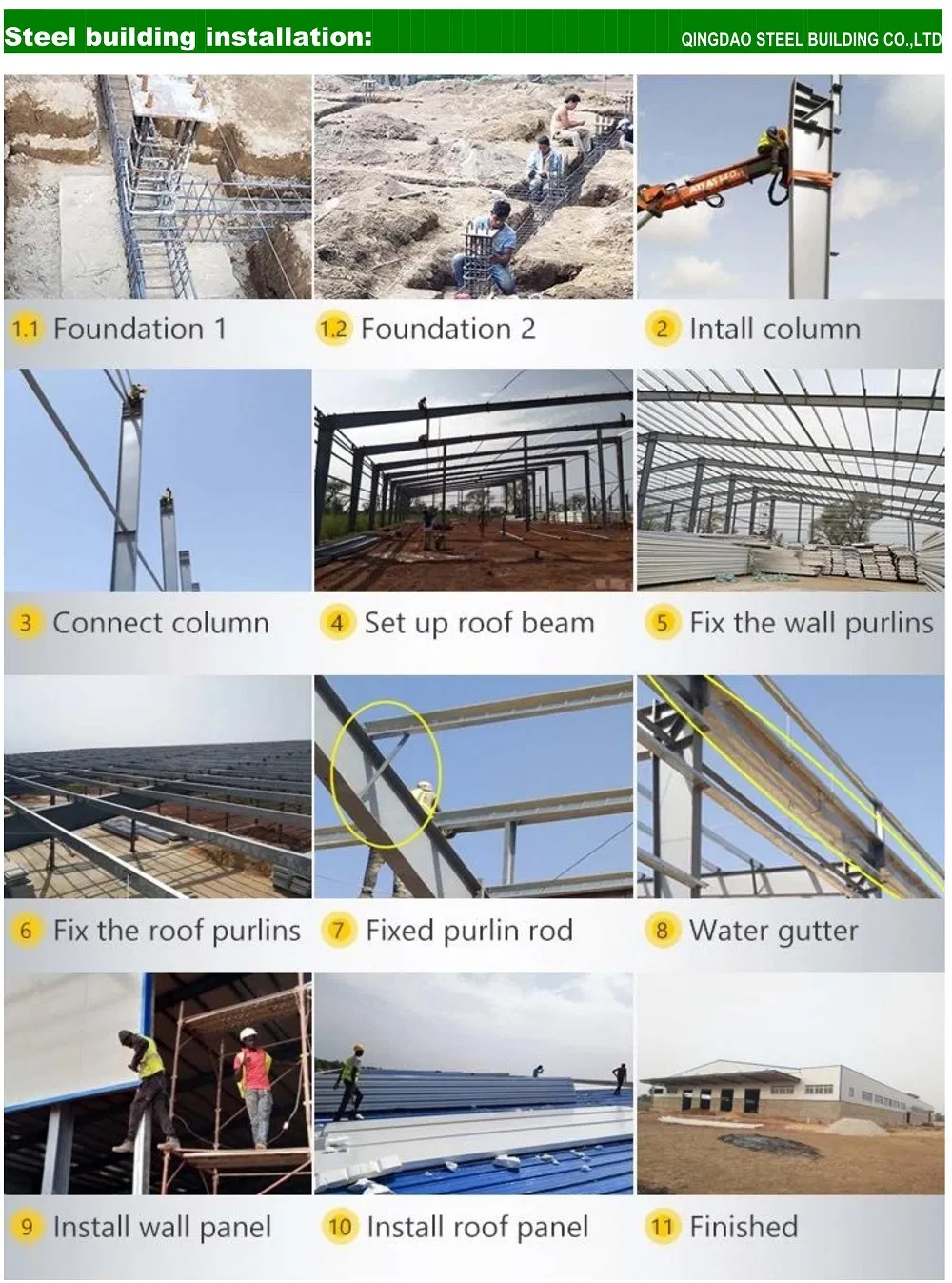

We support your project step-by-step: from pre-sale technical consultations and customized budget estimations, to design drawing packages, live production updates (via photos and videos), and factory quality reports during production. Post-sale, we extend complete technical support to ensure your building is constructed smoothly.
